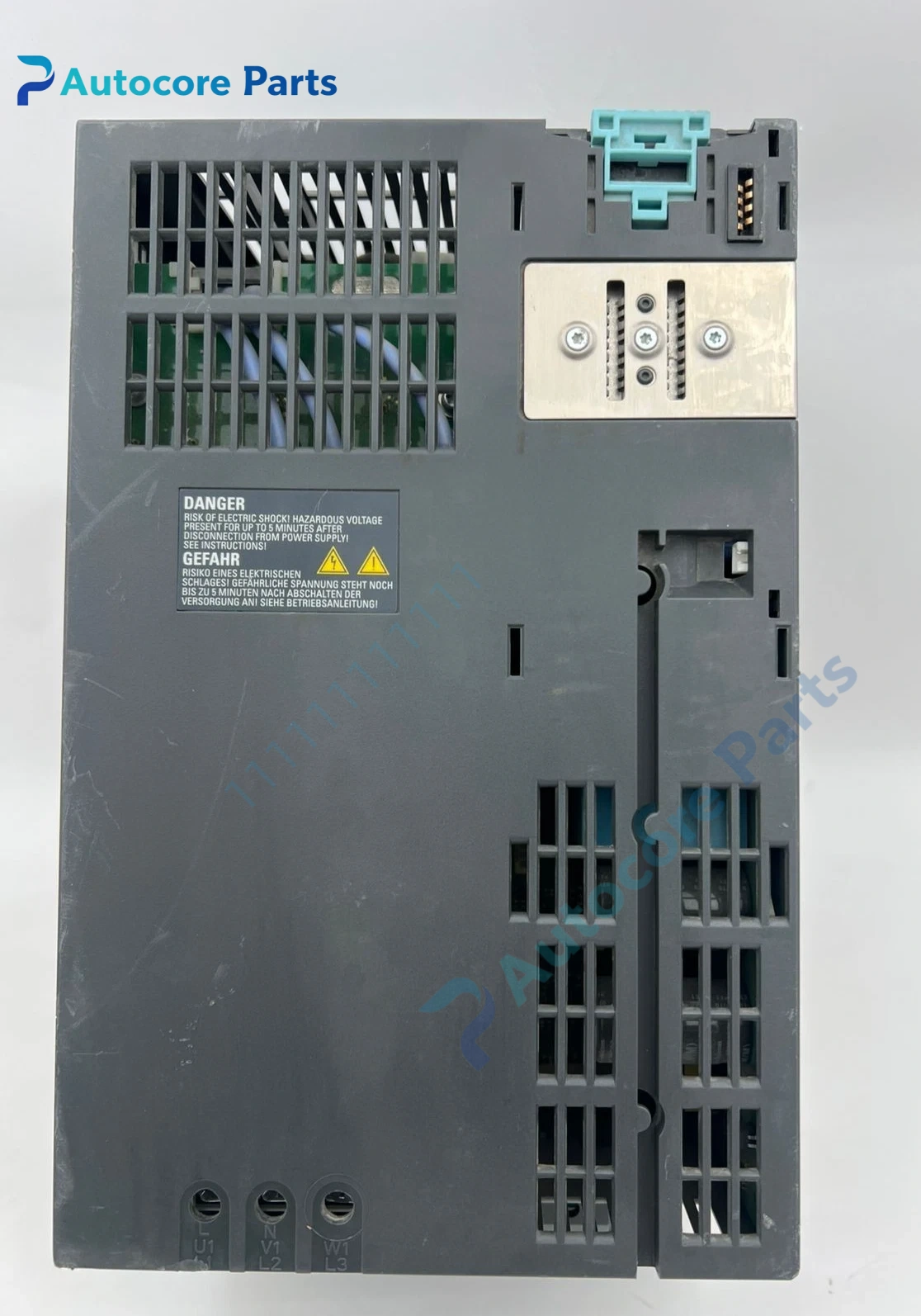

Siemens 6SL3225-0BE27-5AA0 PM250 Power Module

Feature & Principle

PM250 is a regenerative power module for G120 drive system. It feeds braking energy back to the power grid instead of dissipating via braking resistor. Matched with G120 control unit to realize four-quadrant motor control. Built-in Class A EMC filter reduces electromagnetic interference, suitable for frequent start-stop and high dynamic load.

Specifications

Model: 6SL3225-0BE27-5AA0 Brand: Siemens Series: SINAMICS G120 PM250 Rated power: 11 kW Input: 3 AC 380~480V Function: Energy regeneration, four quadrant EMC: Integrated Class A filter Frame size: FSC Protection grade: IP20 Overload: 150% for 60s Mounting: Cabinet installation Certification: CE, UL

Components & Diagnostics

IGBT power unit, regenerative circuit, EMC filter, power terminal block, status LED. Common faults: regeneration abnormal, overvoltage alarm, filter failure, overheating, communication matching fault.

Product Brief

6SL3225-0BE27-5AA0 power module, Siemens regenerative drive spare widely used for hoist, centrifuge and high dynamic mechanical equipment control cabinet maintenance and replacement.
