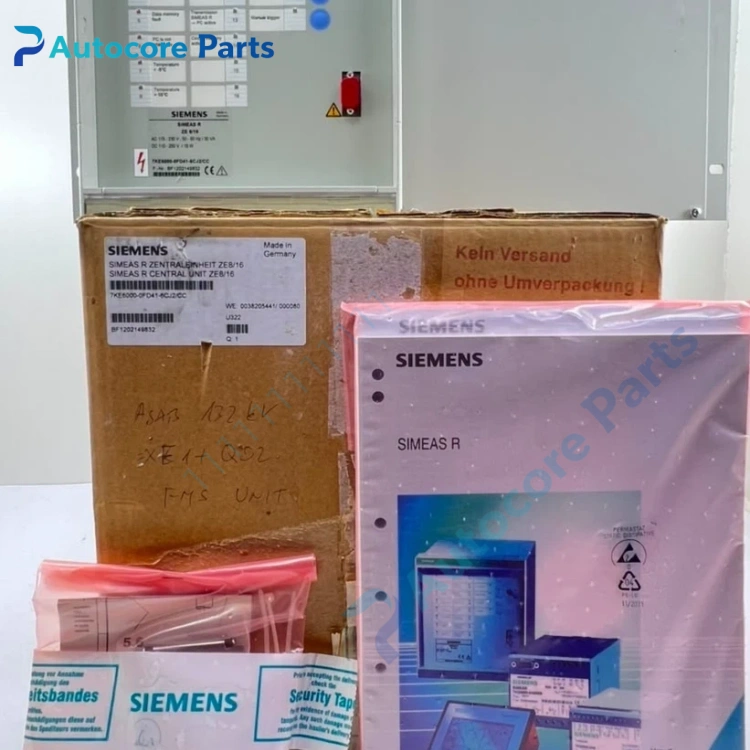

Siemens 7KE6000-0FD41-6CJ2 SIPROTEC 7KE6000 Synchronizing Relay Unit

Feature & Principle

It monitors voltage magnitude, phase angle and frequency difference between two electrical systems. It blocks breaker closing when parameters exceed configured thresholds, enables automatic synchronizing and voltage supervision, records events and fault data for grid paralleling safety.

Specifications

Model: 7KE6000-0FD41-6CJ2 Brand: Siemens Series: SIPROTEC 7KE6000 Function: Synchrocheck, auto-synchronization, voltage monitoring Communication: IEC 61850, Modbus TCP, DNP3 Power supply: 24 to 250 V AC/DC Mounting: Panel cutout mounting Certification: IEC, CE, UL

Components & Diagnostics

Signal acquisition board, main CPU board, LCD display, operation keys, communication interface, binary I/O terminal block. Common faults: VT wiring mismatch, synchronization parameter setting error, communication loss, power supply failure.

Product Brief

7KE6000-0FD41-6CJ2 synchronizing relay, Siemens power automation spare widely used for generator parallel connection, substation busbar and tie-breaker synchrocheck protection.
