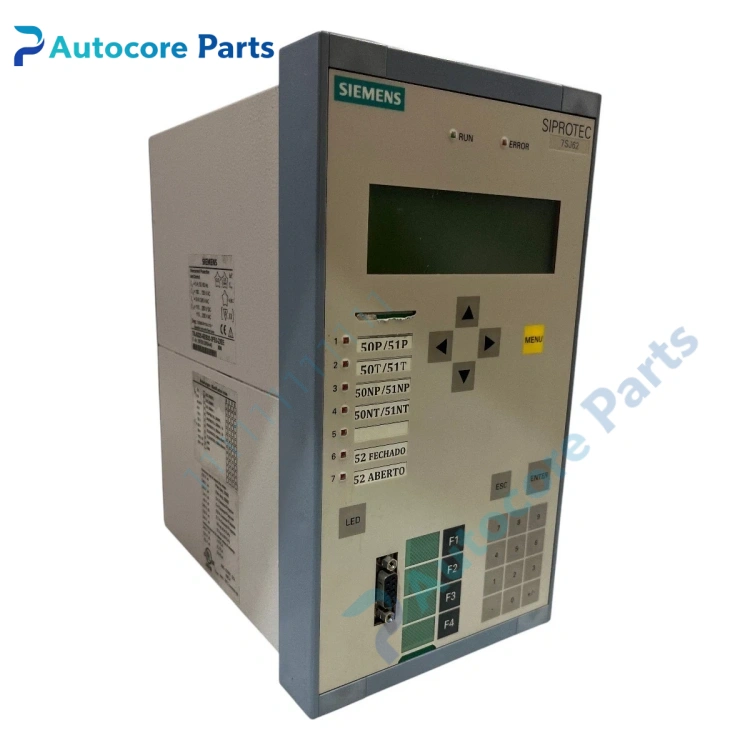

Siemens 7SJ6225-5EB32-3FE0 Protection Relay

Feature & Principle

It is a numerical multifunction feeder protection relay of Siemens SIPROTEC 4 7SJ62 series. It samples three-phase current and voltage signals, executes directional phase overcurrent, sensitive earth fault, undervoltage, overvoltage and frequency protection. It supports breaker close/trip control, event logging and oscillographic fault recording. Configurable binary inputs and relay outputs are used for interlock and alarm. It supports multiple communication protocols for SCADA connection, and parameter configuration is completed via DIGSI 4 software. This model is widely used as maintenance spare for legacy medium voltage switchgear.

Specifications

Model: 7SJ6225-5EB32-3FE0 Brand: Siemens Series: SIPROTEC 4 Main protection: Directional overcurrent, sensitive earth fault, voltage / frequency protection Additional function: Circuit breaker control, fault recorder, event log Display: Graphic LCD Communication: IEC60870-5-103, Modbus, Ethernet optional Mounting: Flush panel mount Power supply: 110~250VDC / 115~230VAC Application: Medium voltage feeder, asynchronous motor, capacitor bank protection cabinet Certification: CE, IEC60255

Components & Diagnostics

AC sampling module, main CPU, graphic display unit, communication interface chip, relay output matrix, watchdog circuit, status LED indicators. Common faults: communication offline, measurement deviation, false tripping, breaker control failure, power supply abnormality.

Product Brief

7SJ6225-5EB32-3FE0 protection relay, Siemens SIPROTEC 4 feeder overcurrent control spare widely used for MV switchgear overhaul and replacement.
