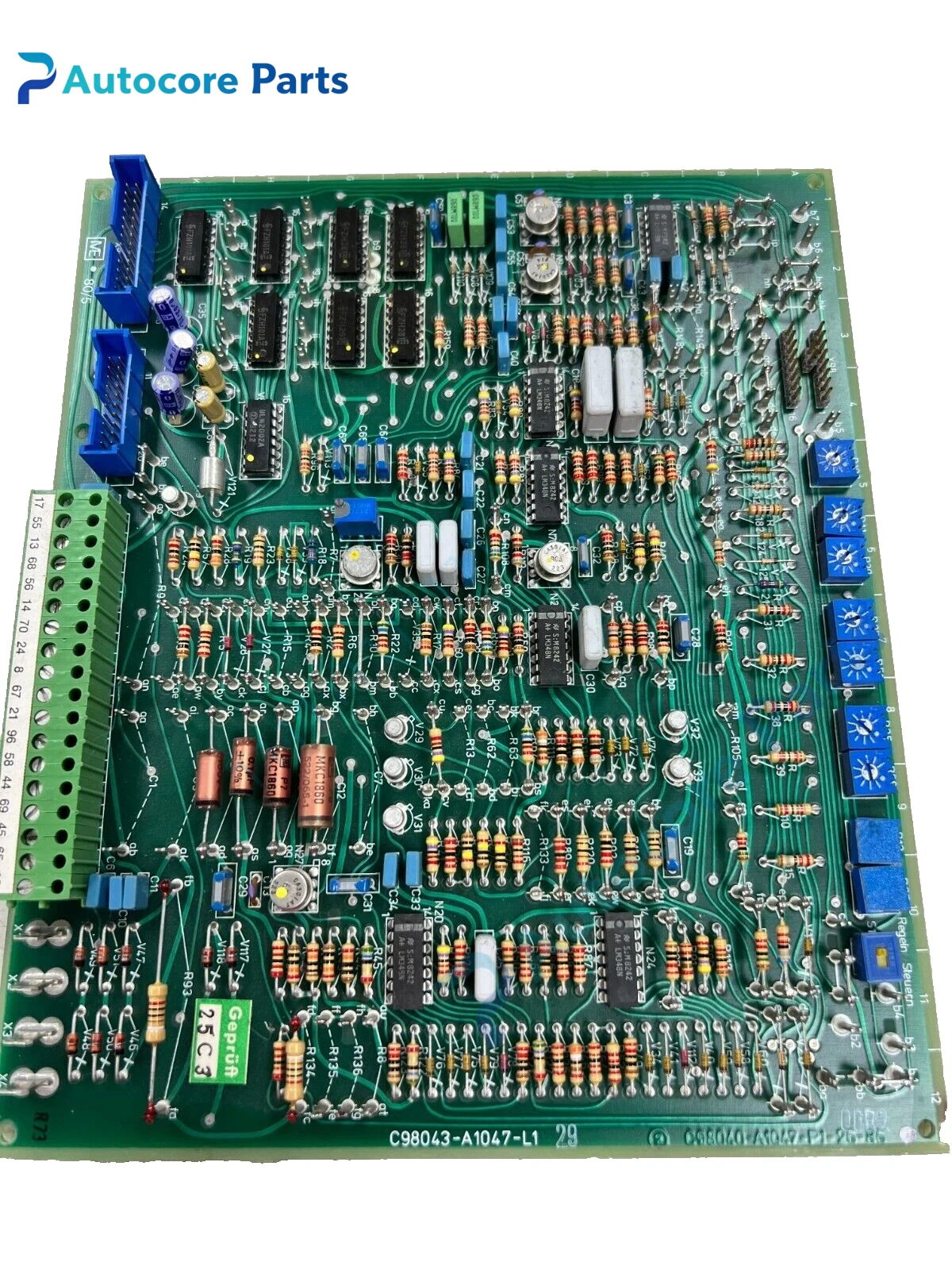

Siemens C98043‑A1047‑L1 Drive Control Board Unit

Module Feature

C98043‑A1047‑L1 is Siemens SIMOREG series DC speed regulator control board. It is the core control component of the early DC drive unit, responsible for current loop and speed loop closed‑loop calculation. It matches the power thyristor board, widely used for traditional DC motor speed regulation in industrial equipment.

Working principle

The board receives speed setpoint and motor feedback signal. Internal circuit calculates trigger angle for thyristor, adjusts DC output voltage to control motor speed, realizes closed‑loop regulation.

Onboard components

Control logic circuit, trigger pulse generating unit, signal acquisition circuit, terminal connector, status indicator, PCB substrate.

LED indicators

Onboard LEDs display power, running and fault status.

Hardware self‑diagnosis

Detect signal loss, trigger pulse abnormality, measure feedback signal, judge hardware fault through drive fault code.

Programming software

Parameter setting through drive panel or matching SIMOREG commissioning tool.

Electrical & Process Parameters

Model:C98043‑A1047‑L1 Brand:Siemens Device type:DC Drive Control Board Applicable system:SIMOREG DC converter Function:Closed‑loop speed and current control for DC motor

Mechanical & Structure

Mounting:Plug‑in rack mounting Protection class:IP00 Housing:Bare PCB board

Environmental

Operating temperature:0℃ ~ +55℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:CE industrial drive standard compliant Status: Siemens SIMOREG original control board

Installation

Insert board into SIMOREG drive rack, lock the connector. Wire feedback and setpoint signal terminals, confirm matching power unit before power‑on.

Interface

Rack backplane connector, analog signal terminals, pulse output terminals.

Diagnostic

Speed unstable: feedback signal fault or board component aging. No trigger pulse: control board power supply failure. Drive alarm: check board indicator and fault code.

Product Brief

Siemens C98043‑A1047‑L1 SIMOREG control board, core control card for old Siemens DC speed regulating drives.
