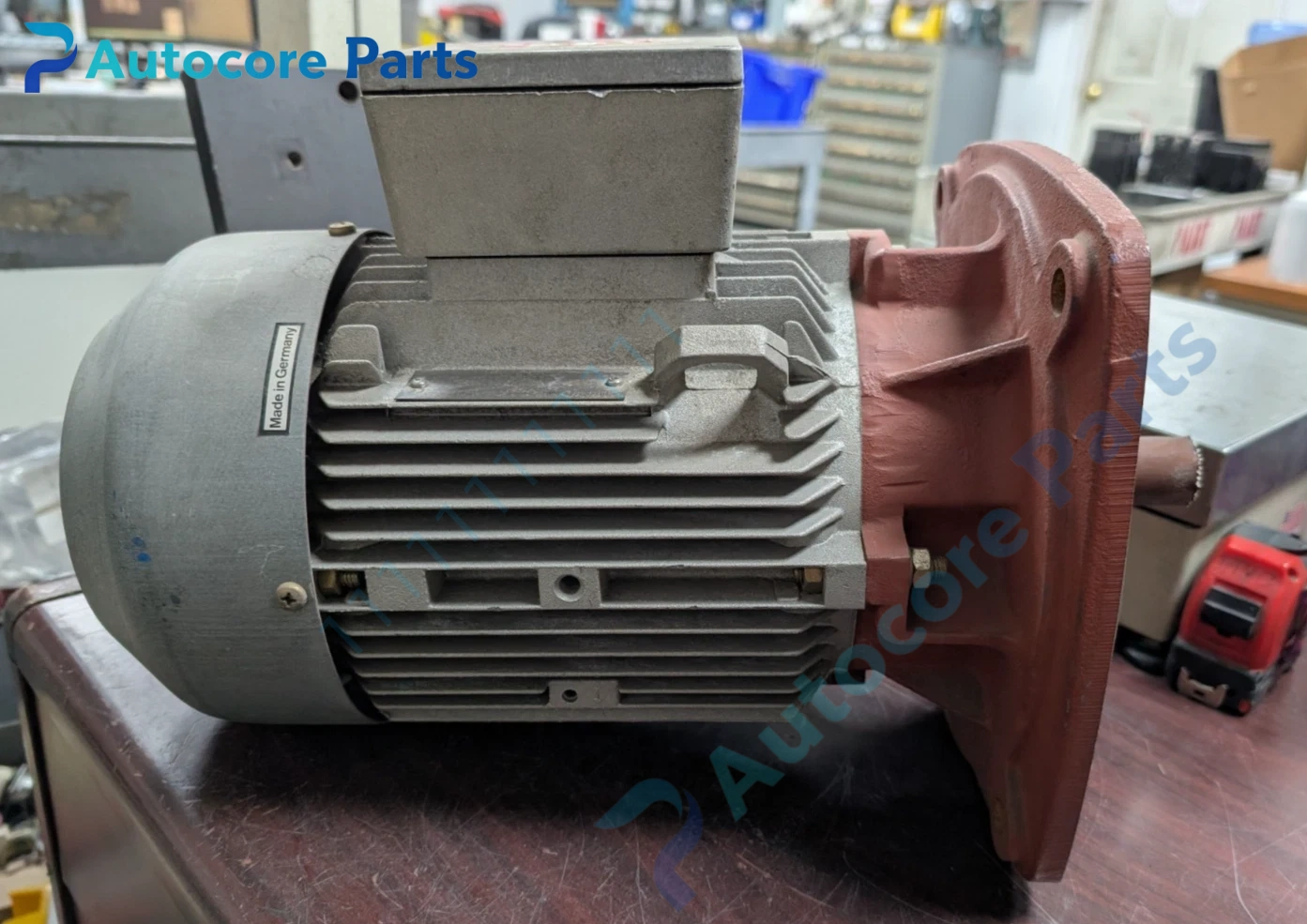

Siemens LA5107‑4BA99‑Z AC Motor Unit

Module Feature

LA5107‑4BA99‑Z is Siemens LA series squirrel‑cage three‑phase asynchronous motor. The suffix Z means customized special version according to order requirement. Totally enclosed fan‑cooled design, robust cast iron housing, suitable for constant speed driving of pumps, fans and conveyors.

Working principle

Three‑phase alternating current is fed into stator windings to generate rotating magnetic field. Induced current on rotor produces torque and drives shaft rotation, realizing energy conversion from electric energy to mechanical energy.

Onboard components

Stator and rotor assembly, cast iron housing, terminal box, bearing group, cooling fan, fan cover and sealing parts.

LED indicators

No onboard LED indicators. Operation condition judged by temperature, noise and vibration.

Hardware self‑diagnosis

Measure winding insulation resistance, check terminal fastening status, monitor housing temperature, inspect abnormal noise and vibration.

Programming software

No configuration software, fixed electrical and mechanical parameters.

Electrical & Process Parameters

Model:LA5107‑4BA99‑Z Brand:Siemens Device type:Three‑Phase AC Induction Motor Cooling:Self‑cooled Function:Provide mechanical power for general industrial machinery

Mechanical & Structure

Mounting:Foot mounting Protection class:IP55 Housing:Cast iron housing

Environmental

Operating temperature:-20℃ ~ +40℃ Storage temperature:-30℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:CE IEC industrial motor standard compliant Status: Siemens LA series custom variant motor

Installation

Fix motor on rigid base. Confirm input voltage matches motor rated specification. Tighten terminal screws and carry out no‑load test after wiring.

Interface

Three‑phase power terminal block, motor output shaft.

Diagnostic

Motor overheating: overload, voltage deviation or poor heat dissipation. Abnormal noise: bearing wear. Current unbalance: loose wiring or winding fault.

Product Brief

Siemens LA5107‑4BA99‑Z three‑phase induction motor, customized general‑purpose drive motor for pumps, fans and conveying equipment.
