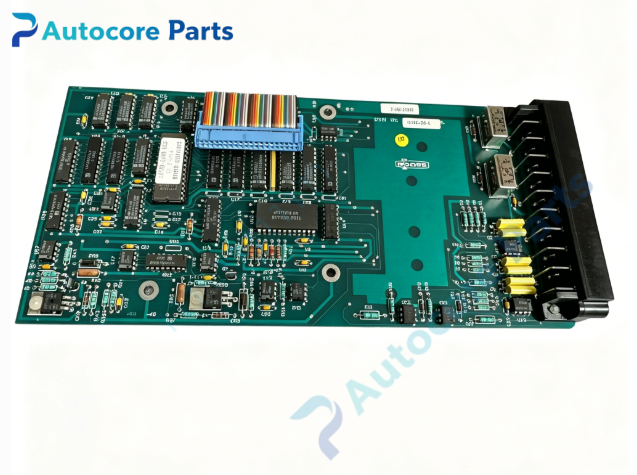

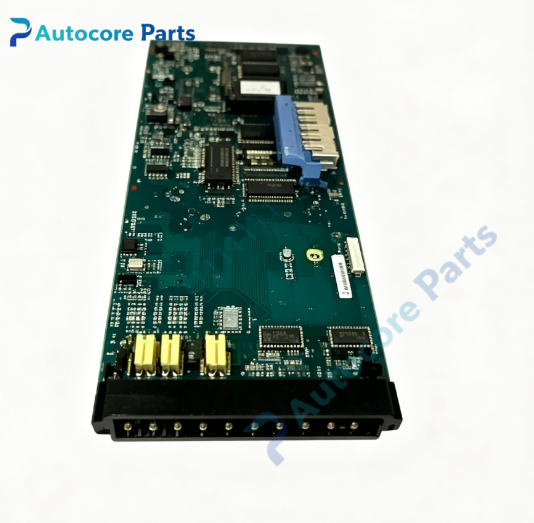

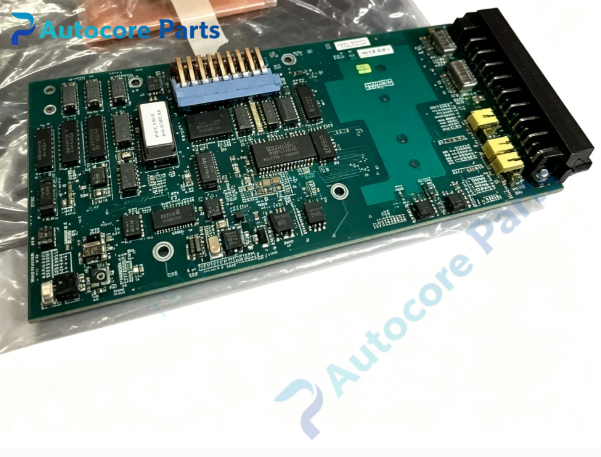

SIEMENS MOORE 16105-36-1 Expansion Board

Technical SpecificationsModel:16105-36-1 Brand:SIEMENS MOORE Product Type:352 Controller Expansion Board Power Supply:Supplied by 352 main controller board Mounting:Install inside Moore 352 controller housing Operating temperature:-20℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:0.29kg Dimension:25.4mm127mm279.4mm

System compatibility16105-36-1 is compatible with SIEMENS MOORE 352 series single loop panel PID controller. It is the dedicated expansion card, plugging into the main control board of 352 controller to expand additional functions.

FunctionThis expansion PCB board expands extra I/O channels, alarm relay outputs and communication options for Moore 352 single-loop controller. It cooperates with the main board to enrich process interlock, remote signal transmission and multi-alarm logic. It is used to upgrade basic 352 controller for complex single-loop control requirements of temperature, pressure, flow and liquid level.

InstallationCut off AC power of the controller before installation. Open the controller housing, insert the expansion board into the designated socket on main controller board, lock the fixing hardware. Connect internal signal jumpers according to wiring diagram. Power on and configure expanded function parameters after installation.

InterfaceBoard-to-board edge connector to main controller, extended signal terminals, alarm relay pins, status LED indicators.

FeatureDedicated expansion board for 352 controller, compact PCB design, easy plug-in installation, expand alarm and I/O capability. Obsolete legacy spare part, used for function upgrade and hardware replacement of Moore 352 panel controllers.

DiagnosticExpanded function invalid: check board socket contact and jumper setting. Abnormal alarm output: inspect relay circuit and parameter configuration. Controller boot failure: verify expansion board pin no short-circuit.

Product BriefSIEMENS MOORE 16105-36-1 is 352 series controller expansion board, widely used in petrochemical, boiler and water treatment industries to expand functions for Moore 352 single loop PID controllers.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
