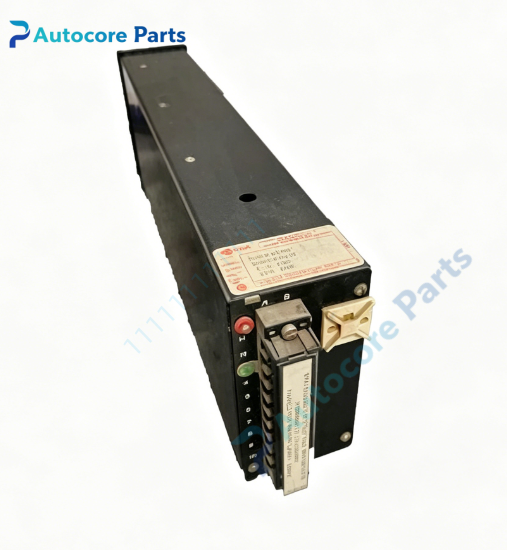

SIEMENS MOORE 372A11NC Digital Process Controller

Technical SpecificationsModel:372A11NC Brand:SIEMENS MOORE Product Type:Single Loop Digital Process Controller Power Supply:120V AC,47-63Hz Input Signal:4-20mA,1-5V DC analog input Output Signal:4-20mA analog control output, relay alarm contact Mounting:Panel flush mounting Operating temperature:-20℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:3.4kg Dimension:76mm152mm178mm

System compatibility372A11NC belongs to SIEMENS MOORE 372 series single-loop digital controller. It works independently for closed-loop process control, and can communicate with upper DCS or monitoring systems for process data upload.

FunctionThis panel-mounted digital PID controller receives analog measurement signals from field transmitters, compares process variable with setpoint and calculates PID output to drive regulating valves. It realizes closed-loop control of temperature, pressure, flow and liquid level. It supports local parameter setting, digital display of process value and setpoint, high/low alarm function and manual/auto mode switching.

InstallationCut off AC power before installation. Insert the controller into cabinet panel cutout and fasten mounting brackets. Wire AC power, analog input, control output and alarm relay terminals following wiring drawing. Configure PID parameters, alarm thresholds and input scaling after power on, then perform loop calibration.

InterfaceRear screw terminal block, analog input terminals, 4-20mA control output terminals, alarm relay terminals, front digital display and operation keys.

Feature372 series single loop digital PID controller, panel flush mount, manual/auto switching, local setpoint adjustment, high and low process alarm, robust metal housing, suitable for continuous industrial process operation. Obsolete legacy spare part, used for old process control loop maintenance and replacement.

DiagnosticNo display: check AC power supply, fuse and rear power terminals. Control deviation: verify field sensor input signal, re-tune PID parameters. Alarm trigger: check process variable, wiring fault and alarm threshold setting.

Product BriefSIEMENS MOORE 372A11NC is 372 series panel mount single-loop digital PID process controller, widely used in petrochemical, power, pulp & paper and water treatment industries for single process loop regulation.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
