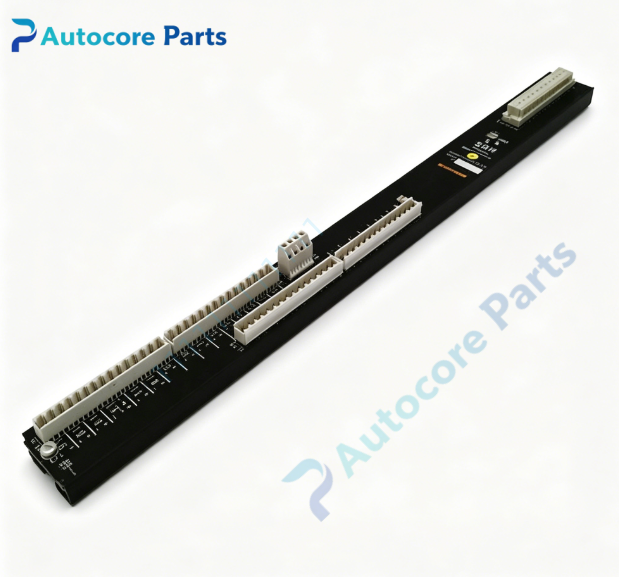

SIEMENS MOORE 16140-1-2 I/O Transition Terminal Board

Technical SpecificationsModel:16140-1-2 Brand:SIEMENS MOORE Product Type:I/O Transition Terminal Board System:APACS+ DCS System Power Supply:24V DC Mounting:Rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:0.62kg Dimension:35mm220mm235mm

System compatibility16140-1-2 is compatible with SIEMENS MOORE APACS+ distributed control system. It works with APACS I/O modules to realize signal transition between backplane and field wiring.

FunctionThis transition terminal board serves as signal interface between DCS I/O module and field instruments. It distributes analog and discrete signals, provides field wiring terminals, protects I/O module from surge and short-circuit faults, simplifies field wiring maintenance.

InstallationPower off the rack before installation. Install the transition board in rack slot, connect ribbon cable between transition board and I/O module, wire field instrument cables to terminal blocks, check wiring continuity after installation.

InterfaceFlat ribbon cable connector, field wiring terminal block, status indicator LEDs.

FeatureCentralized field signal termination, built-in surge protection, convenient wiring and troubleshooting, compact rack installation. Obsolete legacy spare part, used for APACS+ DCS wiring system maintenance and replacement.

DiagnosticSignal interruption: inspect ribbon cable connection and terminal screw tightness. Signal drift: check field grounding and surge protection circuit. No channel signal: verify cable continuity and field device loop.

Product BriefSIEMENS MOORE 16140-1-2 is APACS+ series I/O transition terminal board, used for signal wiring transfer between DCS I/O modules and field transmitters, valves and sensors.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
