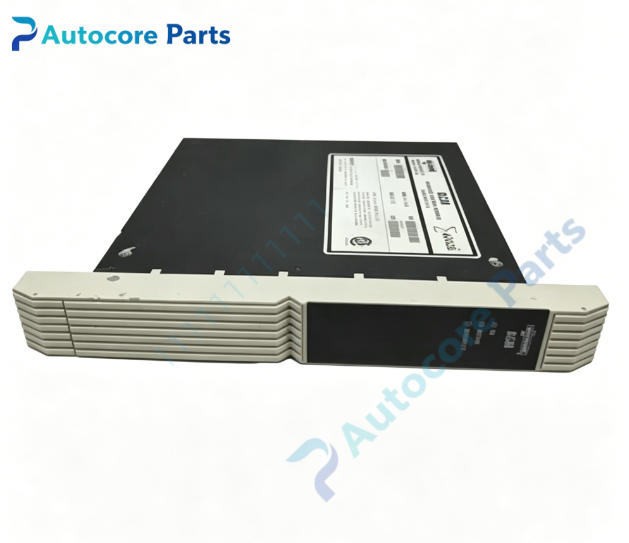

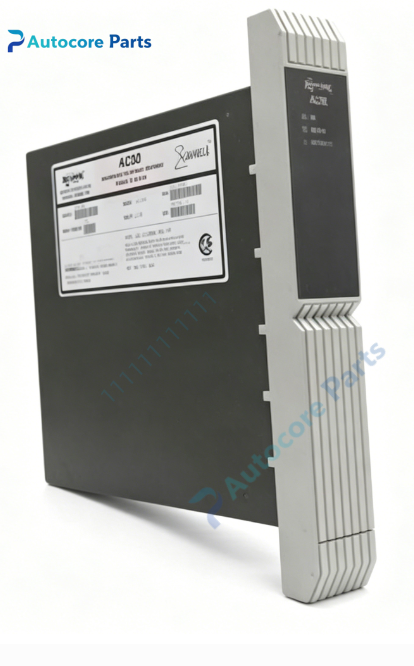

SIEMENS MOORE 39ACM14BAN Advanced Control Module

Technical SpecificationsModel:39ACM14BAN Brand:SIEMENS MOORE Product Type:Advanced Control Module System:APACS+ DCS System Power Supply:24V DC, 0.5A Memory:1MB Mounting:Rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:1.1kg Dimension:35mm220mm235mm

System compatibility39ACM14BAN is compatible with SIEMENS MOORE APACS+ distributed control system. It is installed in standard APACS rack chassis as the core controller for small and medium process control loops.

FunctionThis advanced control module executes closed-loop PID control, sequence logic and analog signal processing. It communicates with various I/O modules through backplane bus, collects field process data and outputs control commands to realize real-time regulation of temperature, pressure, flow and liquid level.

InstallationPower off the rack chassis before installation. Insert the module into designated rack slot and lock the front latch. Set hardware address and download control configuration after power restoration.

InterfaceBackplane bus connector, front LED status indicators.

FeatureIntegrated control algorithm, built-in fault self-diagnosis, isolated backplane circuit, stable continuous operation. Obsolete legacy spare part, used for APACS+ DCS system maintenance and controller replacement.

DiagnosticNo power: check rack 24V DC power supply and backplane contact. Module fault: read diagnostic information via APACS configuration software, check front LED indicators. Communication error: inspect backplane bus connection and slot address setting.

Product BriefSIEMENS MOORE 39ACM14BAN is APACS+ series ACM advanced control module with 1MB memory, used as core controller for process automation DCS in petrochemical, power and pulp & paper industries.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
