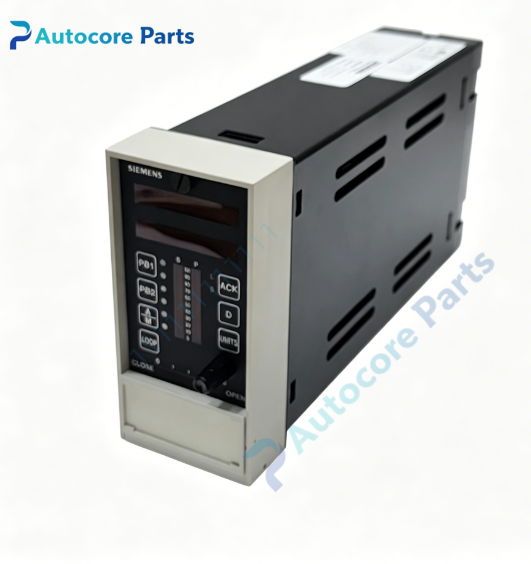

SIEMENS MOORE 353A4F1CNB Process Automation Controller

Technical SpecificationsModel:353A4F1CNB Brand:SIEMENS MOORE Product Type:Multi-Loop Process Automation Controller Power Supply:120/240V AC, 25W,47-63Hz Built-in I/O:3 analog inputs,2 analog outputs,2 digital inputs,2 digital outputs Communication:Ethernet,Modbus,RS232,RS485 Mounting:Panel flush mounting Operating temperature:-20℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:1.4kg Dimension:76mm152mm279mm

System compatibility353A4F1CNB belongs to SIEMENS MOORE 353 process automation controller family. It can operate as standalone multi-loop controller, or connect to upper DCS/HMI via Ethernet / Modbus for data exchange. Optional I/O expander board can be installed to add thermocouple,RTD and relay channels.

FunctionThis panel mounted multi-loop controller executes continuous PID control, cascade control, sequential logic and interlock functions. It receives analog signals from field transmitters and outputs control signals to regulating valves for temperature,pressure,flow and liquid level control. It supports function block or ladder logic configuration, local operation via front panel or PC configuration software. It has digital display for process value,setpoint and alarm status, supports manual/auto mode switching.

InstallationCut off AC power before installation. Fit the controller into cabinet panel cutout and fasten mounting brackets. Wire AC power, analog I/O, digital I/O and communication terminals following wiring diagram. Download control strategy and configure PID, alarm and communication parameters after power on, then perform loop commissioning.

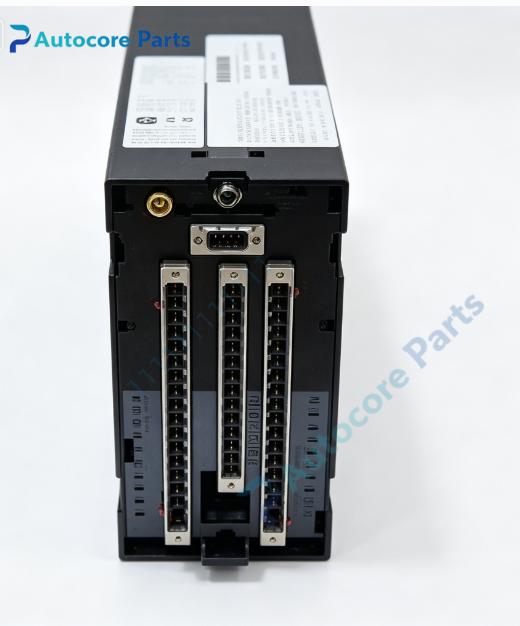

InterfaceRear 52-pin screw terminal block, Ethernet port, RS232 configuration port, front panel digital display and membrane operation keys.

Feature353 series multi-loop process controller, supports cascade / dual-loop PID, flexible function block programming, multiple communication interfaces, expandable I/O, robust metal housing. Obsolete legacy spare part, used for boiler,chemical and batch process control system maintenance and replacement.

DiagnosticNo display: check AC power supply, fuse and rear power terminals. Control loop deviation: verify sensor input signal, re-tune PID parameters. Communication failure: inspect network cable, IP address and Modbus station setting.

Product BriefSIEMENS MOORE 353A4F1CNB is 353 series panel mount multi-loop process automation controller, widely used in petrochemical, boiler and batch manufacturing industries for complex continuous and sequence process control.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
