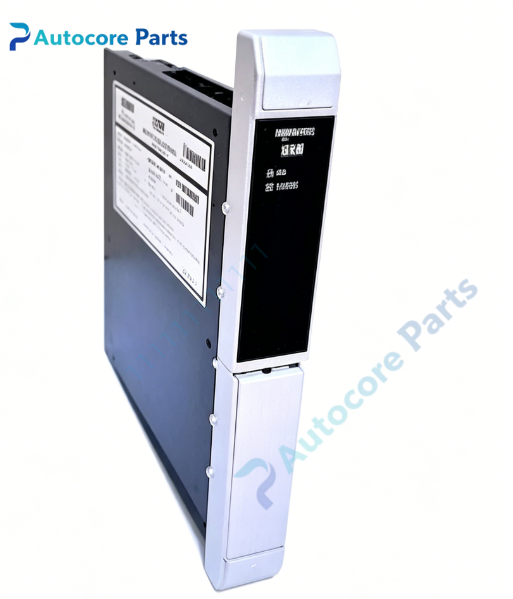

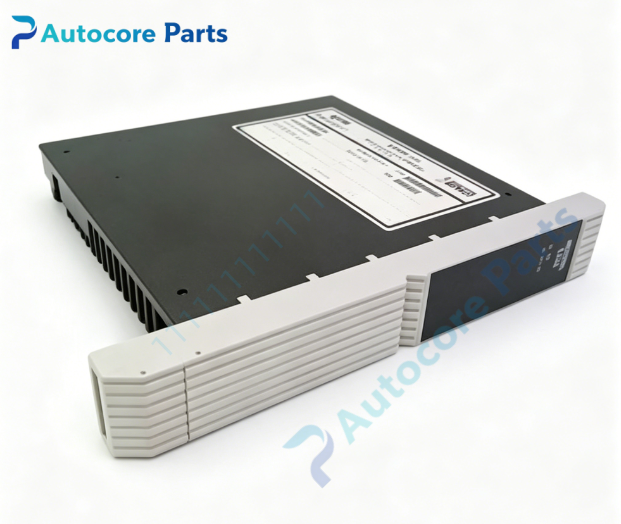

SIEMENS MOORE 39EAMCAN Enhanced Analog Module

Technical SpecificationsModel:39EAMCAN Brand:SIEMENS MOORE Product Type:EAM Enhanced Analog Module System:APACS+ / QUADLOG DCS System Power Supply:24V DC Signal Type:4-20mA analog input / analog output Mounting:Rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:2.0kg Dimension:51mm279mm330mm

System compatibility39EAMCAN is compatible with SIEMENS MOORE APACS+ distributed control system and QUADLOG safety system. It works with ACM series controller and matched marshalling termination boards for analog signal acquisition and output.

FunctionThis EAM enhanced analog module collects 4-20mA measurement signals from field transmitters and outputs 4-20mA control signals to regulating valves. It handles pressure, temperature, flow and liquid level analog signals, supports signal scaling, filtering and per-channel fault diagnosis. It transfers data to system controller through backplane bus for closed-loop process control.

InstallationPower off the rack chassis before installation. Insert the module into designated rack slot and lock the front latch. Connect ribbon cable between module and marshalling termination assembly, wire field transmitters and control valves to terminal blocks. Configure channel range and scaling parameters via APACS engineering software after power restoration.

InterfaceBackplane bus connector, ribbon cable port for marshalling board, front LED indicators for power, run, fault and individual channel status.

FeatureEnhanced multi-channel analog I/O module, 4-20mA signal processing, built-in signal conditioning, overrange detection, per-channel self-diagnosis, galvanic isolation. Obsolete legacy spare part, used for APACS+ DCS analog control loop maintenance and replacement.

DiagnosticNo power: check rack 24V DC power supply and backplane contact. Channel signal abnormal: inspect field instrument loop power, cable wiring and channel scaling setup. Module fault: read diagnostic codes via APACS engineering software, check front LED indicators.

Product BriefSIEMENS MOORE 39EAMCAN is APACS+ series EAM enhanced analog I/O module, widely used in petrochemical, power and pulp & paper industries for process analog signal acquisition and control output.
