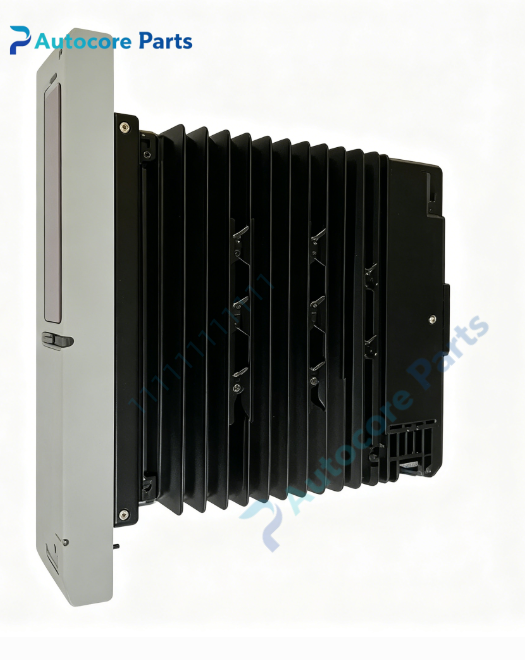

SIEMENS MOORE QLIDM115ACBBN Intelligent Discrete Input Module

Technical SpecificationsModel:QLIDM115ACBBN Brand:SIEMENS MOORE Product Type:IDM Intelligent Discrete Input Module System:QUADLOG / APACS+ DCS System Power Supply:24V DC rack power Input Signal:115V AC discrete input Mounting:Rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:1.86kg Dimension:51mm279mm330mm

System compatibilityQLIDM115ACBBN is compatible with SIEMENS MOORE QUADLOG safety instrumented system and APACS+ distributed control system. It installs in QUADLOG rack chassis and cooperates with QLCCM series safety controller to collect safety-related discrete field signals.

FunctionThis IDM intelligent discrete input module receives 115VAC on/off digital signals from field switches, limit switches and safety interlock sensors. It converts field discrete signals into digital data and transmits to safety controller via backplane bus. It monitors equipment status, emergency stop and safety interlock signals for SIS safety shutdown loops, supports comprehensive channel self-diagnosis.

InstallationPower off the rack chassis before installation. Insert the module into designated rack slot and lock the front latch. Connect ribbon cable between module and marshalling termination board, wire field 115VAC discrete devices to terminal assembly. Configure channel parameters via QUADLOG engineering software after power on.

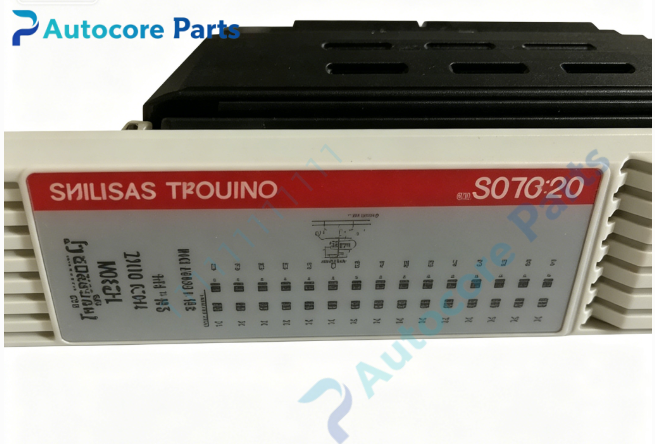

InterfaceBackplane bus connector, ribbon cable port for marshalling board, front LED indicators for power, run, fault and each channel status.

FeatureQUADLOG safety discrete input module, 115VAC signal input, built-in per-channel fault diagnosis, error buffer recording, galvanic signal isolation, suitable for safety instrumented system. Obsolete legacy spare part, used for QUADLOG SIS safety I/O maintenance and replacement.

DiagnosticNo power: check rack 24V DC power supply and backplane contact. Channel no input: inspect field 115VAC loop, switch status and wiring. Module fault: read diagnostic codes via QUADLOG software, clear error buffer if buffer full alarm triggered.

Product BriefSIEMENS MOORE QLIDM115ACBBN is QUADLOG series IDM intelligent discrete input module with 115VAC input, widely used in petrochemical, power and pulp & paper industries for safety interlock and emergency shutdown signal acquisition.
