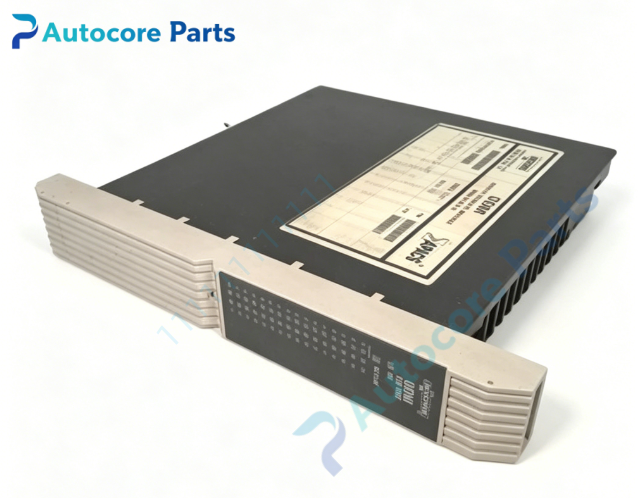

SIEMENS MOORE 39ODM115ACNAN Digital Output Module

Technical SpecificationsModel:39ODM115ACNAN Brand:SIEMENS MOORE Product Type:Digital Output Module System:APACS+ / QUADLOG DCS System Power Supply:24V DC Output Type:Discrete digital output Mounting:Rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:2.7kg Dimension:35mm220mm235mm

System compatibility39ODM115ACNAN is compatible with SIEMENS MOORE APACS+ and QUADLOG distributed control system. It is installed in standard APACS rack chassis to receive control commands from the controller and drive field on-site equipment.

FunctionThis discrete digital output module converts internal control logic signals from DCS backplane into field switch output signals. It outputs on/off commands to solenoid valves, relays, contactors and other field devices for interlock and sequence control in process plants.

InstallationPower off the rack chassis before installation. Insert the module into the designated rack slot and lock the front latch. Wire field output cables to the terminal block. Configure channel parameters and safety interlock logic after power restoration.

InterfaceBackplane bus connector, field wiring terminal block, front LED status indicators for each channel.

FeatureIsolated output channels, per-channel status LED indication, built-in short-circuit protection, fault self-diagnosis, suitable for continuous process operation. Obsolete legacy spare part, used for APACS+ / QUADLOG DCS I/O channel maintenance and replacement.

DiagnosticNo power: check rack 24V DC power supply and backplane contact. Channel no output: verify configuration parameters, field wiring and load status. Module fault: read diagnostic information via APACS configuration software, inspect front LED indicators.

Product BriefSIEMENS MOORE 39ODM115ACNAN is APACS+ QUADLOG series digital output I/O module, widely used in petrochemical, power and pulp & paper industries to drive field discrete equipment.
