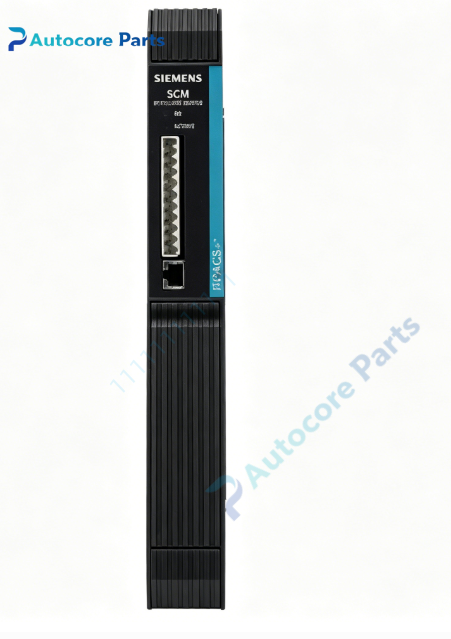

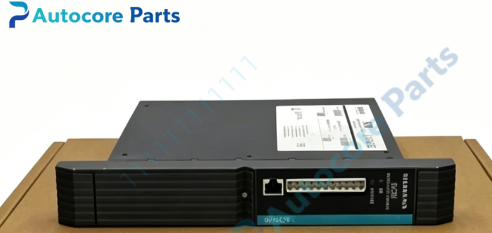

SIEMENS MOORE 39SCMNNNAAN Satellite Controller Module

Technical SpecificationsModel:39SCMNNNAAN Brand:SIEMENS MOORE Product Type:Satellite Controller Module System:APACS+ / QUADLOG DCS System Power Supply:24V DC Mounting:Rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:2.48kg Dimension:35mm220mm235mm

System compatibility39SCMNNNAAN is compatible with SIEMENS MOORE APACS+ and QUADLOG distributed control system. It is installed in standard APACS rack chassis as satellite controller to work together with main control modules.

FunctionThis satellite controller module executes distributed loop control and local sequence logic. It processes field I/O signals independently, exchanges real-time data with the primary controller via backplane bus, undertakes partial control tasks to reduce the load of main controller for large-scale process plant.

InstallationPower off the rack chassis before installation. Insert the module into designated rack slot and lock the front latch. Set hardware address, download control configuration after power restoration.

InterfaceBackplane bus connector, front LED status indicators.

FeatureDistributed satellite control architecture, built-in self-diagnosis function, isolated signal circuit, stable continuous operation. Obsolete legacy spare part, used for APACS+ / QUADLOG DCS maintenance and replacement.

DiagnosticNo power: check rack 24V DC power supply and backplane contact. Module fault: read diagnostic data via system configuration software, check front LED indicators. Communication failure: inspect backplane bus connection and slot address setting.

Product BriefSIEMENS MOORE 39SCMNNNAAN is APACS+ QUADLOG satellite controller module, applied in petrochemical, power and pulp & paper industries for distributed DCS process control.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
