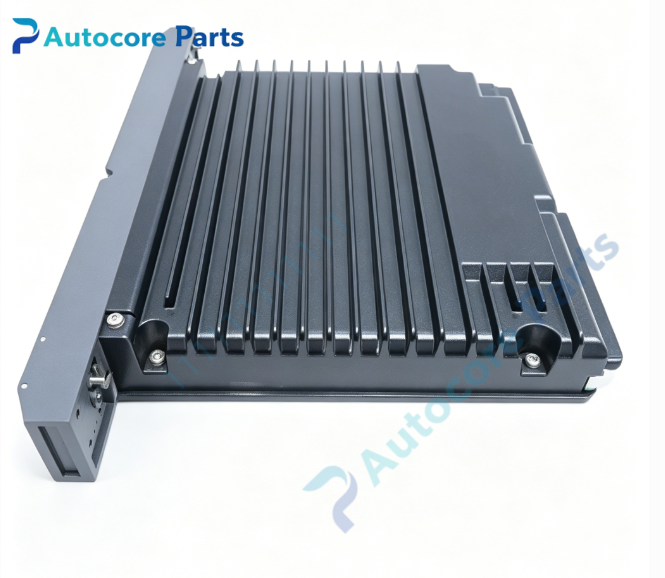

SIEMENS MOORE 39PFMAAN PROFIBUS Fieldbus Module

Technical SpecificationsModel:39PFMAAN Brand:SIEMENS MOORE Product Type:PROFIBUS Fieldbus Module System:APACS+ DCS System Power Supply:24V DC, max 300mA Protocol:PROFIBUS DP Baud Rate:9.6 kbps ~ 12 Mbps Mounting:Rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:1.59kg Dimension:40mm260mm310mm

System compatibility39PFMAAN is compatible with SIEMENS MOORE APACS+ distributed control system. It works with ACM series controller, connecting APACS+ rack to PROFIBUS DP field instruments, remote I/O and fieldbus slave devices.

FunctionThis PROFIBUS fieldbus module acts as the PROFIBUS DP master interface for APACS+ DCS. It exchanges process variables, device status and control commands between APACS+ controller and PROFIBUS DP field slave devices. It realizes fieldbus data acquisition and remote control, supports bus diagnosis and slave device status monitoring.

InstallationPower off the rack chassis before installation. Insert the module into designated rack slot and lock the front latch. Connect PROFIBUS DP shielded cable to fieldbus port, complete bus terminal resistor setting. Configure station address and slave device list via APACS engineering software after power on, verify bus communication.

InterfaceBackplane bus connector, PROFIBUS DP fieldbus terminal port, front LED indicators for power, run, fault and bus communication status.

FeatureAPACS+ dedicated PROFIBUS DP communication module, wide baud rate selection, built-in bus fault diagnosis, galvanic isolation for fieldbus circuit, rack hot-swap support. Obsolete legacy spare part, used for APACS+ DCS PROFIBUS fieldbus communication maintenance and replacement.

DiagnosticNo power: check rack 24V DC power supply and backplane contact. Bus communication loss: inspect PROFIBUS cable shielding, termination resistor and bus wiring. Module fault: read diagnostic codes via APACS engineering software, check slave device fault status.

Product BriefSIEMENS MOORE 39PFMAAN is APACS+ series PROFIBUS DP fieldbus communication module, widely used in petrochemical, power and pulp & paper industries to connect APACS DCS with PROFIBUS DP field equipment.
