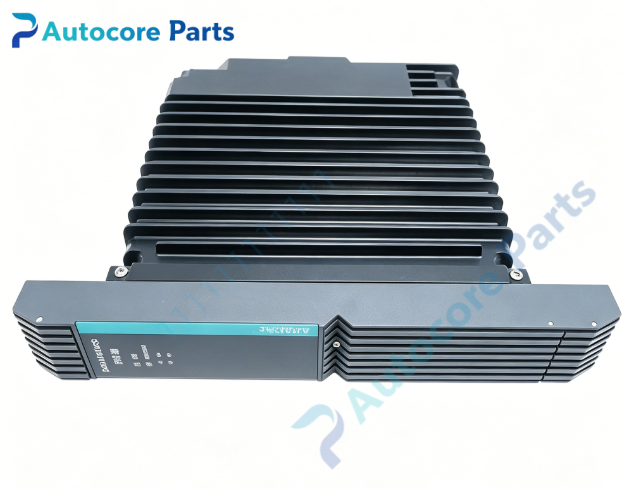

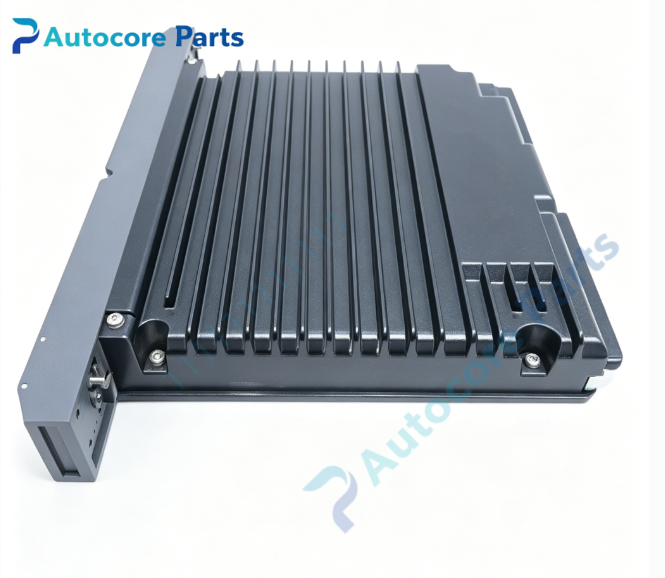

SIEMENS MOORE 39PFMAAN PROFIBUS Fieldbus Module

Technical SpecificationsModel:39PFMAAN Brand:SIEMENS MOORE Product Type:PROFIBUS Fieldbus Communication Module System:APACS+ DCS System Power Supply:24V DC, max 300mA PROFIBUS DP baud rate:9.6 kbps ~ 12 Mbps Mounting:Rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:0.72kg Dimension:35mm220mm235mm

System compatibility39PFMAAN is compatible with SIEMENS MOORE APACS+ distributed control system. It can be inserted into standard APACS rack to connect PROFIBUS DP field devices, such as remote I/O, drives and field transmitters.

FunctionThis PROFIBUS fieldbus module acts as the interface between APACS+ backplane bus and PROFIBUS DP field network. It handles data exchange between DCS controller and field PROFIBUS slaves, transmits process values, diagnostic signals and control commands.

InstallationCut off rack power before installation. Insert the module into designated APACS rack slot and lock the latch. Connect PROFIBUS DP cable to the front port and set bus terminal resistor. Configure station address via system software after power-up.

InterfaceBackplane bus connector, PROFIBUS DP terminal port, front LED status indicators.

FeatureSupport full PROFIBUS DP protocol, hot swap function, built-in bus diagnostic, isolated communication circuit, stable for continuous plant operation. Obsolete legacy spare part, used for APACS+ DCS maintenance and replacement.

DiagnosticNo power: check 24V DC rack power supply and backplane contact. Bus communication failure: verify PROFIBUS cable, terminal resistor and slave address. Module fault: read fault code via APACS configuration software, check status LED.

Product BriefSIEMENS MOORE 39PFMAAN is APACS+ series PROFIBUS DP fieldbus communication module, used to connect APACS DCS system with PROFIBUS DP field equipment in petrochemical, power and pulp & paper industries.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
