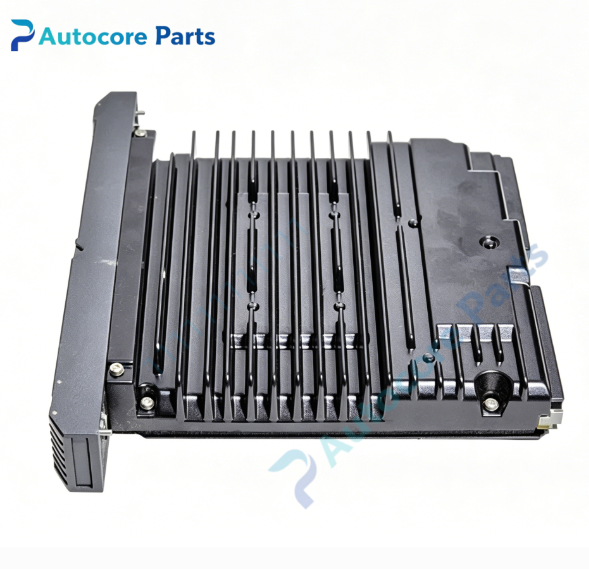

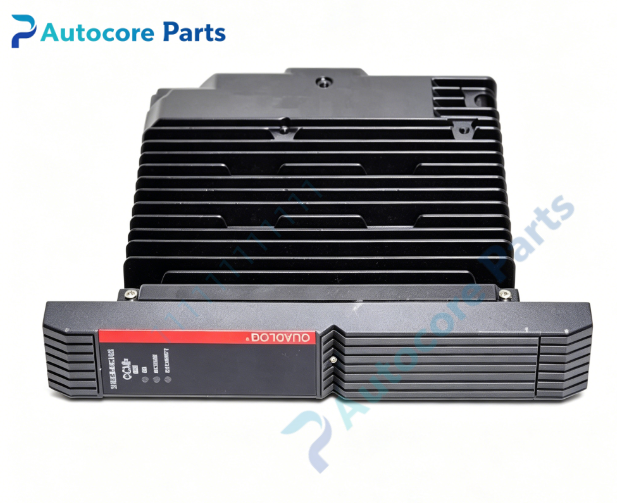

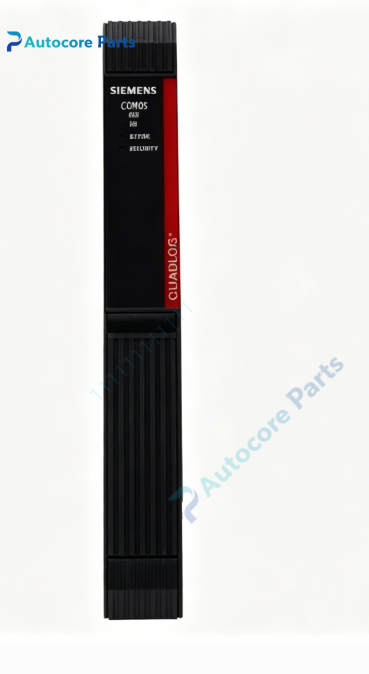

SIEMENS MOORE QLCCM36AAN Critical Control Module

Technical SpecificationsModel:QLCCM36AAN Brand:SIEMENS MOORE Product Type:Critical Control Module System:QUADLOG / APACS+ DCS System Memory:6 MEG Power Supply:24V DC, 0.32A Mounting:Rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:0.59kg Dimension:35mm220mm235mm

System compatibilityQLCCM36AAN is compatible with SIEMENS MOORE QUADLOG and APACS+ distributed control system. It is installed in standard QUADLOG rack for critical process control in petrochemical, power generation and pulp & paper industries.

FunctionThis critical control module executes high-speed closed-loop control, sequence logic and analog signal processing. It runs control algorithms, communicates with I/O and other modules via backplane bus to realize real-time monitoring and regulation of critical process loops.

InstallationPower off the rack chassis before installation. Insert the module into the designated rack slot and lock the front latch. Complete hardware address configuration and program download after power restoration.

InterfaceBackplane bus connector, front LED status indicators.

FeatureHigh performance for critical control application, built-in fault self-diagnosis, isolated circuit design, stable continuous operation. Obsolete legacy spare part, used for QUADLOG / APACS+ DCS system maintenance and replacement.

DiagnosticNo power: check rack 24V DC power supply and backplane connection. Module fault: read diagnostic information through system configuration software, check front status LED. Communication error: inspect backplane bus contact and slot address setting.

Product BriefSIEMENS MOORE QLCCM36AAN is QUADLOG APACS+ series critical control module with 6MB memory, used as core controller for critical process control loops in DCS automation systems.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
