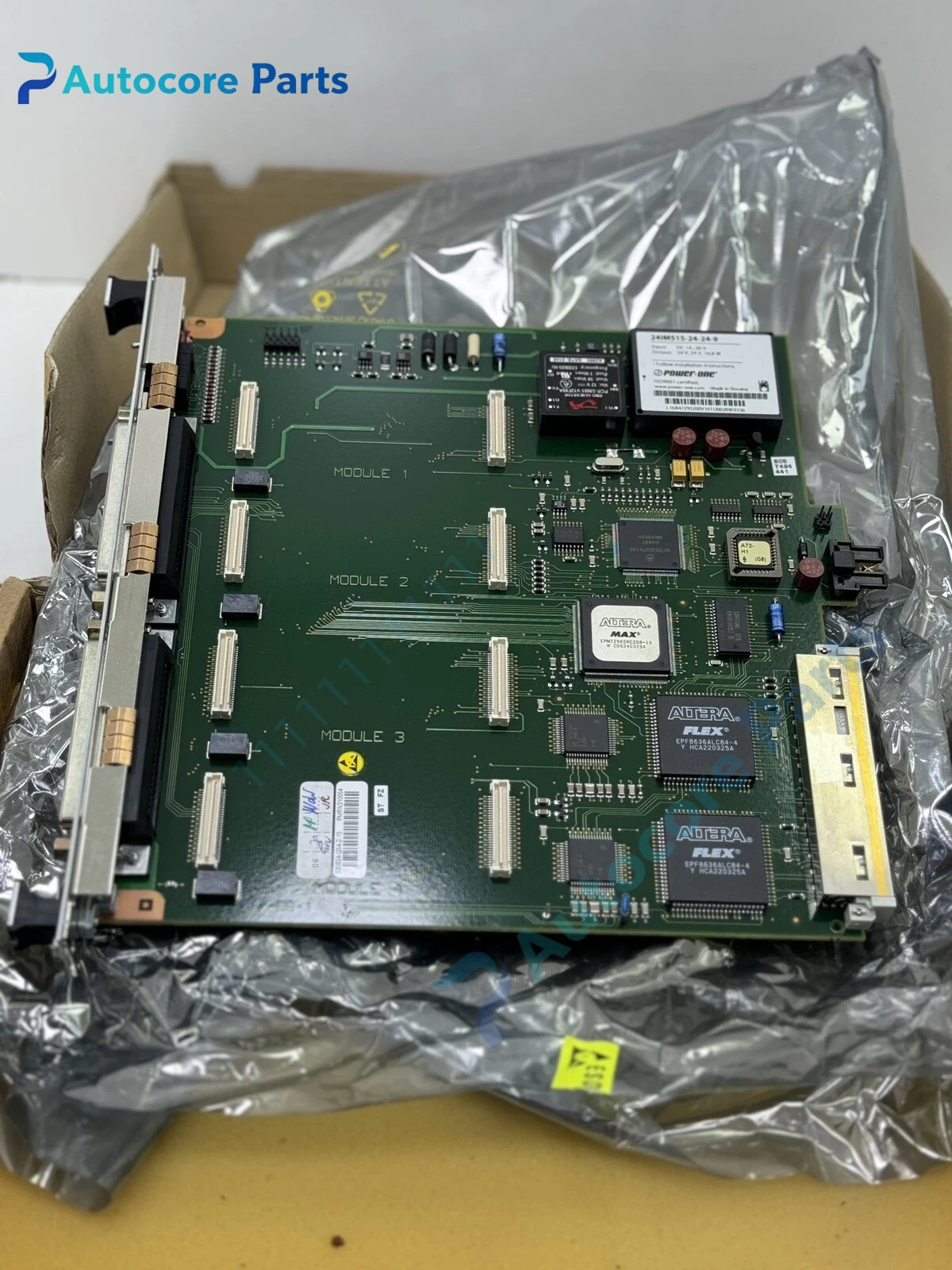

Siemens S30824-Q54-Z-15 Q54 Telecom Interface Module Unit

Module Feature

S30824-Q54-Z-15 is a hot-swappable service interface module of Siemens Q54 telecom series, used for old digital telephone exchange systems.

It provides multi-channel voice and signaling interface, realizes subscriber or trunk signal access and conversion. Designed for telecom standard rack chassis, support online replacement under the permission of system procedure. Coated PCB design, strong anti-interference performance, meet telecom EMC specification. Widely stocked as maintenance spare for telecommunication room, industrial internal telephone exchange cabinet.

Working principle

The module receives analog voice or digital signaling signal from field trunk/subscriber line. After signal conditioning and codec processing, data is transmitted to the main switching backplane bus. The module continuously monitors line status, detects line open, short and overcurrent fault, and uploads alarm information to the host management system.

Onboard components

Signal codec chip, line interface transformer, isolation protection circuit, backplane bus transceiver, fault detection unit, status LED array, terminal block and flame retardant coated PCB.

LED indicators

Green LED: module running normal Red LED: alarm / line trouble

Hardware self‑diagnosis

Built-in supervision detects line fault, bus communication loss, module power anomaly and hardware failure. Configuration and fault diagnosis are completed by Siemens dedicated telecom OAM software.

Programming softwareSiemens telecom exchange OAM tool, used for port parameter configuration, line test and fault log query.

Electrical & Process Parameters

Model:S30824-Q54-Z-15 Brand:Siemens Device type:Q54 telecom hot swap interface module Function:Voice and signaling line access for digital telecom switching system

Mechanical & Structure

Mounting:Telecom rack plug-in slot installation Protection class:IP20 Housing:Metal front panel + coated PCB

Environmental

Operating temperature:0℃ ~ +55℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, telecom EMC standard Status:Original Siemens communication spare

Installation

Follow telecom safety procedure before hot swap replacement. Check backplane connector, confirm line terminal wiring, upload port configuration, test voice transmission and line fault detection function after commissioning.

Interface

Backplane bus connector, subscriber/trunk line wiring terminal block.

Diagnostic

Offline alarm: Backplane contact poor, module damaged. Line trouble: Cable open/short, surge damage. Voice abnormal: Transformer failure, codec circuit anomaly.

Product BriefS30824-Q54-Z-15 module, Siemens Q54 hot-swappable telecom interface spare for digital telephone exchange communication cabinet replacement.
