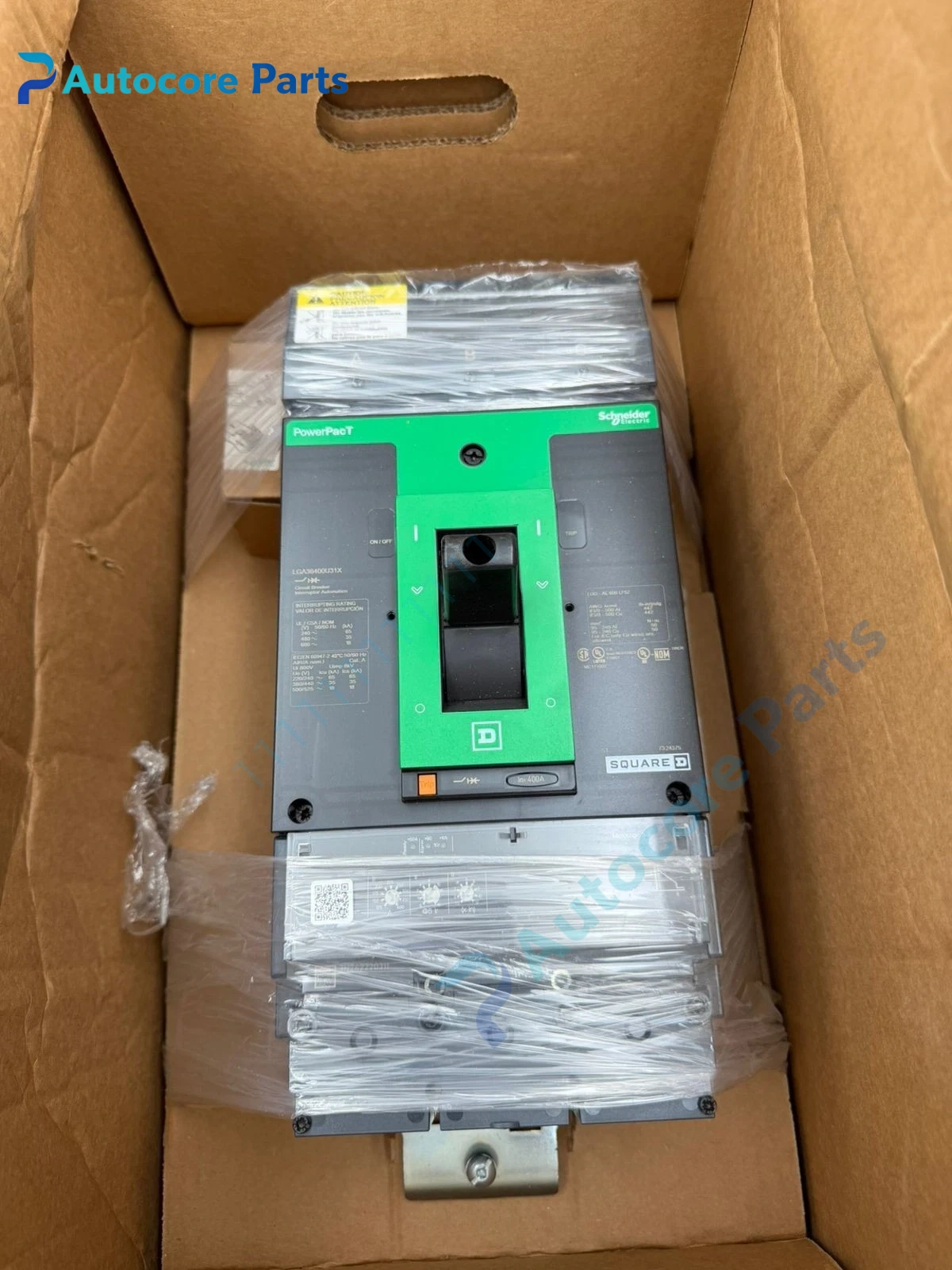

Square D LGA36400U31X PowerPacT L MCCB

Feature & Principle

It adopts MicroLogic 3.3 electronic trip unit. It provides inverse-time overload protection and instantaneous short-circuit protection. Built-in manual test button, I-Line plug-in installation design, supports various auxiliary accessories. It can quickly cut off fault current to protect downstream cables and electrical loads.

Specifications

Model: LGA36400U31X Brand: Square D (Schneider Electric) Series: PowerPacT L Pole: 3P Rated current: 400A Rated voltage: 600V AC Interrupt capacity: 18kA at 600VAC Trip unit: MicroLogic 3.3 Mounting: I-Line plug-in Certification: UL, CSA, CE

Components & Diagnostics

Main contact assembly, arc extinguishing chamber, MicroLogic 3.3 trip unit, operating handle, I-Line base. Common faults: cannot close, mis-tripping, contact overheating, trip unit failure, arc chamber burnout.

Product Brief

LGA36400U31X molded case circuit breaker, Square D power distribution spare widely used for industrial distribution cabinet and commercial building main circuit overhaul and replacement.
