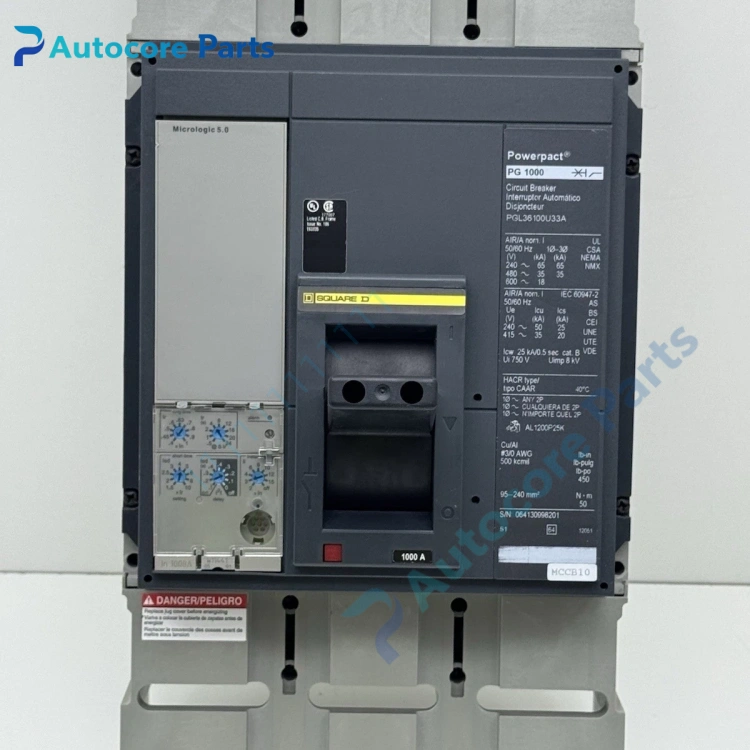

Square D PGL36100U33A PowerPacT P MCCB Unit

Feature & Principle

This molded case circuit breaker adopts Micrologic electronic trip unit, supports adjustable overload, short time delay, instantaneous and ground fault protection. It can measure voltage, current, power and other electrical parameters, and support communication networking. It will automatically cut off the circuit under fault conditions to protect cables, transformers and downstream electrical equipment.

Specifications

Model: PGL36100U33A Brand: Square D (Schneider Electric) Series: PowerPacT P Frame: P-Frame Poles: 3P Rated current: 1000A Rated voltage: 600VAC Trip unit: Micrologic 5.0 Interrupt capacity: 18kA@600VAC Mounting: Bolt-on fixed type Termination: Lug terminals Certification: UL, CSA, CE

Components & Diagnostics

Electronic trip unit, current transformer, main contact assembly, arc extinguishing chamber, operating handle, communication interface. Common faults: false tripping, contact overheating, trip unit failure, communication abnormal.

Product Brief

PGL36100U33A molded case circuit breaker, Square D low voltage power distribution spare widely used for industrial main distribution cabinets and large branch circuit protection.
