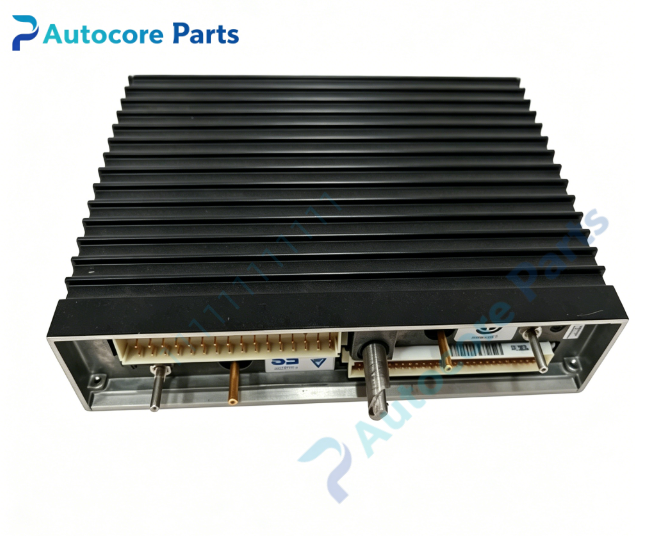

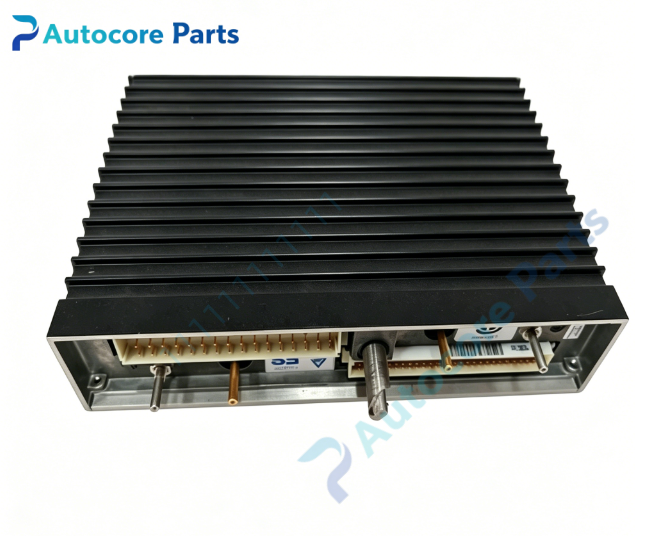

Triconex 3401 TMR Supervised Digital Output Module

Technical Specifications

Model:3401(DO3401)

Brand:Triconex

Product Type:TMR triple modular redundant supervised digital output module

Channel Count:16 digital output channels

Nominal Output Voltage:24VDC

Operating Voltage Range:15‑30VDC,absolute maximum 33VDC

Output Current:3.0A typical per channel,self‑limiting max 4.8A;degraded mode typical 1.5A

Reverse Voltage Tolerance:‑0.6VDC maximum

Leakage Current(OFF state):＜1mA

Isolation:500VDC functional‑earth isolation

Architecture:2‑out‑of‑3 TMR hardware voting,three independent signal processing paths

Diagnosis:Loop‑back supervision,open‑circuit,short‑circuit,loss‑of‑field‑power fault detection

Safety Level:SIL3 IEC61508 TÜV certified

Feature:Hot‑swap supported,hot‑spare standby module compatible,per‑channel self‑limiting over‑current protection,front‑panel PASS/FAULT/ACTIVE LED plus per‑point channel indicator

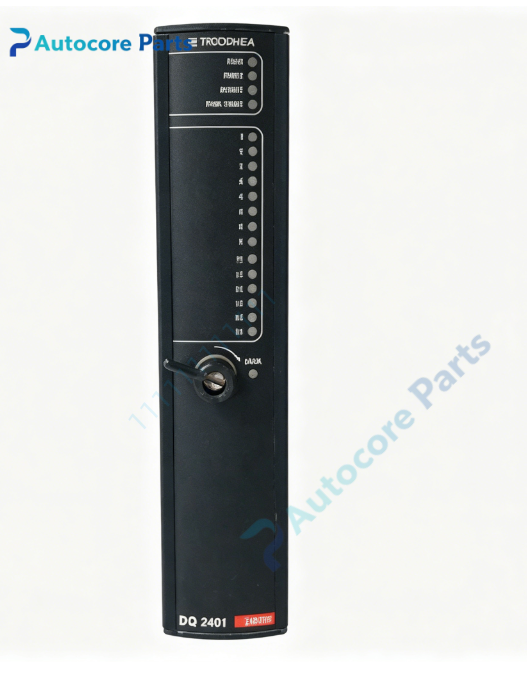

System Compatibility:Triconex Trident SIS system;mating baseplate 2401 / 2404

Remark:Must install with matched baseplate;legacy EOL spare component

Module Form:Standard rack plug‑in module

Weight:2.10 kg

Dimension:267 mm×107 mm×302 mm

Protection Grade:IP20

Certification:SIL3,TÜV,CE

Working Temperature:‑40℃ ~ +70℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Petrochemical,oil & gas,power plant SIS safety system,drive field solenoid valves,relays,alarm devices and safety actuators,system maintenance and spare‑part replacement.

Product Details

3401 also named DO3401,is TMR triple‑modular‑redundant supervised digital output module for Triconex Trident SIS safety instrumented system. It receives control commands from main processor and outputs switching signals to field safety actuators.

16‑channel supervised output design,each channel adopts self‑limiting over‑current protection. Adopts 2oo3 hardware voting mechanism,three independent circuit paths process control signals respectively,single‑path hardware fault will not affect module normal operation. Built‑in loop‑back supervision circuit,detects open‑circuit,short‑circuit and field power loss fault conditions. Supports hot‑spare redundant backup configuration.

Hot‑swap design allows module replacement without SIS system shutdown. Front‑panel multi‑LED indicates module running,fault,active and per‑point channel status. Must cooperate with dedicated baseplate 2401 or 2404 for field wiring. Widely deployed in petrochemical,oil‑gas and thermal‑power Trident SIS safety racks for safety‑critical actuator driving.

Note:This is legacy EOL spare component,widely used for safety system spare‑part replacement.
