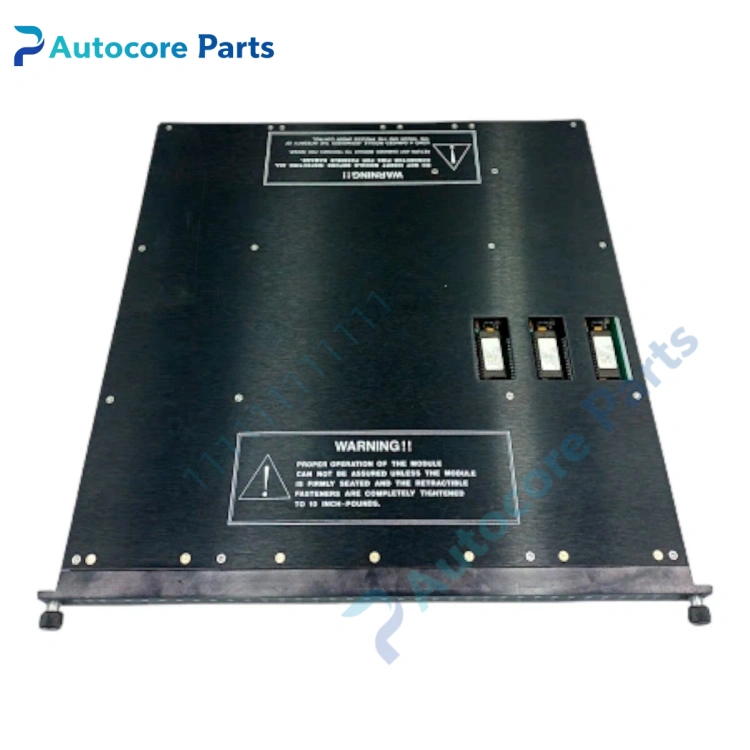

Triconex 3531E Digital Input Module

Feature & Principle

It is a simplified non-commoned digital input module for Tricon TMR safety system. It collects 115VAC/DC discrete status signals from field sensors and switches, transmits data to the main processor via backplane bus. It supports hot-swap replacement without system shutdown, provides signal isolation for noise suppression. It is widely used in ESD, fire and gas protection loops in hazardous process plants. This legacy module is mainly used as maintenance spare.

Specifications

Model: 3531E Brand: Triconex Channel: 32 digital input channels Input rating: 115V AC/DC Structure: Non-commoned, simplified TMR I/O Compatible system: Tricon Safety Instrumented System Function: Hot swappable Safety level: SIL3 Installation: Standard Tricon rack slot mount Application: Petrochemical, oil & gas, power plant ESD cabinet Certification: CE, TUV

Components & Diagnostics

Input isolation circuit, signal acquisition chip, backplane connector, status LED, surge protection circuit. Common faults: channel no detection, backplane communication failure, signal drift, module offline.

Product Brief

3531E digital input module, Tricon safety system discrete signal acquisition spare widely used for ESD cabinet overhaul and replacement.
