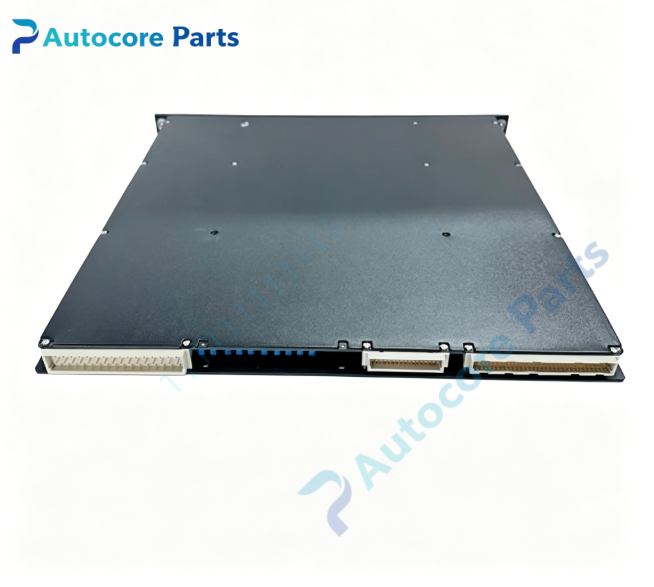

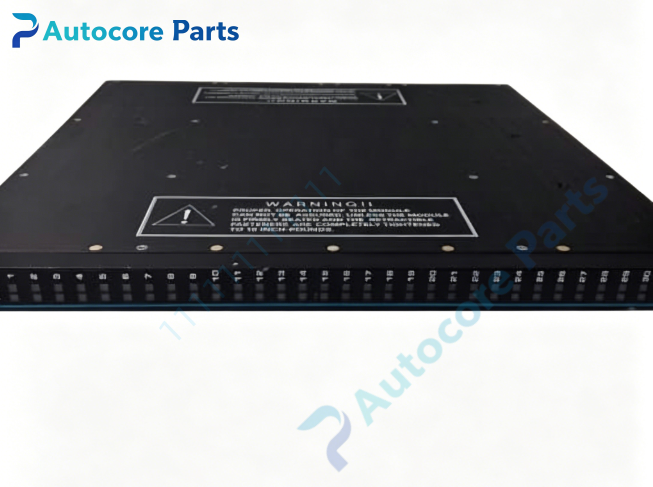

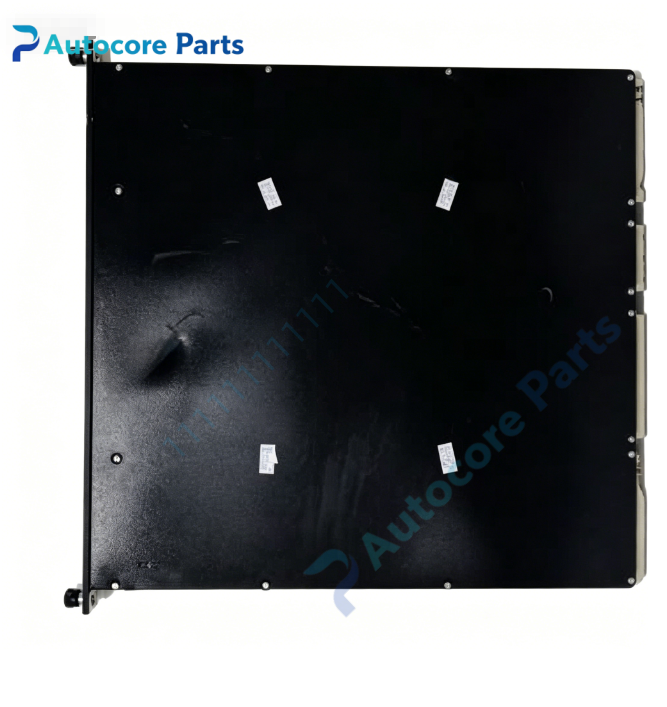

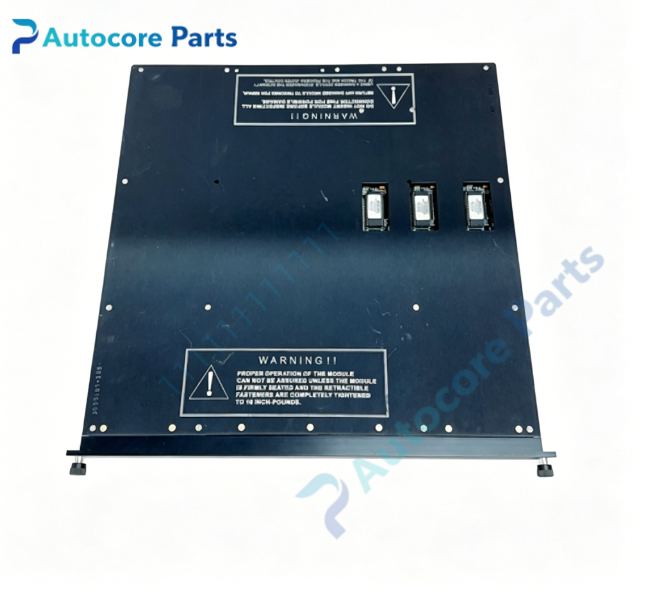

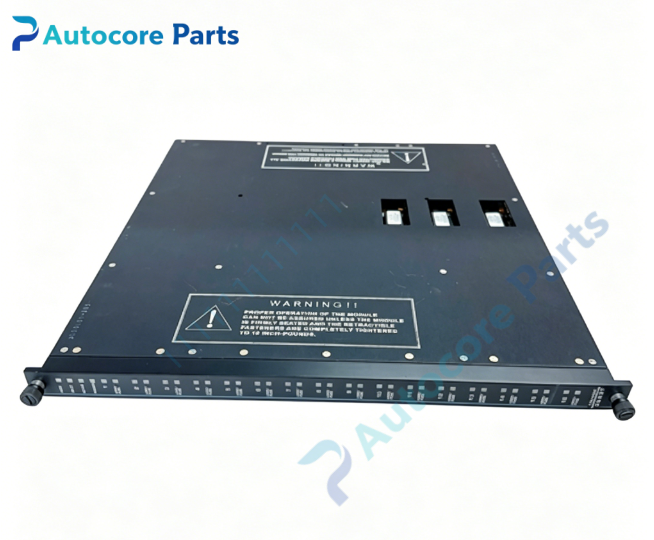

Triconex 3625 TMR Supervised Digital Output Module

Technical Specifications

Model:3625

Brand:Triconex

Product Type:TMR triple modular redundant supervised digital output module

Channel Count:32 commoned digital output channels

Output Voltage:16‑32VDC nominal 24VDC,36VDC absolute maximum withstand

Current Rating:1.7A continuous per channel;7A surge within 10ms

Minimum Load Current:10mA

Max Leakage Current:4mA per channel

Voltage Drop:＜2.8VDC typical @1.7A

Isolation:Point‑to‑point isolation 1500VDC

Power Consumption:＜13W,backplane powered

Architecture:2‑out‑of‑3 TMR hardware voting,three independent signal processing paths

Diagnosis:Supervised load monitoring,open‑circuit,short‑circuit,missing‑load detection

Safety Level:SIL3 IEC61508 TÜV certified

Indicator:Front‑panel PASS,FAULT,LOAD,ACTIVE LED;per‑point channel status indicator

Feature:Hot‑swap supported,self‑protecting output without external module‑side fuses

System Compatibility:Tricon Classic SIS v9/v10/v11

Remark:Must install inside Tricon rack,match Tricon CPU,power supply and backplane;legacy EOL spare component

Module Form:Standard rack plug‑in module

Weight:2.50 kg

Dimension:490 mm×453 mm×68 mm

Protection Grade:IP20

Certification:SIL3,TÜV,CE

Working Temperature:‑40℃ ~ +70℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Petrochemical,oil & gas,power plant ESD,F&G,BMS safety interlock system,drive solenoid valves,relays and field safety actuators,system maintenance and spare‑part replacement.

Product Details

3625 is TMR triple‑modular‑redundant supervised digital output module for Triconex Tricon Classic safety instrumented system. It receives safety‑logic commands from main processor and outputs switching signals for field safety actuators.

32‑point common‑end output with point‑to‑point galvanic isolation; adopts 2oo3 hardware voting mechanism,each channel controlled by three independent circuit paths,single‑path fault will not trigger unsafe output. Built‑in load supervision circuit,capable of detecting open‑circuit,short‑circuit and missing‑load fault conditions. Output circuit adopts self‑protection design,no external fuse required on module body.

Hot‑swap design allows module replacement without SIS system shutdown. Front‑panel multi‑LED indicates module running,fault,load abnormal and channel on‑off status. Widely deployed in petrochemical,oil‑gas and thermal‑power SIS safety racks for safety‑critical solenoid valve driving.

Note:This is legacy EOL spare component,widely used for safety system spare‑part replacement.
