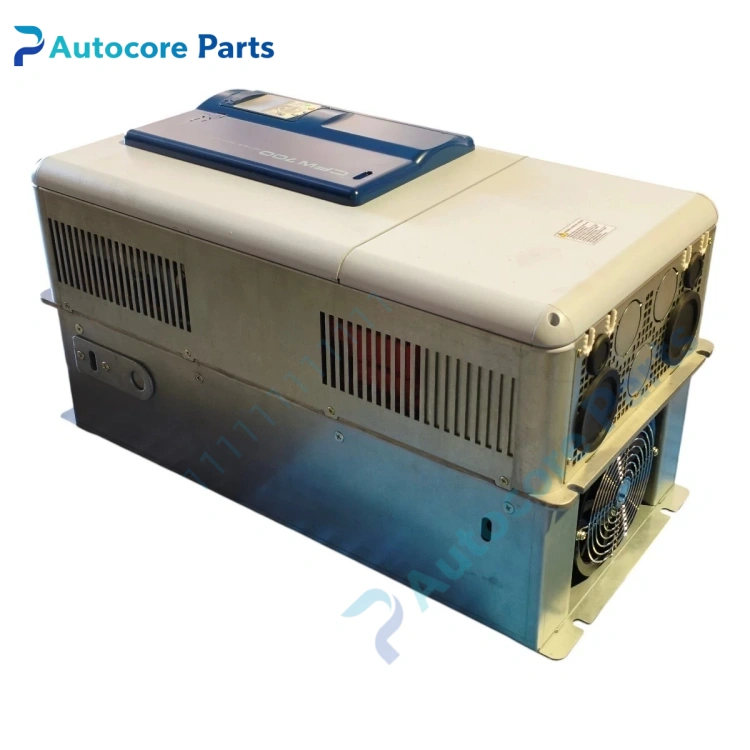

WEG CFW700 Frequency Inverter

Feature & Principle

It adopts WEG Vectrue vector control technology. It can realize open-loop sensorless torque control or closed-loop high-precision speed regulation with encoder feedback. The integrated SoftPLC function can complete simple logic control without external PLC. It supports PID constant pressure regulation, flying start, power ride-through function. The HVAC version integrates DC bus inductor to meet harmonic standard. It adopts plug-and-play expansion modules, RS485 Modbus communication, intelligent fan cooling monitoring.

Specifications

Model: CFW700 Brand: WEG Control mode: V/F, sensorless vector, closed-loop vector Voltage: 220V single/three-phase, 380~480V three-phase Power range: 0.75 ~ 132 kW I/O: 8DI, 5DO, analog input/output Communication: Isolated RS485 Modbus RTU Protection class: IP20 Function: SoftPLC, PID, flying start, ride-through Application: Pump, fan, conveyor, crane, mixer, HVAC system Certification: CE, UL

Components & Diagnostics

Power module, main control board, cooling fan, operation keypad, current transformer, terminal block, braking resistor interface. Common faults: fan aging, overheat alarm, ground fault, communication interruption, parameter loss, IGBT damage.

Product Brief

CFW700 vector inverter, WEG legacy drive spare widely used for water supply, HVAC and general automation control cabinet maintenance and replacement.
