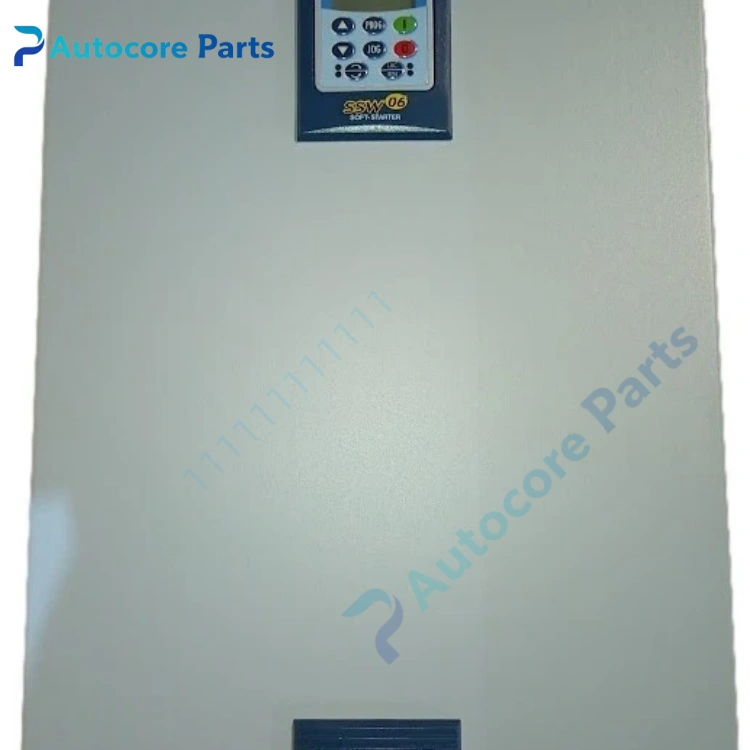

WEG SSW060604T2257PSZ Soft Starter

Feature & Principle

It is a microprocessor digital soft starter of WEG SSW06 series. It adjusts the thyristor firing angle to change the output voltage, realizing smooth ramp start and stop of three-phase asynchronous motor, reducing starting inrush current and mechanical impact. Integrated bypass contactor will short the thyristor after motor full-speed operation to reduce heat loss. It has torque control, pump anti-water hammer function, thermal overload, phase loss, unbalance, overvoltage and undervoltage protection. Optional Modbus, Profibus communication card for upper system monitoring.

Specifications

Model: SSW060604T2257PSZ Brand: WEG Rated current: 604 A Main circuit voltage: 220~575V AC Control power: 94~253V AC Built-in bypass contactor: Yes Start mode: Voltage ramp, current limit, torque control, pump control Protection: Thermal overload, phase loss, phase unbalance, over/under voltage, PTC motor temperature Communication: Modbus RTU, Profibus-DP optional Protection class: IP00 Application: Pump, fan, blower, compressor, crusher, mixer Certification: CE, UL

Components & Diagnostics

SCR thyristor power module, main control board, bypass contactor, detachable dual display keypad, current transformer, power terminal. Common faults: SCR breakdown, bypass contactor burnout, control board failure, parameter loss, overheating alarm.

Product Brief

SSW060604T2257PSZ soft starter, WEG obsolete soft start spare widely used for water supply, metallurgy and mining motor control cabinet maintenance and replacement.
