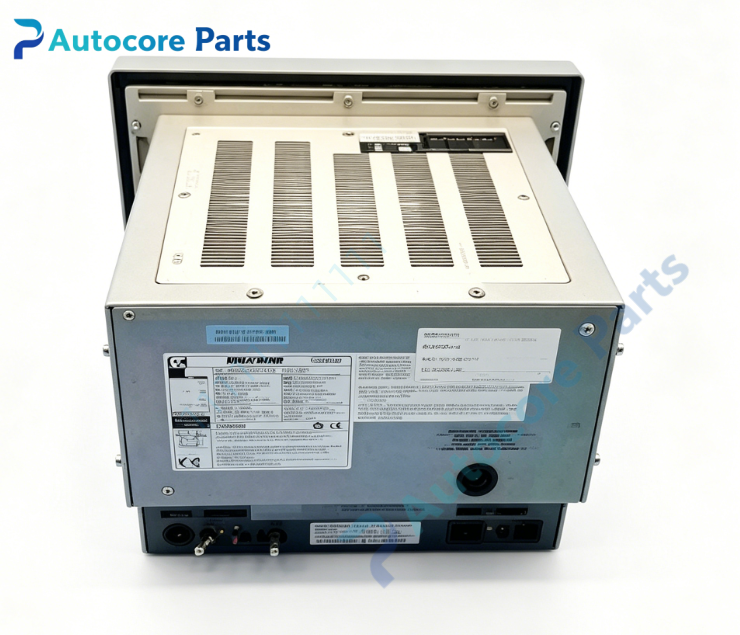

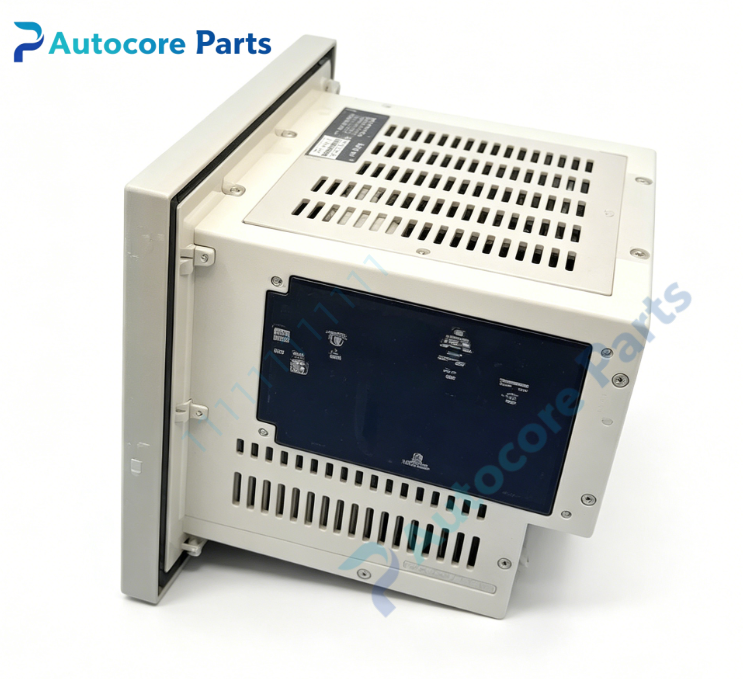

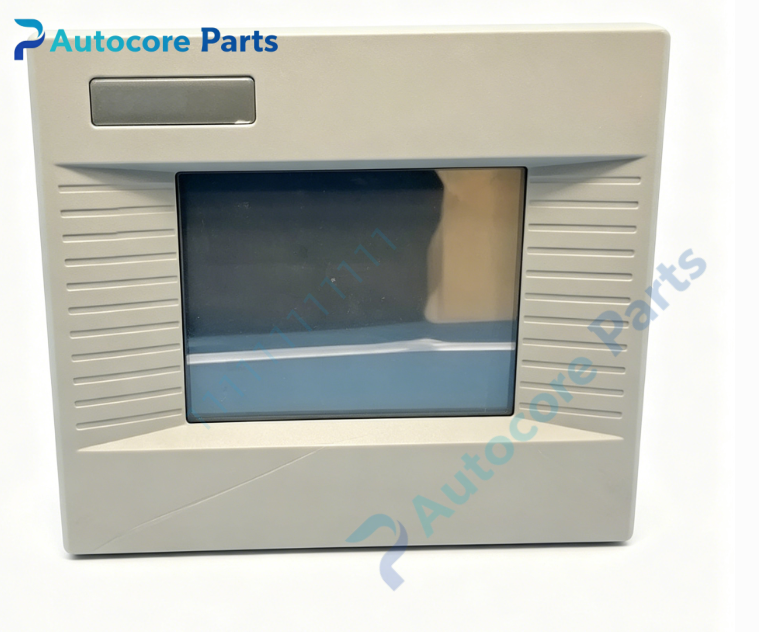

XYCOM 2000T Operator Interface Panel

Technical Specifications

Model:2000T，P/N:97957-101 / 97957-121

Brand:XYCOM

Product type:Panel Mount Touchscreen Operator HMI Panel

Power supply:90~250VAC auto-switching,47~63Hz

Display:Industrial color LCD,touchscreen input

Communication:RS232 serial port,optional ethernet

Mounting:Panel cutout installation

Weight:2.0kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Front panel:NEMA4/4X/12

Certification:CE,UL

System compatibility

2000T belongs to XYCOM 2000 series operator touch panel.

It can communicate with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via serial communication.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Real-time display process value,trend curve,alarm list and system status.

Touchscreen operation for setpoint adjustment,mode switching,alarm acknowledge and system reset.

Serial RS232 data exchange with VME controller or PLC.

Local alarm indication via front panel LED.

Built-in self-diagnosis function to detect communication failure and hardware fault.

Support SoftScreen HMI configuration software for screen editing and program download.

Installation

Embed the panel into cabinet cutout and fasten mounting clips.

Connect 90~250VAC power cable and protective earth wire.

Wire RS232 serial cable to VME SBC or DCS controller.

Power on,set communication baud rate and station address.

Download HMI screen project,test data reading and touch operation.

Interface

AC power terminal,RS232 serial port,touchscreen,LED indicators:RUN,COM,ALARM.

Feature

NEMA4/4X/12 sealed front panel,dust and splash resistance for industrial field environment.

Integrated LCD display and touchscreen,all-in-one operator terminal design.

Adopt SoftScreen configuration platform,easy screen programming for legacy automation system.

Discontinued obsolete HMI panel,supply only for old production system spare replacement.

Rugged mechanical structure,shock and vibration resistance for continuous long-time operation.

Diagnostic

Check RUN,COM,ALARM LED;no display:check AC power supply and fuse;communication lost:verify serial wiring,baud rate and address setting;touch no response:inspect touchscreen circuit and connector.

Product Brief

XYCOM 2000T is legacy panel mount touch operator HMI panel.

It serves as local touch operation and monitoring terminal for turbine and compressor control system,widely used for spare replacement in petrochemical and power plant old DCS renovation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
