XYCOM 2050T Operator Interface Panel

Technical Specifications

Model:2050T

Brand:XYCOM

Product type:Panel Mount Touchscreen Operator HMI Panel

Power supply:90~250VAC auto-switching,47~63Hz

Display:12 inch industrial color TFT LCD,resistive touchscreen

Communication:RS232,RS485 serial port,optional ethernet

Mounting:Panel cutout installation

Weight:2.6kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Front panel:NEMA4/4X/12

Certification:CE,UL

System compatibility

2050T belongs to XYCOM 2000 series upgraded operator touch panel.

It can communicate with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via serial communication.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Real-time display process value,trend curve,alarm list and system running status.

Touchscreen operation for setpoint adjustment,mode switching,alarm acknowledge and system reset.

RS232/RS485 serial communication to exchange data with VME controller or PLC.

Local alarm indication via front panel LED indicators.

Built-in self-diagnosis function to detect communication failure and hardware fault.

Support SoftScreen HMI configuration software for screen editing and project download.

Installation

Embed the panel into cabinet cutout and fasten mounting clips.

Connect 90~250VAC power cable and protective earth wire.

Wire RS232/RS485 serial cable to VME SBC or DCS controller.

Power on,set communication baud rate,parity and station address.

Download HMI screen project,test data reading and touch operation.

Interface

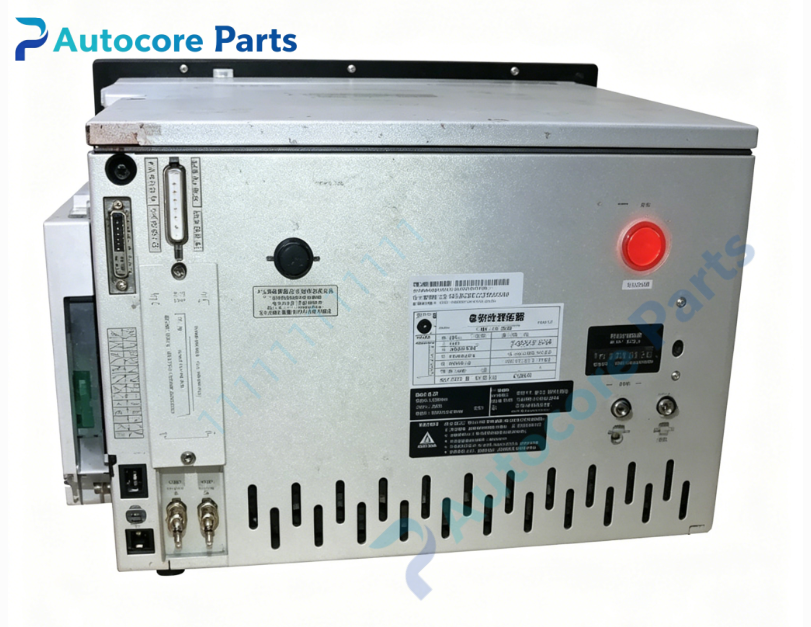

AC power terminal,RS232,RS485 port,touchscreen,LED indicators:RUN,COM,ALARM.

Feature

NEMA4/4X/12 sealed front panel,dust and splash resistance for industrial field environment.

12-inch large color LCD,resistive touch,adapt to workshop vibration and dust environment.

Multiple serial ports available,support connection to multiple legacy controllers.

Discontinued obsolete HMI panel,supply only for old production system spare replacement.

Rugged mechanical structure,shock and vibration resistance for continuous long-time operation.

Diagnostic

Check RUN,COM,ALARM LED;no display:check AC power supply and fuse;communication lost:verify serial wiring,baud rate and address setting;touch no response:inspect touchscreen circuit and connector.

Product Brief

XYCOM 2050T is legacy 12-inch panel mount touch operator HMI panel.

It serves as local touch operation and monitoring terminal for turbine and compressor control system,widely used for spare replacement in petrochemical and power plant old DCS renovation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
