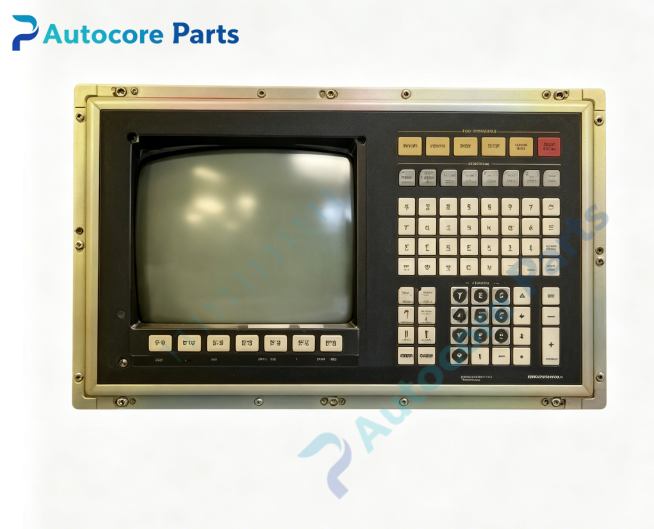

XYCOM 4810-KYB Industrial Membrane Keypad

Technical Specifications

Model:4810-KYB

Brand:XYCOM

Product type:Industrial Membrane Keypad Replacement Part

Compatible Model:XYCOM 4810E,4810ER,4810E-LF

Input type:Relegendable membrane function keys

Connection:Flat ribbon cable connector

Mounting:Front panel embedded installation

Weight:0.4kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Front panel rating:NEMA4/4X,waterproof and dustproof membrane surface

Certification:CE,UL

System compatibility

4810-KYB belongs to XYCOM 4800 series spare parts.

It is matched with XYCOM 4810 series CRT operator terminal.

Compatible with turbine,compressor and legacy DCS control systems.

Commonly used for power plant,oil & gas,petrochemical old HMI keypad maintenance and spare replacement.

Function

Complete set of custom function keys and numeric keys for process operation.

Transmit key trigger signal to 4810 series host terminal via flat cable.

Realize parameter setpoint adjustment,mode switching,alarm acknowledge and system operation.

Membrane anti-corrosion surface,suitable for industrial harsh environment long time operation.

Installation

Disassemble the front panel of 4810 operator terminal.

Remove old damaged keypad and clean panel mounting area.

Install new 4810-KYB membrane keypad,align ribbon cable connector.

Fasten panel assembly,power on the terminal and test all keys function.

Interface

Flat ribbon cable,connector matched with 4810 series mainboard.

Feature

NEMA4/4X sealed membrane surface,dust and splash resistance.

Relegendable key area,can re-mark function definition on site.

Direct replacement spare part for 4810E /4810ER operator terminal.

Discontinued obsolete spare part,supply only for old production system maintenance.

Thin membrane design,vibration resistant,long service life for continuous industrial operation.

Diagnostic

Key no response:check ribbon cable connection;check membrane circuit damage;inspect mainboard input channel.

Individual key failure:membrane local circuit wear or corrosion,directly replace 4810-KYB.

Product Brief

XYCOM 4810-KYB is dedicated replacement membrane keypad spare part for XYCOM 4810 series CRT operator terminal.

It is used to replace the original failed keypad of 4810E,4810ER,4810E-LF,applied in turbine and compressor control system,petrochemical and power plant legacy DCS renovation.
