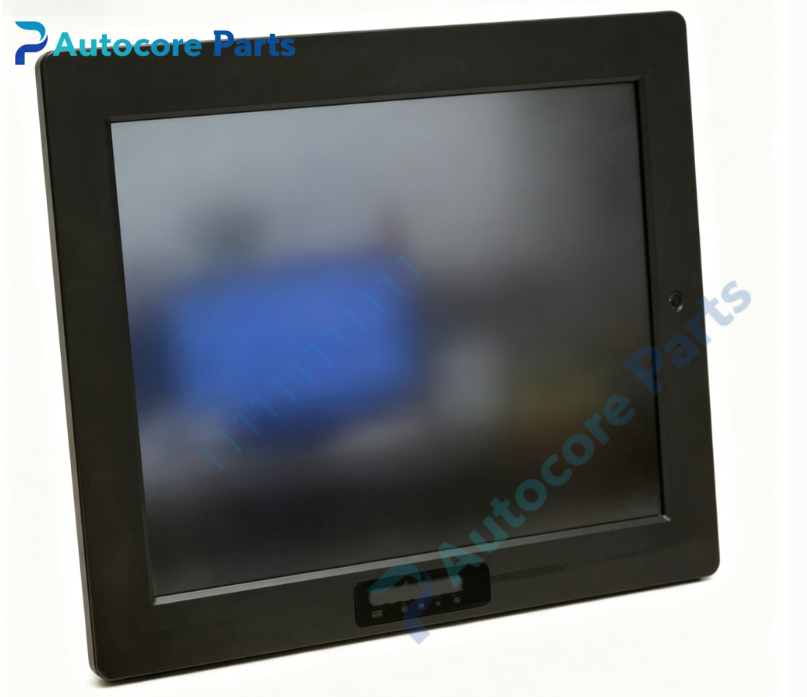

XYCOM 5019 Industrial Flat Panel Monitor

Technical Specifications

Model:5019

Brand:XYCOM

Product type:19 Inch Panel Mount Industrial Flat Panel LCD Monitor

Power supply:100~240VAC,50/60Hz;Optional 18~30VDC

Display:19 inch SXGA TFT LCD,1280*1024,300cd/m² brightness,700:1 contrast

Touch:Optional 5-wire analog resistive touchscreen(RS232 or USB interface)

Video Input:DVI,VGA,S-video,Composite video

Weight:9.52kg

Mounting depth:72.39mm(2.85 inch)

Operating temperature:0℃ ~ +55℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Front panel:NEMA4/4X/12,IP65 when properly installed

Certification:CE,UL,Class I Division2,Class II Division2

System compatibility

5019 belongs to XYCOM 5000 series industrial flat panel monitor.

It can connect with XYCOM 3000/3500 series panel PC and XYCOM VME bus SBC such as XYCOM 1840.

Compatible with turbine,compressor and legacy DCS control systems via VGA/DVI video signal.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Receive multi-channel video signals and display real-time process graphics,trends and alarm screens.

Optional resistive touchscreen for local touch operation and parameter input.

Built-in image scaling engine,automatically adapt different resolution input signals.

Front panel OSD menu for brightness,contrast and image adjustment,rear lock-out switch to prevent misoperation.

Support VESA 100mm mounting arm installation,can be fitted with thin client or node PC on rear side.

Power-on self-test for display hardware detection.

Installation

Embed the unit into cabinet panel cutout and fasten mounting clips.

Connect AC or 24VDC power cable and protective earth wire.

Wire video cable(VGA/DVI) to industrial panel PC or VME controller graphics output.

Power on,adjust OSD display parameters,lock OSD function via rear switch after commissioning.

Test display and touch function(if touch version).

Interface

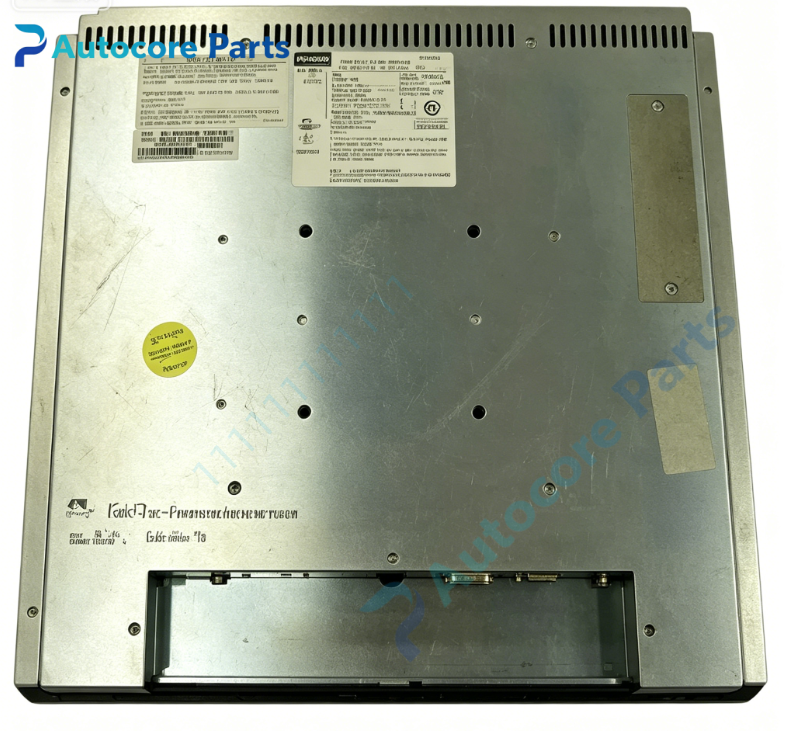

Power terminal,DVI port,VGA port,S-video,composite video,touch RS232/USB(optional),front OSD control buttons,LED indicators:PWR,STATUS.

Feature

Shallow mounting depth design,save cabinet inner space.

Four kinds of video input interface,wide compatibility with different industrial host.

NEMA4/4X sealed front panel,dust and splash resistance for factory harsh environment.

Metal enclosure,stainless steel bezel optional.

Discontinued legacy industrial monitor,supply only for old production system spare replacement.

Designed for continuous long-time operation in petrochemical and power plant.

Diagnostic

Check PWR and STATUS LED;display no signal:check video cable and host graphics output;touch abnormal:inspect touch communication port and touch driver.

Product Brief

XYCOM 5019 is 5000 series 19-inch rugged industrial flat panel monitor.

It is matched with XYCOM VME control system and industrial panel computer for on-site process picture display and touch operation,widely used as spare parts for turbine and petrochemical old DCS control system renovation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
