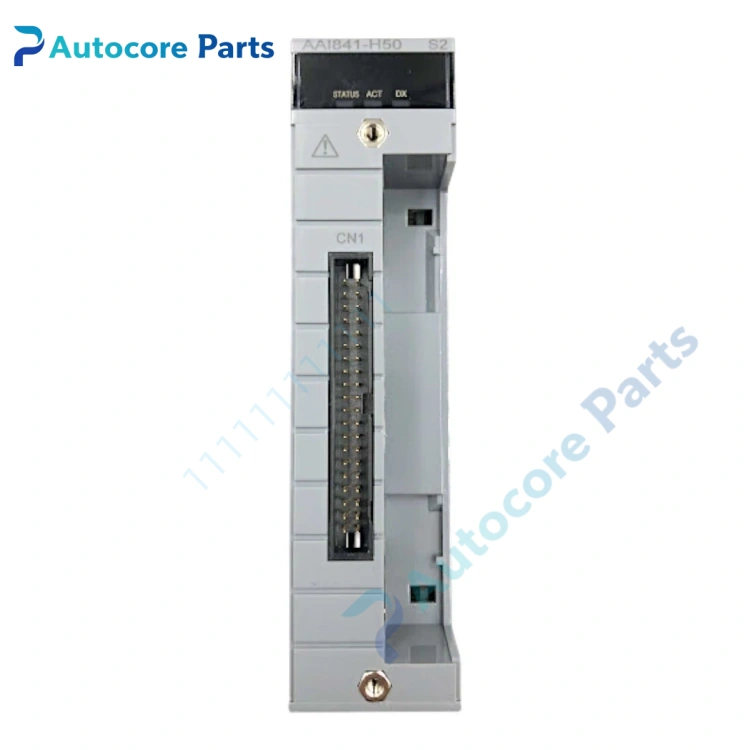

Yokogawa AAI841 Analog I/O Module

Feature & Principle

It is a combined analog input and output module for Yokogawa CENTUM VP DCS FCS. It receives 4-20mA signals from field transmitters and converts analog signals into digital data for the controller. Meanwhile it converts control commands from FCS into 4-20mA output signals to drive control valves. HART communication version supports reading HART variable and device diagnosis. It can be configured as dual redundant to improve reliability for critical control loops. It communicates via FCS backplane bus and matches dedicated terminal board.

Specifications

Model: AAI841 Brand: Yokogawa Channel: 8 analog input + 8 analog output Signal: 4-20mA DC Isolation: Non-isolated Protocol: HART optional Redundancy: Support dual redundant installation Compatible system: CENTUM VP FCS Installation: FCS rack slot mount Application: Petrochemical, chemical, power plant, oil & gas process control cabinet Certification: CE

Components & Diagnostics

Analog signal conditioning circuit, A/D and D/A converter, backplane bus interface, status LED indicators, surge protection circuit. Common faults: signal drift, channel no output, backplane communication failure, HART communication loss.

Product Brief

AAI841 analog I/O module, Yokogawa CENTUM VP combined analog measurement and control spare widely used for process control cabinet overhaul and replacement.
