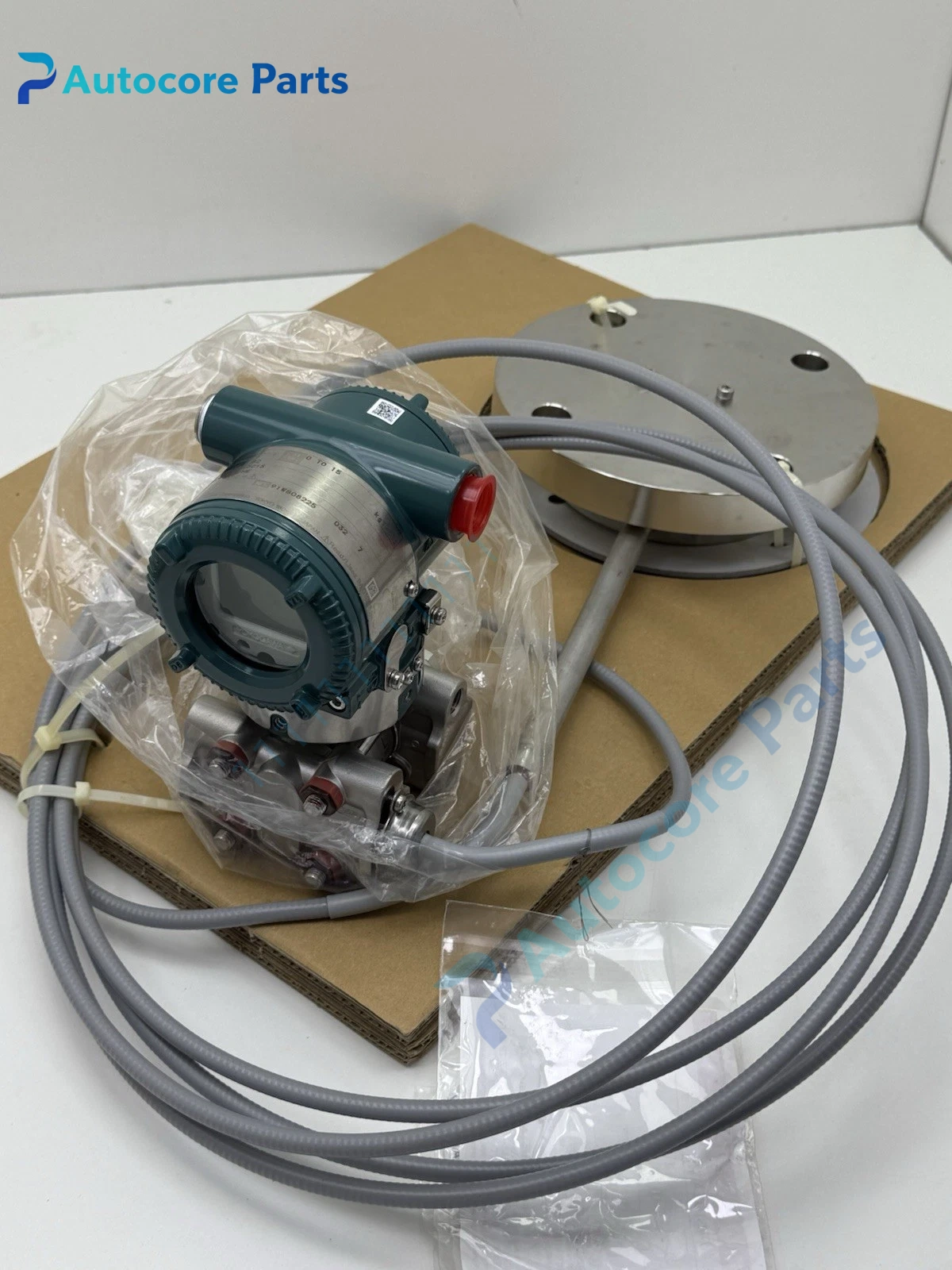

Yokogawa EJA438E-JASCG-917DB-WA13C1SW00-AA25 Diaphragm Seal Pressure Transmitter Unit

Feature & Principle

This transmitter uses single crystal silicon resonant pressure sensing technology. The process pressure acts on the remote diaphragm, transmits pressure to the internal sensor through capillary filling liquid, converts pressure signal into 4-20mA analog signal with HART digital protocol. It supports remote parameter configuration and self-diagnosis, effectively avoids medium blocking, corrosion and high temperature impact on the sensor body.

Specifications

Model: EJA438E-JASCG-917DB-WA13C1SW00-AA25 Brand: Yokogawa Series: EJA438E Signal output: 4-20mA DC + HART7 Accuracy: ±0.2%FS Response time: 200ms Structure: Flush flange remote diaphragm seal with capillary Certification: SIL2, CE, Ex explosion-proof optional Protection grade: IP67

Components & Diagnostics

DPharp sensing module, electronic amplifier board, capillary tube, isolation diaphragm, flange assembly, local indicator. Common faults: diaphragm damage, capillary leakage, signal drift, HART communication failure.

Product Brief

EJA438E diaphragm seal pressure transmitter, Yokogawa process instrument spare widely used in chemical, oil & gas, pharmaceutical and food industry tank pressure and liquid level measurement.
