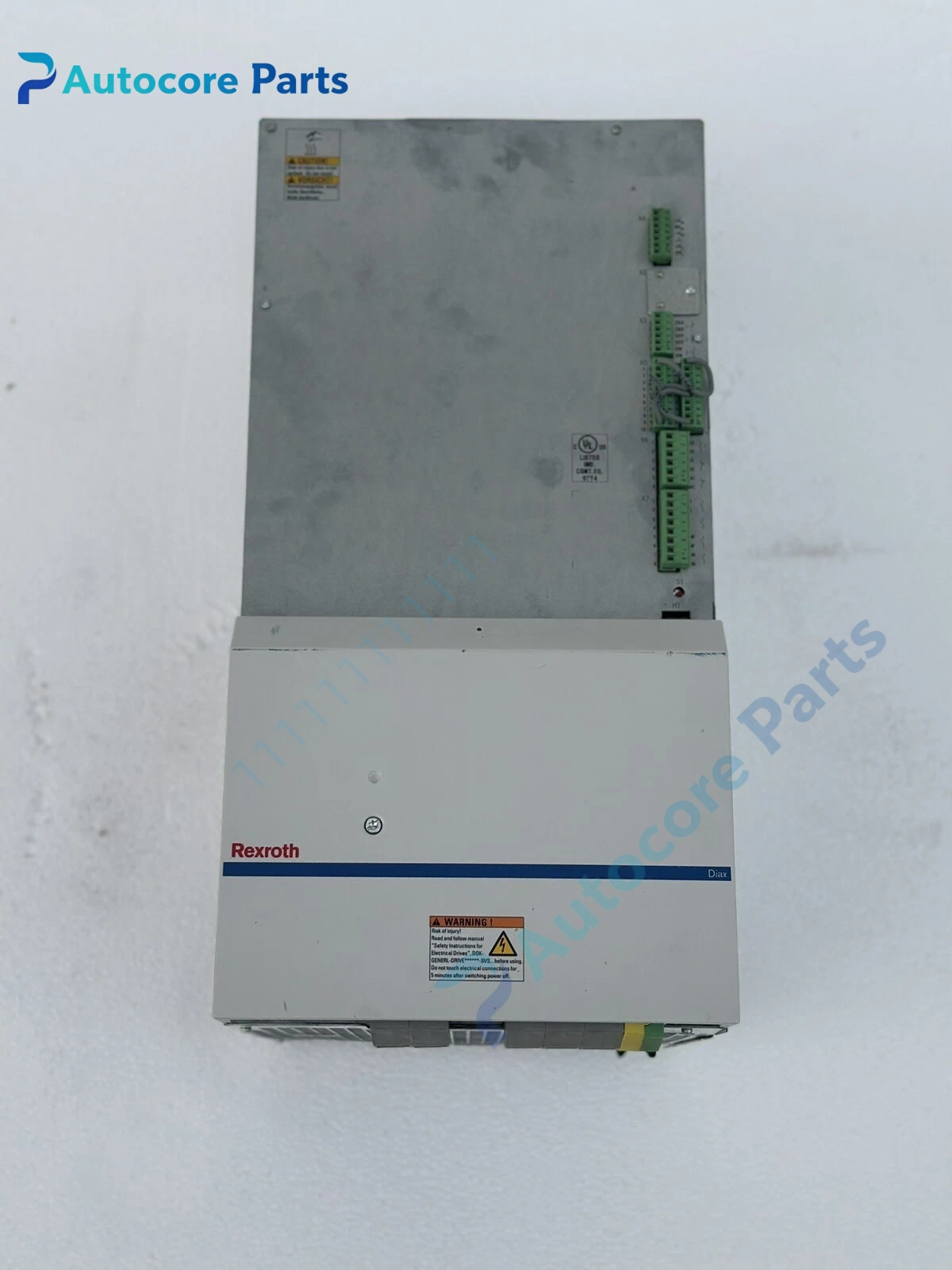

2-W075N Servo Drive Unit

Feature & Principle

It works with shared DC bus power supply module. It receives motion command from upper controller via SERCOS bus, outputs adjustable current and frequency to drive servo motor. It collects encoder feedback signal to realize closed-loop position and speed control, with built-in overcurrent, overheat and STO safety protection.

Specifications

Model: 2-W075N Brand: Bosch Rexroth Indramat Series: HDS DIAX04 Communication: SERCOS interface Cooling: Forced air cooling Mounting: Rack plug-in Status: Obsolete legacy model Certification: CE

Components & Diagnostics

IGBT power stage, control motherboard, SERCOS communication chip, cooling fan, DC bus terminal, status LED indicator. Common faults: fan failure, power module breakdown, communication dropout, electrolytic capacitor aging.

Product Brief

2-W075N servo drive, Rexroth Indramat legacy spare widely used for printing machine, CNC machine tool and packaging equipment drive cabinet maintenance.
