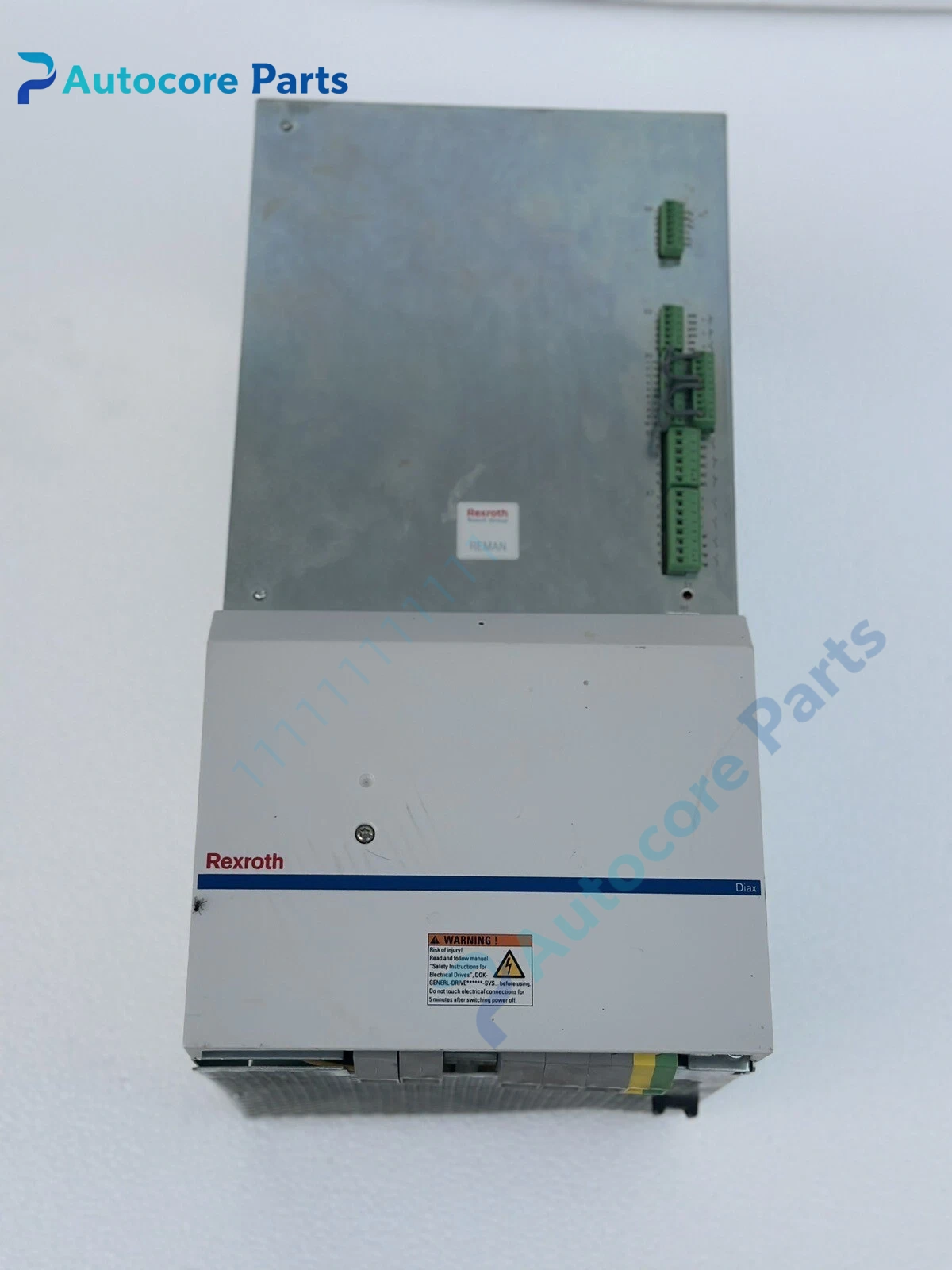

2-W075N Servo Drive Inquiry Item

Feature & Principle

It adopts shared DC bus design. It receives motion instructions via SERCOS fieldbus, outputs adjustable three-phase current to servo motor. Encoder feedback forms closed loop for position and speed control, built-in STO safety protection, overcurrent and overheat protection.

Specifications

Model: 2-W075N Brand: Bosch Rexroth Indramat Series: HDS DIAX04 Peak current: 75A Communication: SERCOS interface Cooling: Forced air cooling Mounting: Rack plug-in Status: Obsolete legacy model Certification: CE, UL

Components & Diagnostics

IGGBT power board, main control board, SERCOS communication circuit, cooling fan, DC bus terminal, status LED. Common faults: electrolytic capacitor aging, fan failure, communication loss, IGBT breakdown.

Product Brief

2-W075N servo drive, Rexroth Indramat legacy spare widely used for printing press, CNC machine and packaging equipment drive cabinet maintenance.
