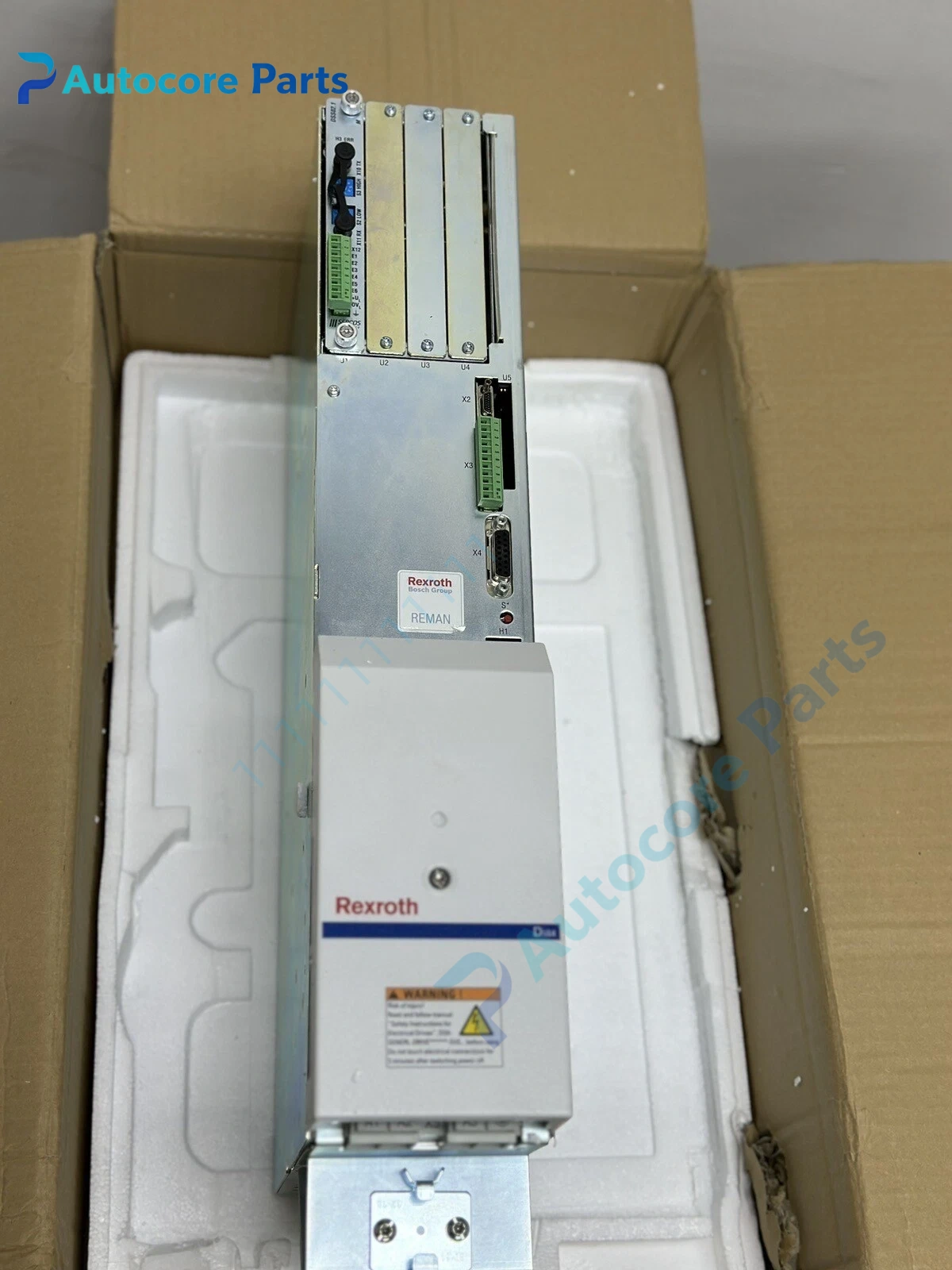

2-W100N-HS12-01-FW Servo Drive Unit

Feature & Principle

It uses shared DC bus architecture. It receives motion commands through SERCOS fieldbus, outputs variable three-phase power to servo motor. Encoder feedback realizes closed-loop speed and position control, integrated STO safety function, overcurrent, overvoltage and overtemperature protection.

Specifications

Model: 2-W100N-HS12-01-FW Brand: Bosch Rexroth Indramat Series: HDS DIAX04 Peak current: 100A Communication: SERCOS interface Cooling: Forced air cooling Mounting: Rack plug-in Status: Obsolete legacy model Certification: CE, UL

Components & Diagnostics

IGBT power board, main control board, SERCOS communication circuit, cooling fan, DC bus terminal, status LED indicator. Common faults: capacitor aging, fan damage, SERCOS communication dropout, IGBT module breakdown.

Product Brief

2-W100N-HS12-01-FW servo drive, Rexroth Indramat heavy-duty motion spare widely used for large printing machines, CNC machine tools and packaging production line drive cabinet maintenance.
