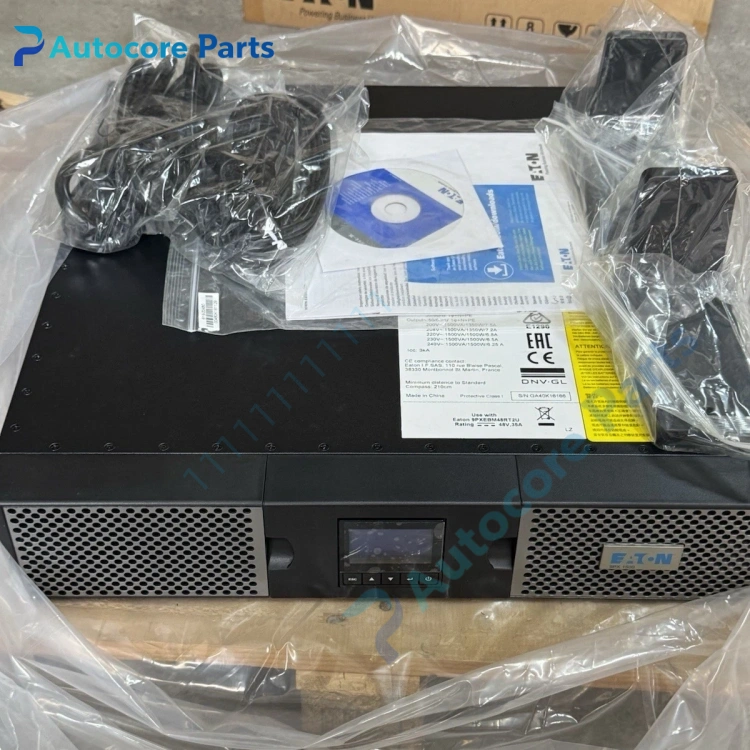

9103-63148 UPS Unit

Feature & Principle

It adopts double conversion online topology. AC input is converted to DC and inverted back to pure sine wave AC output. It can resist vibration, tilt and humidity environment on board. It has zero transfer time during mains failure, supports network monitoring and remote shutdown, provides stable power protection for ship automation, communication and control instruments.

Specifications

Model: 9103-63148 (9PX1500IRTM) Brand: Eaton Capacity: 1500VA / 1350W Input / Output: Single phase Mounting: Rack mount Waveform: Pure sine wave Certification: Marine classification, CE, UL Protection: IP20

Components & Diagnostics

Rectifier inverter power board, main control board, cooling fan, battery compartment, display panel, communication interface. Common faults: fan damage, over-temperature alarm, battery aging, communication offline, output voltage abnormality.

Product Brief

9103-63148 marine UPS, Eaton power spare widely used for ship cabin, offshore platform and marine automation control system power supply maintenance.
