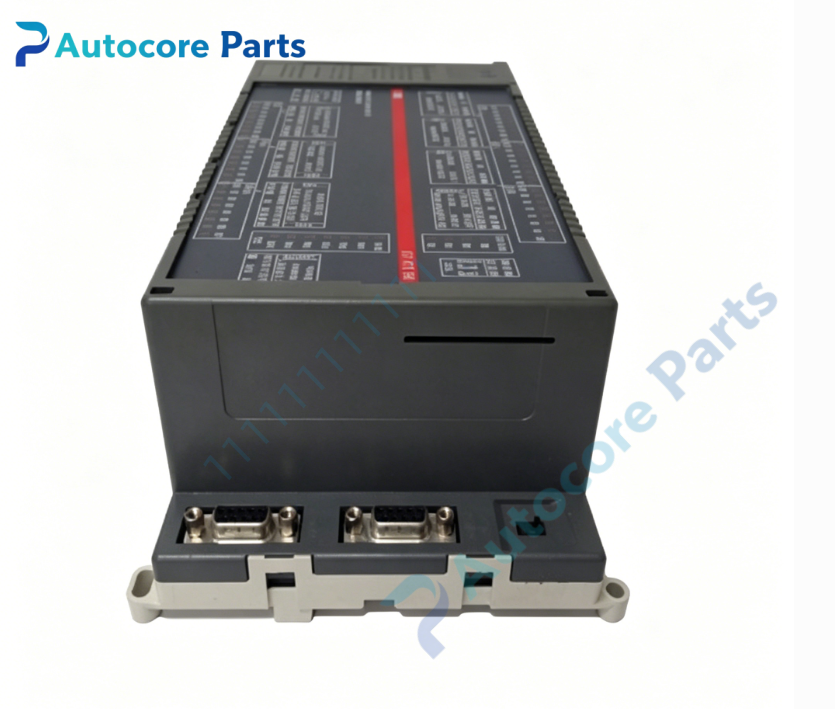

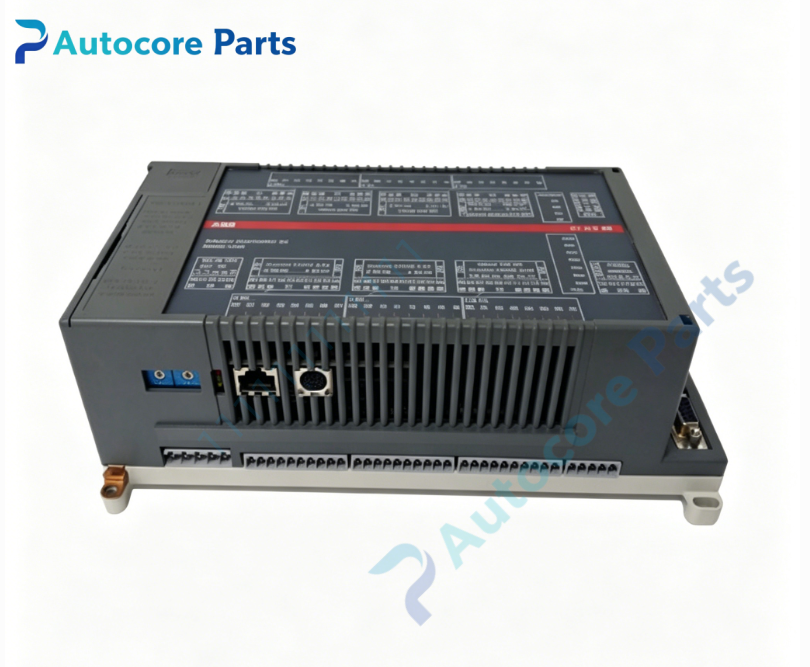

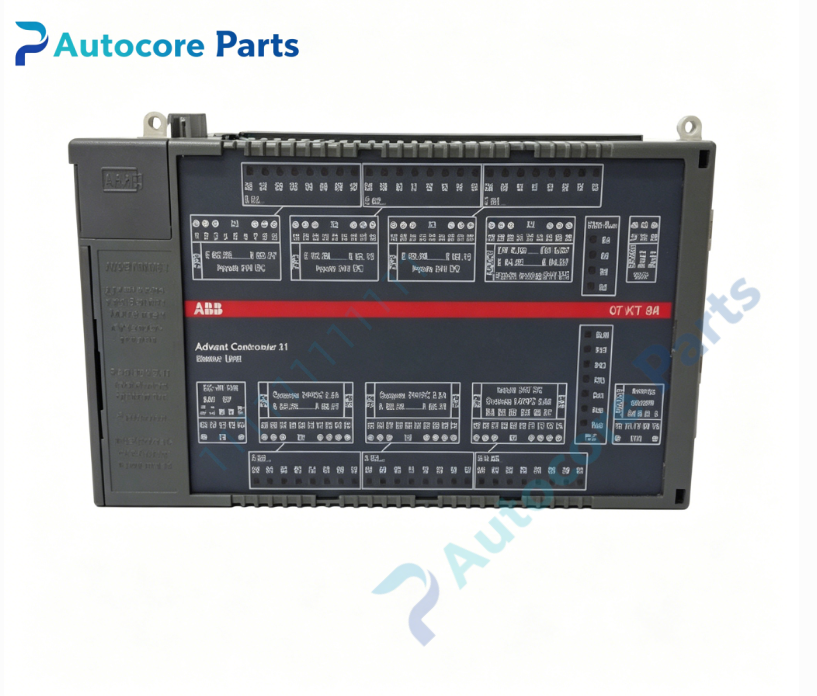

ABB 07KT98 GJR5253100R4278 AC31 S90 PLC Integrated Controller Unit

Technical Specifications

Model: 07KT98

Part Number: GJR5253100R4278

Brand: ABB

Product Type: AC31 S90 integrated PLC basic controller

Matching System: ABB AC31 automation control system

Power Supply: 24VDC, typical 0.55A

Built‑in I/O: 24DI /16DO /8 configurable DC channels, 8AI,4AO

Analog Signal: Voltage, current, Pt100 thermal resistance signal support

Communication Interface: Ethernet port, CS31 system bus, serial Modbus interface

Program Standard: IEC61131‑3 programming standard

Memory: Flash program memory, battery‑backed retain memory

High‑speed Counter: Max 50kHz counting frequency

Installation Method: DIN‑rail mounting

Operating Temperature: 0℃ ~ +55℃, non‑condensing

Protection Class: IP20

Weight: 0.78kg

Dimension: 240mm ×140mm ×85mm

Compatible System: Industrial production line, power auxiliary control, process automation equipment

Core Function: As core integrated controller of AC31 S90 PLC system, execute IEC61131‑3 user control program, complete local I/O signal acquisition and output, realize logic operation, arithmetic processing, high‑speed counting and Ethernet data communication, accomplish automatic control for on‑site industrial equipment.

Product Details

The 07KT98 GJR5253100R4278 is integrated basic controller unit for ABB AC31 S90 PLC system.

This compact all‑in‑one controller integrates CPU, multi‑channel digital and analog I/O inside single housing. It complies with IEC61131‑3 international programming standard and supports multiple programming languages for industrial automation project development.

It collects digital and analog signals from field sensors, executes cyclic logic program scanning, and outputs control signals to drive on‑site actuators. Dual built‑in high‑speed counters support up to 50kHz pulse input for motion‑related applications.

Equipped with Ethernet and serial Modbus interfaces, it realizes data interaction with upper computer, HMI and SCADA system. Battery‑backed memory preserves key process data during power‑off status.

Front‑panel LED indicators show power, run status, fault alarm and I/O channel status, convenient for on‑site inspection and troubleshooting.

Standard DIN‑rail installation simplifies cabinet layout and equipment retrofit work.

Widely applied in legacy AC31 project renovation, power plant auxiliary control, manufacturing and process industry maintenance projects.

It is important spare hardware for PLC system overhaul, control program debugging and defective 07KT98 controller replacement.
