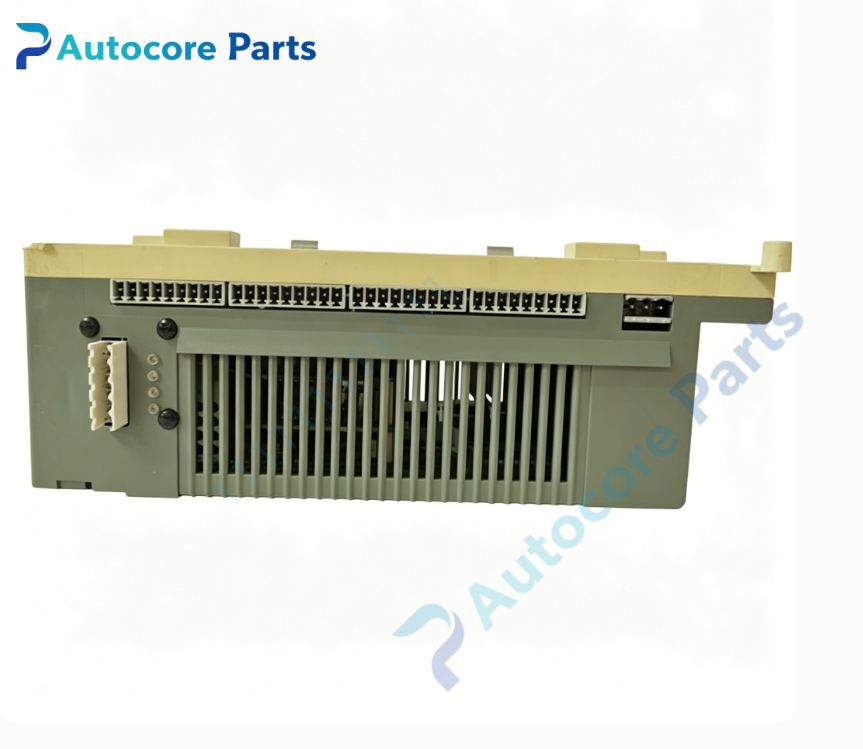

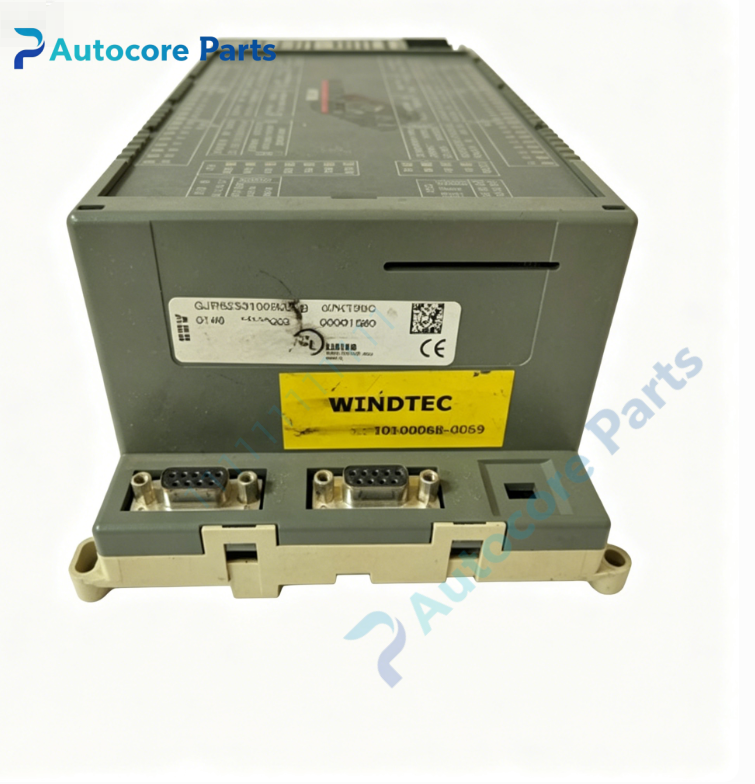

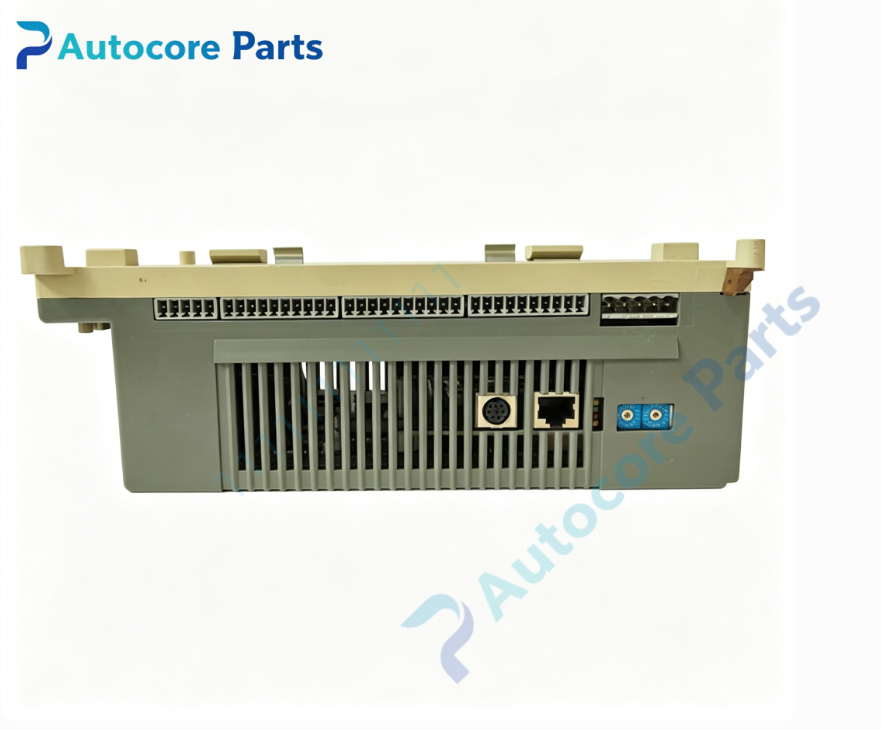

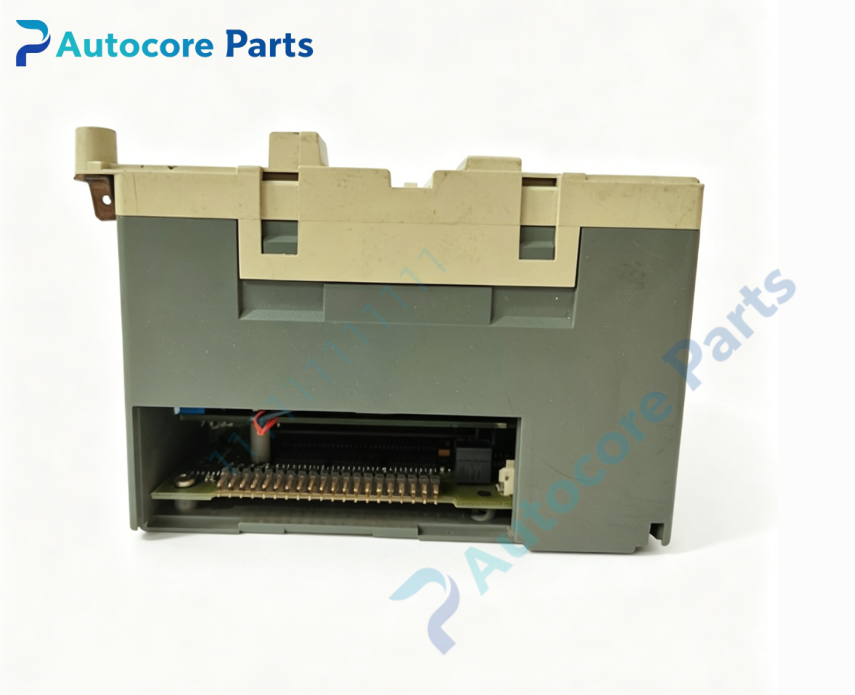

ABB 07KT98C GJR5253100R028 AC31 S90 PLC Integrated Controller Unit

Technical Specifications

Model: 07KT98C

Part Number: GJR5253100R028

Brand: ABB

Product Type: AC31 S90 enhanced integrated PLC controller

Matching System: ABB AC31 automation control system

Power Supply: 24VDC, typical 0.55A

Built‑in I/O: 24DI /16DO /8 configurable DC channels, 8AI,4AO

Analog Signal: Voltage, current, Pt100 thermal resistance signal support

Communication Interface: Dual RS232 serial port, CS31 system bus

Program Standard: IEC61131‑3 programming standard

Memory: Flash program memory, battery‑backed retain memory

High‑speed Counter: Max 50kHz counting frequency

Installation Method: DIN‑rail mounting

Operating Temperature: 0℃ ~ +55℃, non‑condensing

Protection Class: IP20

Weight: 0.78kg

Dimension: 240mm ×140mm ×85mm

Compatible System: Industrial production line, power auxiliary control, process automation equipment

Core Function: As enhanced core integrated controller of AC31 S90 PLC system, execute IEC61131‑3 user control program, complete local I/O signal acquisition and output, realize logic operation, arithmetic processing, high‑speed counting and serial bus communication, realize automatic control of on‑site industrial equipment.

Product Details

The 07KT98C GJR5253100R028 is enhanced integrated controller unit for ABB AC31 S90 PLC system.

This 07KT98C is upgraded variant of 07KT98 series, integrating CPU, digital and analog I/O channels in one compact housing, without additional base unit required. It complies with IEC61131‑3 international programming standard and supports multiple programming languages for industrial automation development.

It collects digital and analog signals from field sensors, executes cyclic logic scanning, and outputs control signals to drive field actuators. Built‑in high‑speed counter supports up to 50kHz pulse input for motion control scenarios.

Equipped with dual RS232 serial interfaces and CS31 system bus, it realizes data exchange with HMI, upper computer and remote I/O stations. Battery‑backed memory keeps key process data during power‑off.

Front‑panel LED indicators display power supply, running status, fault alarm and I/O channel status for fast on‑site troubleshooting.

Standard DIN‑rail installation, convenient for cabinet layout and equipment retrofit.

Widely used in legacy AC31 project renovation, power plant auxiliary control, manufacturing and process industry maintenance projects.

It is important spare hardware for PLC system overhaul, control program debugging and defective 07KT98C controller replacement.
