ABB 086318‑002 Memory Daughter Board

Technical Specifications

Model: 086318‑002

Part Number: 086318‑002

Brand: ABB

Product Type: Memory daughter expansion board

Matching System: ABB HKQCS control system

Memory Type: SRAM

Installation Method: Daughter board plug‑in installation on main board

Operating Temperature: -20℃ ~ +60℃, non‑condensing

Protection Class: IP20

Weight: 0.13kg

Dimension: 208mm × 120mm × 15mm

Compatible System: ABB HKQCS industrial control system

Core Function: Expand system storage capacity, store program data and operating parameters, improve system data processing capacity, support stable operation of complex control logic.

Product Details

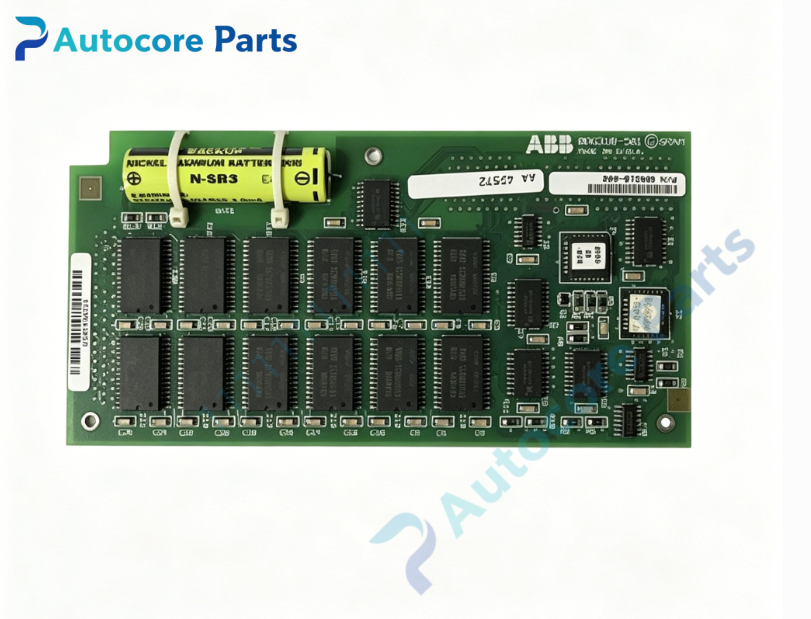

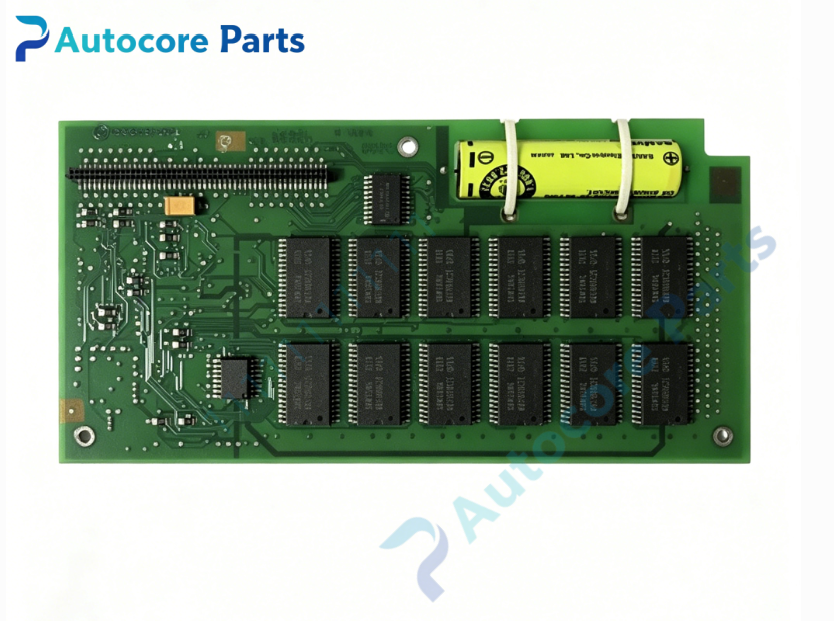

The 086318‑002 is memory daughter PCA board for ABB HKQCS control system.

This 086318‑002 board is plugged onto the main control board as auxiliary memory expansion hardware.

It provides extra SRAM storage space for the host system, which can store more application programs, process data and operating parameters.

It helps to improve the operation efficiency of the control system and meets the memory resource demand of complex industrial control tasks.

Compact daughter‑board structure, simple plug‑in installation without additional wiring.

On‑board circuit supports hardware self‑check function, can detect memory access abnormality and output fault signal.

Industrial‑grade component design, good anti‑interference performance for factory control cabinet environment.

Widely used in papermaking and metallurgy industrial control reconstruction projects.

It is important spare hardware for HKQCS system maintenance, memory function debugging and defective 086318‑002 board replacement.
