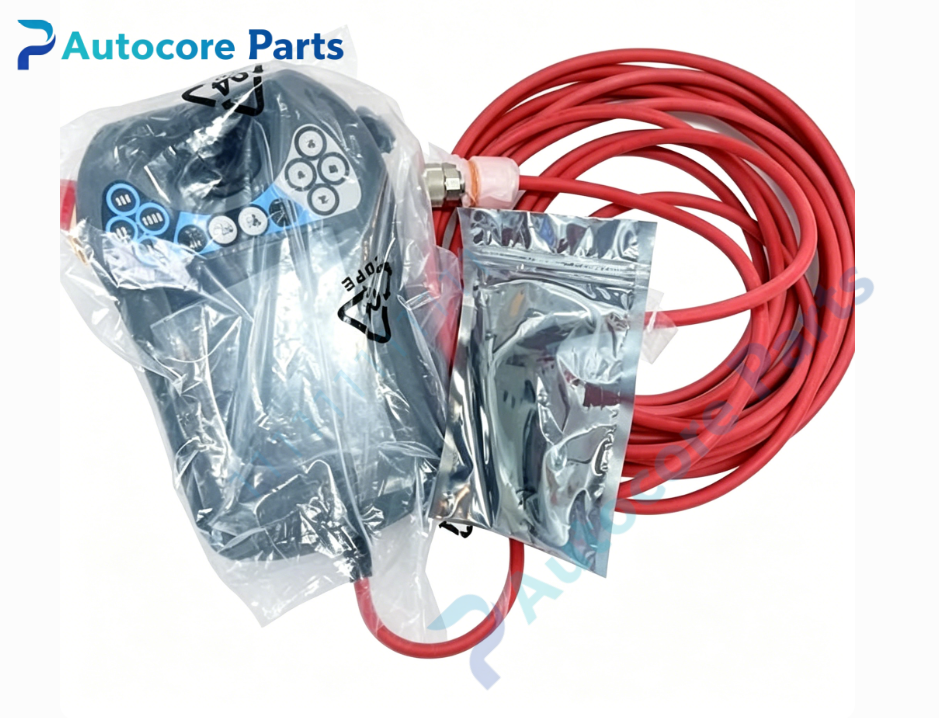

ABB DSQC679 3HAC028357‑001 Teach Pendant

Technical Specifications

Model: DSQC679

Part Number: 3HAC028357‑001

Brand: ABB

Product Type: Robot teach pendant

Matching System: ABB IRC5 series robot controller

Display Screen: Touch LCD display

Operation Mode: Physical keys plus touch screen operation

Communication Mode: Cable connection with robot controller

Protection Class: IP54

Operating Temperature: 0℃ ~ +45℃, non‑condensing

Weight: 1.15kg

Dimension: 240mm × 150mm × 70mm

Compatible System: ABB IRC5 industrial robot control cabinet

Core Function: Realize robot manual jogging, program editing, parameter setting, status monitoring and fault query, complete on‑site debugging and operation control of industrial robot.

Product Details

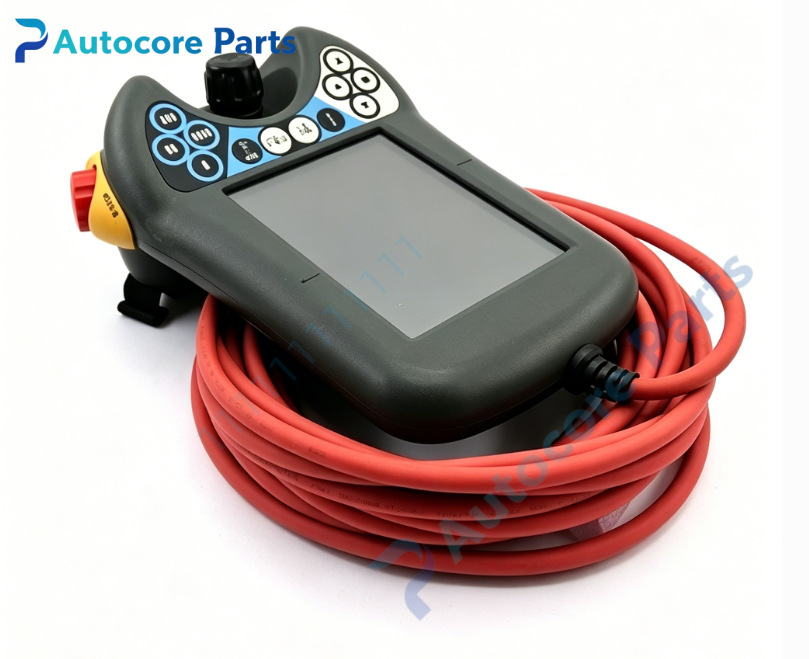

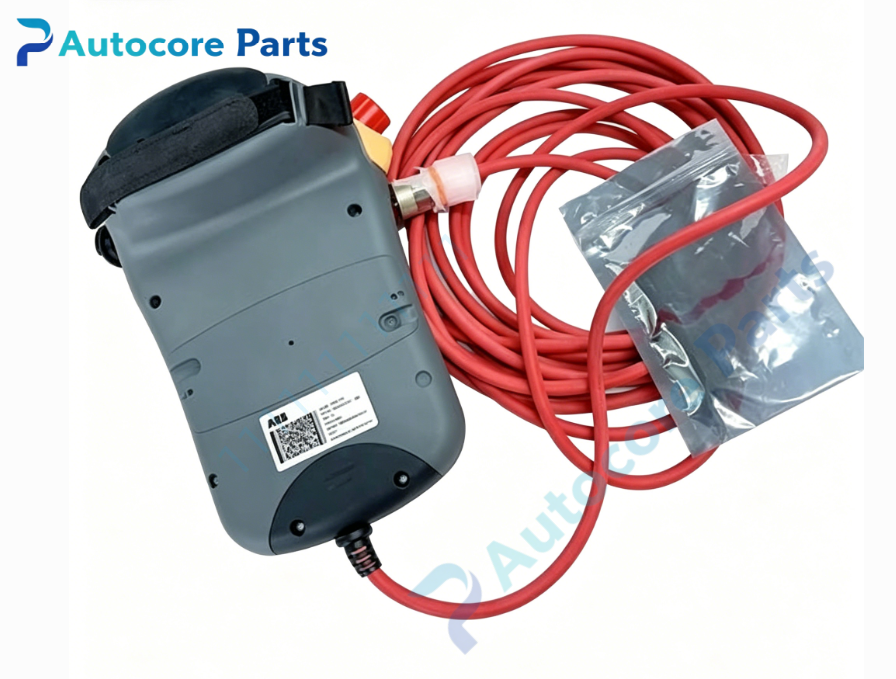

The DSQC679 3HAC028357‑001 is handheld teach pendant for ABB IRC5 industrial robot controller.

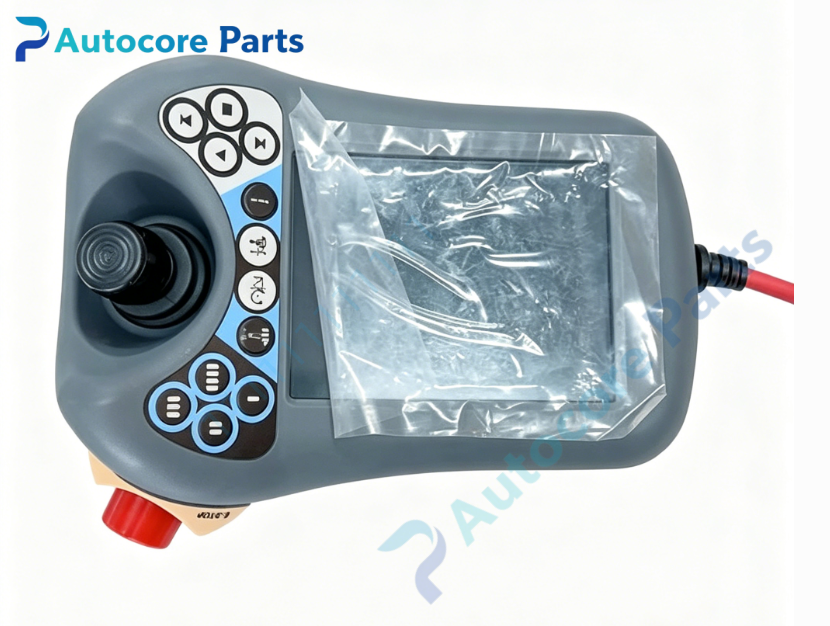

This DSQC679 teach pendant adopts touch screen combined with physical button design, it is the main human‑machine interaction device for robot on‑site operation.

It supports robot point‑to‑point jog movement, robot program editing modification, system parameter configuration and real‑time equipment status viewing.

Equipped with enabling device and emergency stop button, it ensures safe operation during manual debugging process.

Clear LCD touch screen provides intuitive man‑machine interface for operators to view alarm logs and production data.

Solid housing structure adapts to complex workshop on‑site environment.

Connected to robot controller via special cable, easy for handheld operation. Widely applied in automobile manufacturing, logistics handling and welding robot projects.

It is important spare hardware for robot maintenance, program debugging and defective DSQC679 teach pendant replacement.
