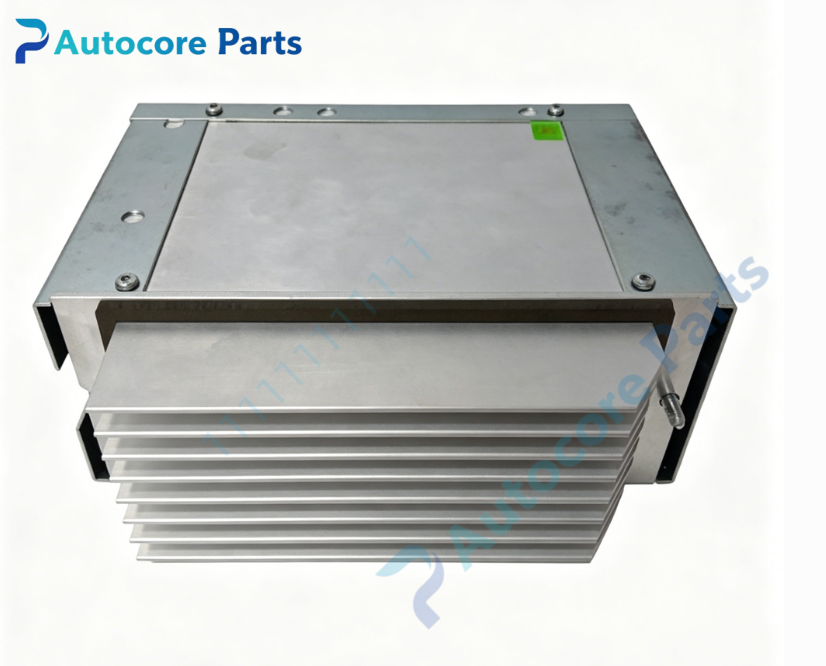

ABB DSQC604 3HAC12928‑1 Power Supply Unit

Technical Specifications

Model: DSQC604

Part Number: 3HAC12928‑1

Brand: ABB

Product Type: Robot controller power supply unit

Matching System: ABB IRC5 robot controller cabinet

Input Voltage: 100‑240V AC wide‑range input

Output Voltage: 24V DC

Output Power: Max 600W

Installation Method: Cabinet internal rack installation

Operating Temperature: 0℃ ~ +55℃, non‑condensing

Protection Class: IP20

Weight: 2.45kg

Dimension: 270mm × 145mm × 85mm

Compatible System: ABB IRC5 series industrial robot controller

Core Function: Convert alternating current into stable 24V DC power supply, provide reliable power for each board and internal components of IRC5 robot controller, guarantee continuous and stable operation of robot control system.

Product Details

The DSQC604 3HAC12928‑1 is standard power supply unit for ABB IRC5 industrial robot controller.

This DSQC604 power supply unit adopts wide‑range AC input design, which can output stable 24V DC power for the whole controller cabinet.

It provides power support for robot main computer, drive unit, communication board and other internal components, ensuring each functional unit works normally.

Built‑in over‑voltage, over‑current and short‑circuit protection functions can effectively avoid component damage caused by abnormal power grid fluctuation.

Front‑panel indicator lights show power input status and fault alarm information.

Perfect protection mechanism can quickly respond to power abnormalities and improve the safety of robot equipment operation.

Compact cabinet‑mounted structure, easy for installation and replacement. Widely used in ABB IRC5 robot production site.

It is important spare hardware for robot cabinet maintenance, power loop inspection and defective DSQC604 unit replacement.
