ABB 086370‑001 ECPSR Precision Control Module

Technical Specifications

Model: 086370‑001

Part Number: ECPSR 086370‑001

Brand: ABB

Product Type: Precision signal processing control module

Matching System: ABB Advant Master DCS control system

Power Supply: Rack backplane ±15VDC power supply

Signal Function: High‑precision signal conditioning, data acquisition processing

Communication Interface: System internal parallel backplane bus

Installation Method: Rack plug‑in card installation

Operating Temperature: ‑20℃ ~ +70℃, non‑condensing

Protection Class: IP20

Weight: 0.48kg

Dimension: 395mm ×122mm ×35mm

Compatible System: Process industry, power plant distributed control cabinet

Core Function: Complete on‑site analog signal conditioning and high‑precision sampling processing, transmit valid measurement data to DCS main controller, provide accurate signal source for closed‑loop regulation and interlock protection logic.

Product Details

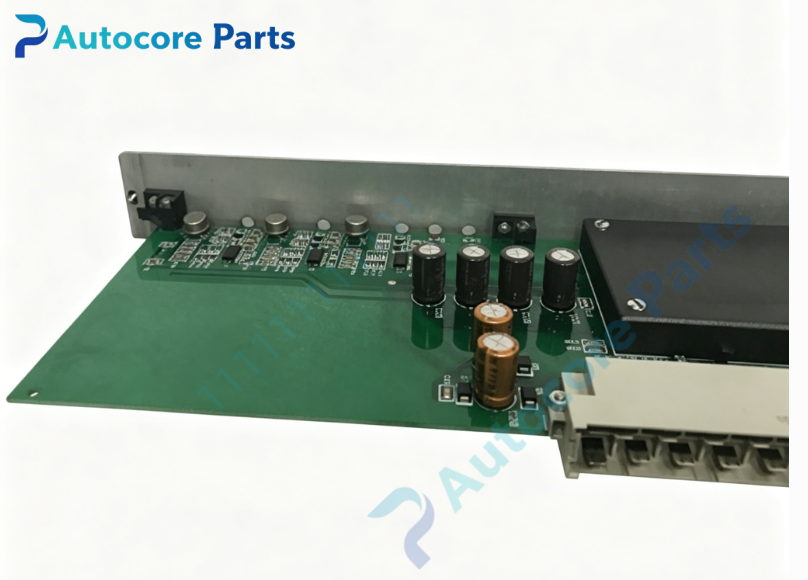

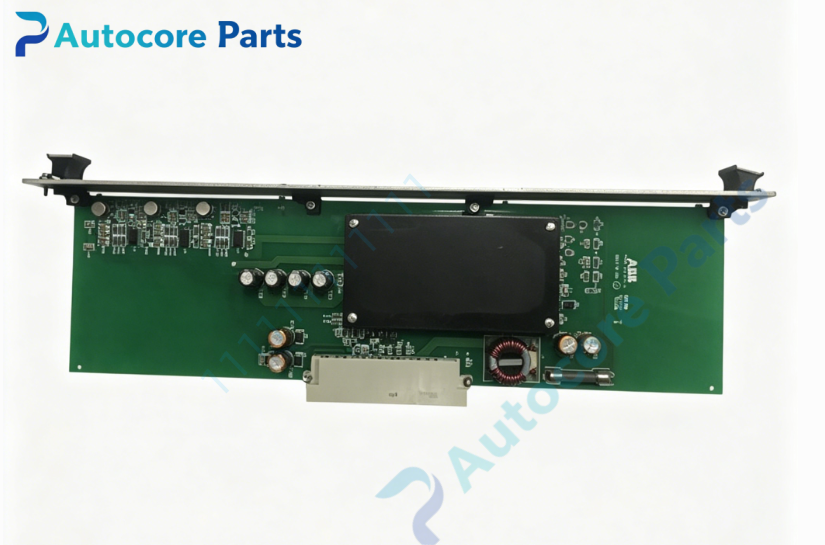

The 086370‑001 ECPSR is precision signal processing module for ABB Advant Master DCS system.

This board serves as important signal conditioning component inside DCS rack. It receives weak field analog signals and completes filtering, amplification and signal adjustment, then transmits processed signals to main controller via backplane bus.

It adopts stable circuit design to restrain industrial‑site noise interference, guarantees signal integrity and measuring accuracy for process control loop.

On‑board hardware monitoring circuit can detect module power‑supply abnormality and signal channel fault, output corresponding fault alarm information.

Conformal coated circuit board enhances moisture‑proof and anti‑dust performance, adapts to harsh industrial operating environment.

Standard rack plug‑in structure supports convenient on‑site maintenance and replacement.

Widely applied in overhaul and renovation projects of legacy Advant Master DCS system in power and petrochemical industry.

It is important spare hardware for DCS cabinet maintenance, signal loop debugging and defective 086370‑001 module replacement.
