ABB PM860K01 3BSE018100R1 Processor Unit Kit

Technical Specifications

Model: PM860K01

Part Number: 3BSE018100R1

Brand: ABB

Product Type: Processor unit complete kit

Matching System: ABB AC800M Controller, 800xA DCS System

Processor: MPC860, 48MHz

Memory: 16MB RAM, Flash memory for firmware storage

Power Supply: 24VDC, typical 180mA

Kit Contents: PM860 CPU main unit, TP830 baseplate, TB850 CEX‑bus terminator, TB807 ModuleBus terminator, backup lithium battery

Communication Interface: ModuleBus, CEX‑bus

Program Standard: IEC61131‑3 programming standard

Installation Method: Rack slot mounting

Operating Temperature: +5℃ ~ +55℃, non‑condensing

Protection Class: IP20

Weight: 0.32kg

Dimension: 115mm ×130mm ×55mm

Compatible System: Power plant DCS, petrochemical, process automation control cabinet

Core Function: Medium‑performance central processing unit for AC800M DCS system, executes IEC61131‑3 control applications, processes I/O data via ModuleBus and CEX‑bus, completes logic operation, regulation calculation and system communication, realizes stable automatic control of industrial field equipment.

Product Details

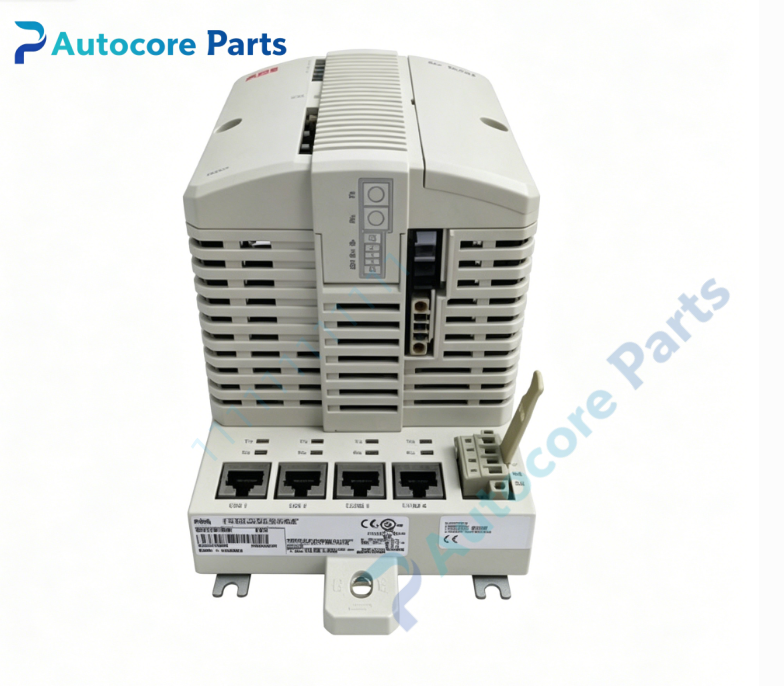

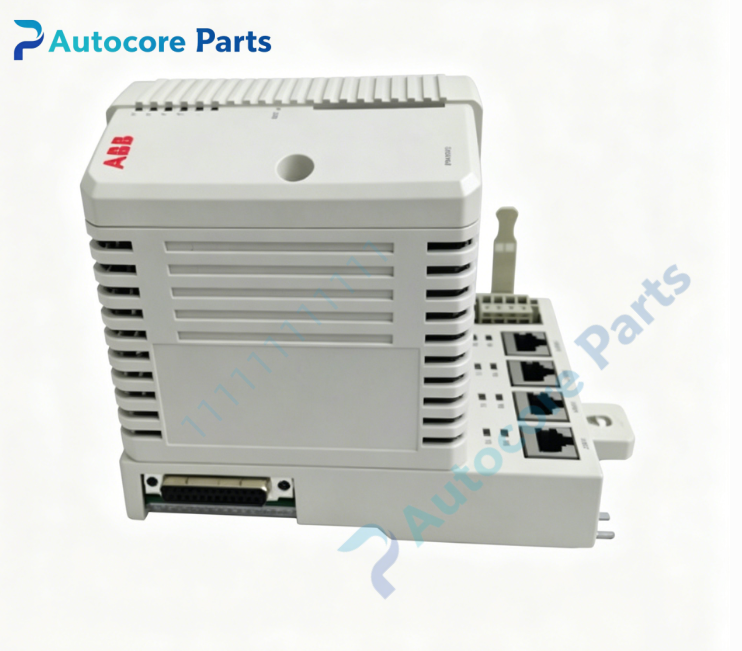

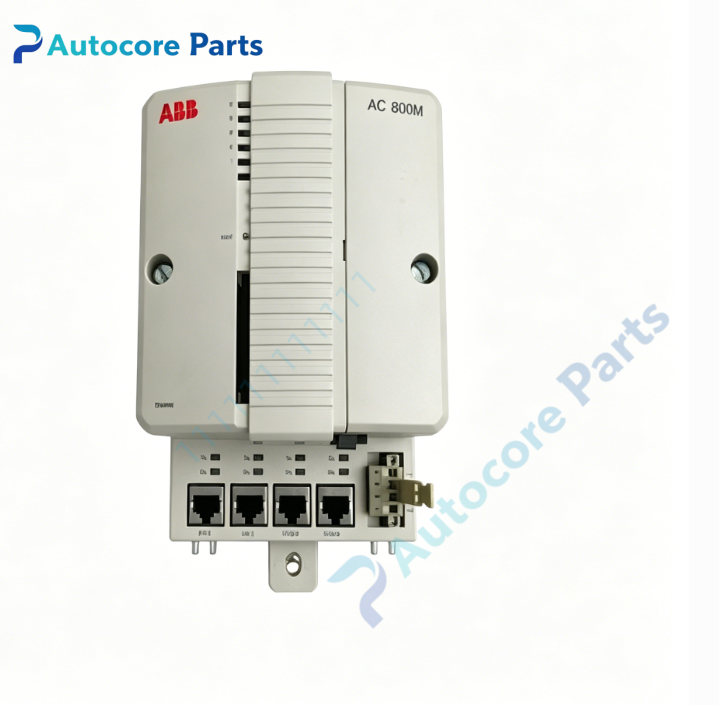

The PM860K01 3BSE018100R1 is complete processor unit kit for ABB AC800M and 800xA DCS control system.

This is a medium‑performance CPU kit, including CPU main board, TP830 baseplate, bus terminators and backup lithium battery, ready‑to‑use after installation without extra accessories purchase. It adopts MPC860 processor, supports IEC61131‑3 international programming standard, runs multiple control applications for process control occasionsABB.

It exchanges data with I/O modules and communication modules through ModuleBus and CEX‑bus backplane, completes logic judgment, closed‑loop regulation arithmetic and signal processing. Backup lithium battery keeps important process data when power is off.

Front‑panel LED indicators show power supply, running status and fault alarm, convenient for on‑site inspection and troubleshooting. No built‑in redundancy function, used for non‑redundant control configurationABB.

Standard rack slot installation, supports hot‑swap function, can be replaced online without system shutdown.

Widely used in power plant DCS, petrochemical, water treatment and other process industry renovation and maintenance projects.

It is important spare hardware for control system overhaul, application program debugging and defective PM860K01 kit replacement.
