Products Description
Technical Specifications
Model: 216EA62
Series: ABB REG216 Generator & Transformer Protection System
Function: High‑speed multi‑channel analog signal acquisition and A/D conversion
Form factor: Standard 6U Eurocard, occupies 2 rack slots for 19‑inch rack mounting
Input channels: 24 analog inputs, sampled simultaneously in groups of six
Sampling frequency: 600 Hz for 50Hz power system; 720 Hz for 60Hz power system
Power supply: 24 VDC internal rack auxiliary power
Communication: Data exchange with main processor board via backplane parallel bus
On‑board indicators: LED status indicators for running and fault alarm
Operating Temperature: 0℃ ~ +60℃
Applicable System: ABB REG216 generator‑transformer protection rack

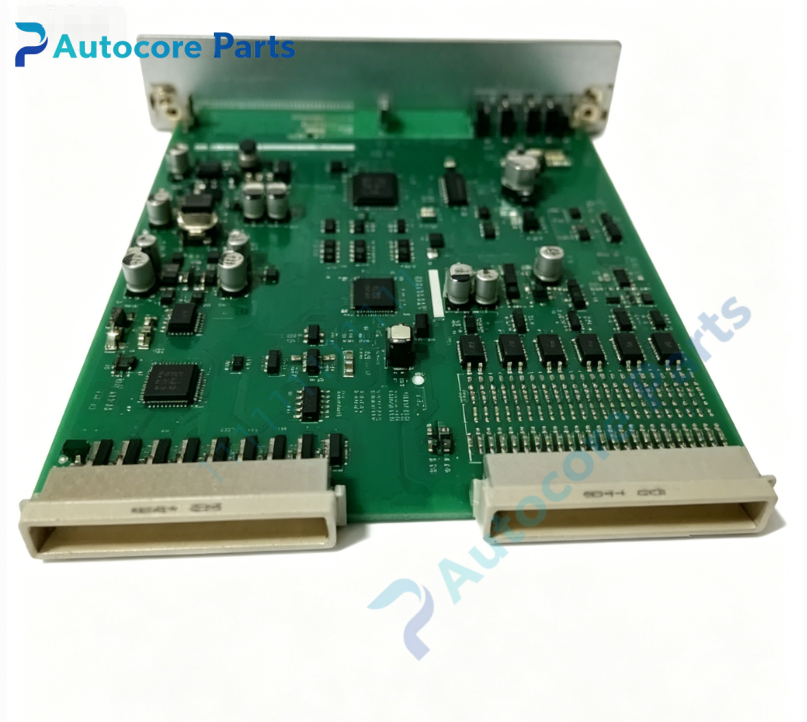

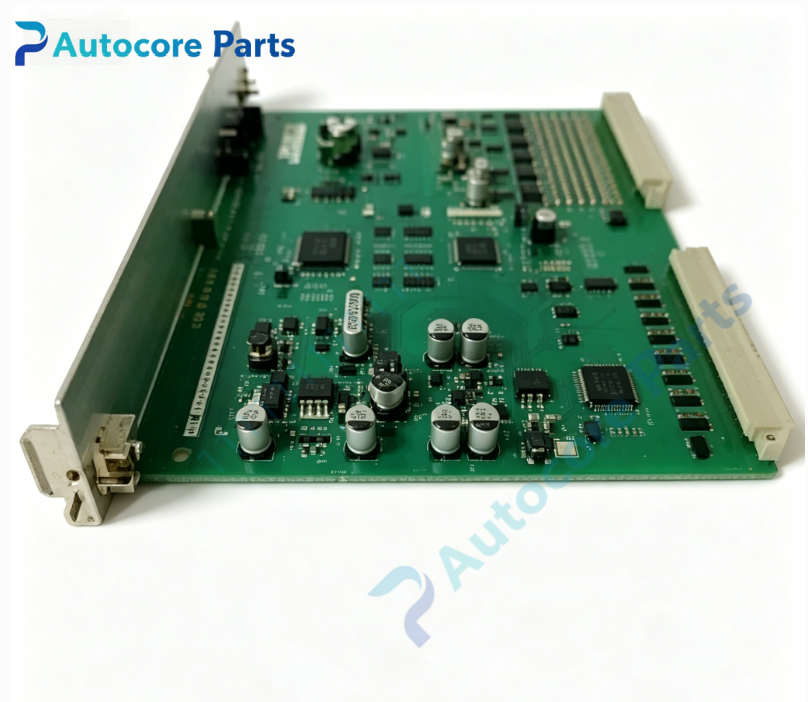

216EA62 is a high‑performance analog input unit for ABB REG216 digital generator‑transformer protection system. It receives AC voltage and current signals from external signal transformers, performs simultaneous multi‑channel sampling and analog‑to‑digital conversion, then transmits digitized measurement data to the main processing board for protection algorithm calculation.
Simultaneous sampling design ensures phase consistency for voltage and current signals, which is critical for differential protection, over‑current protection and other generator protection functions. The module adopts standard plug‑in Eurocard structure for convenient maintenance and on‑site replacement. Front‑panel LED indicators help engineers check operating status and locate module faults quickly.
Commonly used in thermal power and hydropower plant generator and main transformer protection cabinets. Disconnect rack control power before replacement, verify hardware revision compatibility. Suitable for on‑site fault replacement and long‑term spare stocking for existing REG216 systems.
