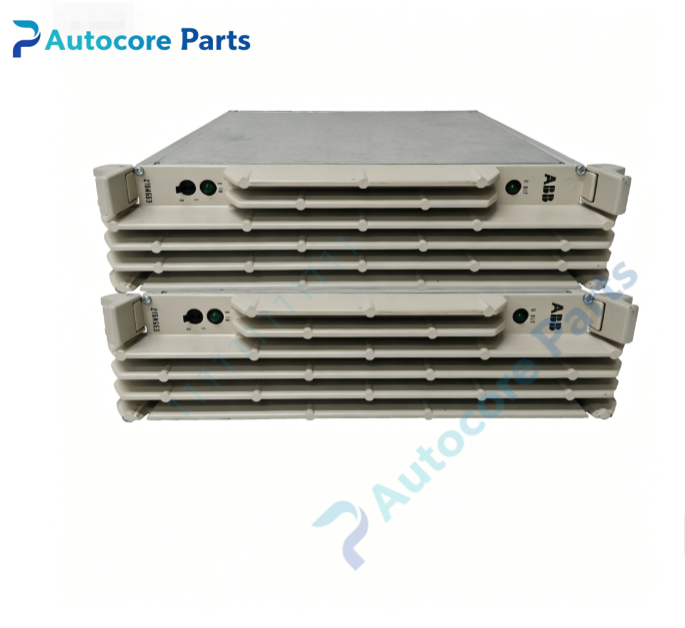

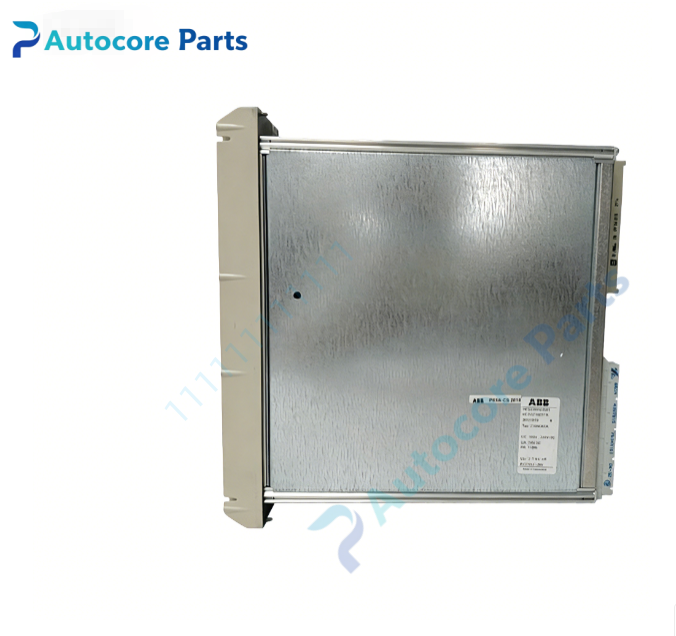

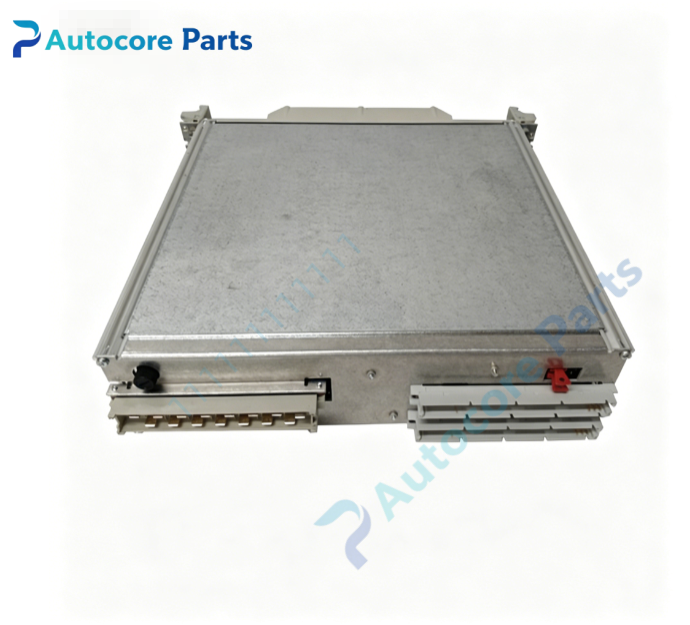

ABB 216NG63A Redundant Power Supply Module

Technical Specifications

Model:216NG63A

Hardware Code:HESG441635R1

Brand:ABB

Product Type:Rack‑mount redundant AC‑DC power supply module

Input Voltage:85‑264VAC,47‑63Hz,auto‑range 110/220VAC

Output Voltage:24VDC

Output Power:120W max

Parallel Mode:Support N+1 redundant parallel operation

Protection:Over‑voltage,over‑current,short‑circuit,over‑temperature protection

Status Indicator:Front‑panel POWER,FAULT LED status indicator

Feature:Hot‑swap supported,parallel current sharing,built‑in fault diagnosis

Matching Baseplate:HESG441635R1

Matching Backplane:HESG216877K

System Compatibility:ABB AC800M controller PM864A/PM865A,Symphony Plus DCS,CI854A remote I/O station

Remark:Legacy EOL spare component;must use matched baseplate and backplane

Module Form:Standard rack plug‑in module

Weight:2.80 kg

Dimension:300 mm×220 mm×80 mm

Protection Grade:IP20

Certification:CE

Working Temperature:‑10℃ ~ +60℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Petrochemical,power plant,paper mill DCS control system,supply power for controller,communication card and I/O modules,N+1 redundant power backup,system maintenance and spare‑part replacement.

Product Details

216NG63A (HESG441635R1) is rack‑mount redundant AC‑DC power supply module for ABB AC800M and Symphony Plus DCS distributed control system. It provides stable 24VDC power for controller,communication modules and I/O station backplane.

Wide‑range AC input supports global industrial power grid. Module supports N+1 parallel redundant operation with automatic current sharing; single power unit failure will not cut off system power supply. Built‑in multi‑level protection including over‑voltage,over‑current,short‑circuit and over‑temperature.

Hot‑swap design allows module replacement without DCS system shutdown. Front‑panel LED indicates power‑on status and fault alarm. Must cooperate with dedicated baseplate HESG441635R1 and backplane HESG216877K for installation. Widely used in petrochemical,power and pulp‑paper DCS racks for critical power backup of control system.

Note:This is legacy EOL spare component,widely used for DCS system spare‑part replacement.
