ABB 3BHE016011R0002 UNS0118a‑Z Excitation Control Module

Technical Specifications

Model:3BHE016011R0002(UNS0118a‑Z)

Brand:ABB

Product Type:Generator excitation main control processing module

Power Supply:24VDC

Interface:Ethernet,RS‑485,multi‑channel terminal I/O interface

Function:Excitation closed‑loop regulation,generator signal sampling,logic processing,fault diagnosis,data upload

Feature:Industrial microprocessor core,multi‑level fault protection,front‑panel LED status indicator

System Compatibility:ABB generator excitation control system

Remark:Legacy EOL spare component;strictly replace according to part number

Module Form:Rack‑mount plug‑in module

Weight:0.50 kg

Dimension:250 mm×150 mm×50 mm

Protection Grade:IP20

Certification:CE

Working Temperature:‑25℃ ~ +70℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Thermal power plant,hydropower station generator excitation system,complete excitation adjustment,state monitoring,fault protection for generator unit,equipment overhaul and spare‑part replacement.

Product Details

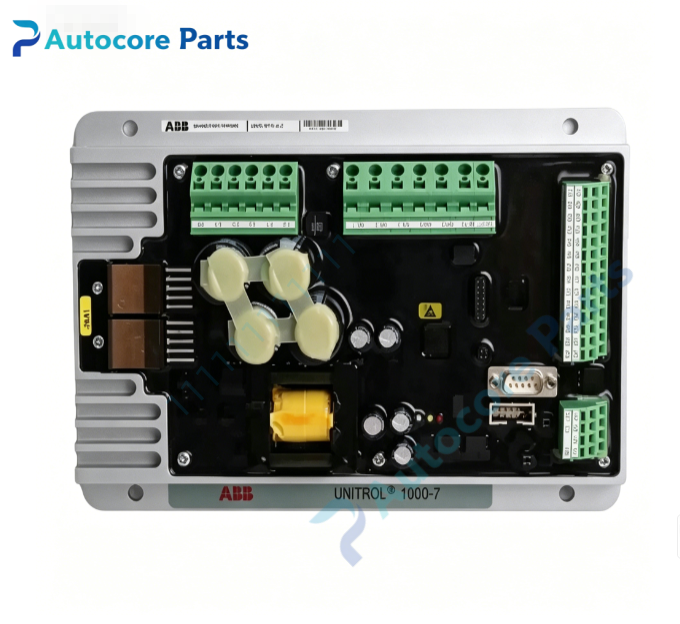

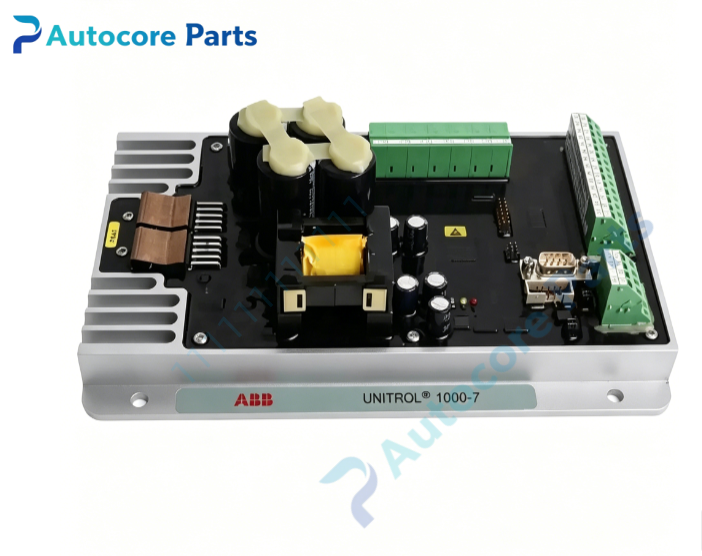

3BHE016011R0002,type UNS0118a‑Z,is ABB dedicated main control processing module for generator excitation system. It undertakes core closed‑loop excitation regulation,collects generator voltage,current and other analog and discrete signals,completes logic operation,fault judgment and protection output.

Equipped with Ethernet and RS‑485 communication interfaces,it realizes data interaction with upper monitoring system. With abundant terminal I/O resources,it can complete field signal access and control output. Front‑panel LED indicators show power‑on,communication and fault status. Module failure will cause excitation system alarm,abnormal excitation output or generator trip. Widely used for overhaul and spare‑part replacement of power‑generation unit excitation equipment.

Note:This is legacy EOL spare component,widely used for power industry spare‑part replacement.
