ABB 3BSE004191R1 PFTL101B‑5.0KN Tension Load Cell

Technical Specifications

Model:3BSE004191R1(PFTL101B‑5.0KN)

Brand:ABB

Product Type:Pressductor tension load cell

Rated Capacity:5.0KN

Working Principle:Pressductor magnetic stress measuring technology

Output:Proportional analog tension signal

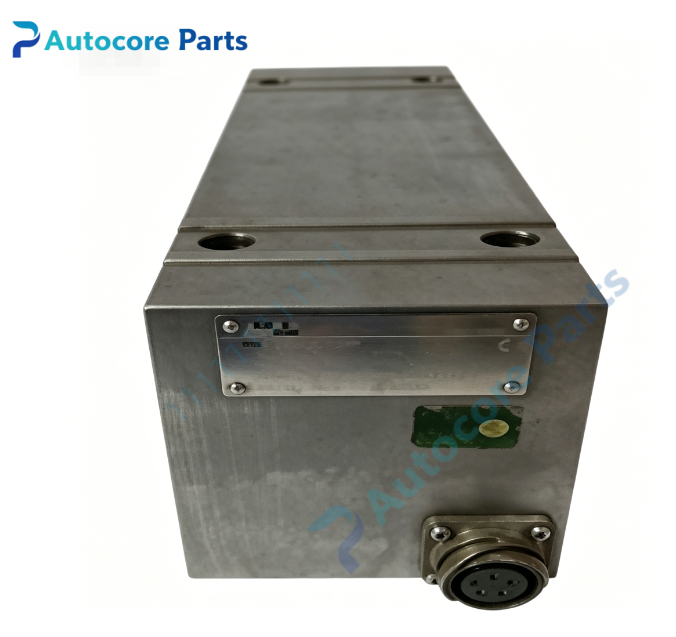

Connector:Multi‑pin circular industrial connector

Feature:High anti‑interference,stable long‑term measurement,stainless steel structure

System Compatibility:ABB paper machine tension control system

Remark:Legacy EOL spare component;strictly replace according to rated force and part number

Module Form:Integrated mechanical‑electrical sensor unit

Weight:3.20 kg

Dimension:310 mm×110 mm×65 mm

Protection Grade:IP65

Certification:CE

Working Temperature:‑10℃ ~ +70℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Papermaking,film,textile industrial production line,real‑time web tension detection for paper‑making machine,film slitting and textile finishing equipment,complete tension closed‑loop control,equipment overhaul and spare‑part replacement.

Product Details

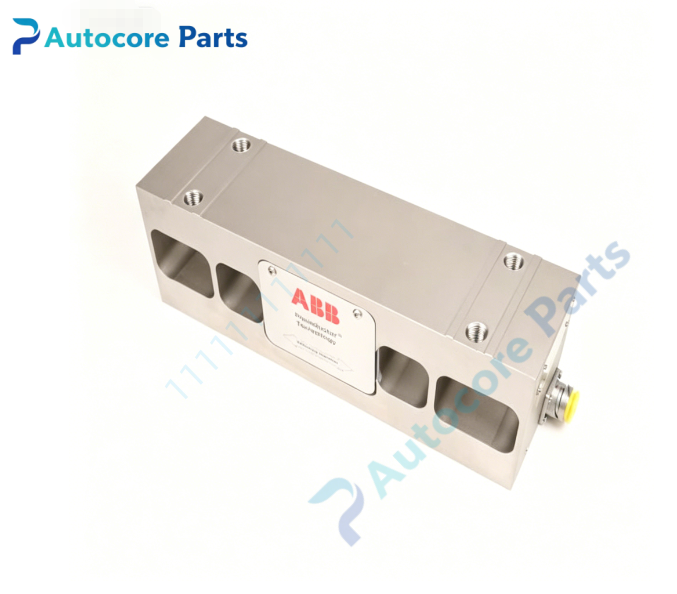

3BSE004191R1,type PFTL101B‑5.0KN,is ABB Pressductor series tension load cell,specially used for web tension measurement of paper‑making machine and film production line.

Adopts unique Pressductor magnetic stress technology,converts mechanical tension force into proportional analog signal,transmits to upper tension controller to realize closed‑loop tension adjustment. Stainless steel mechanical body adapts to harsh workshop environment. Multi‑pin circular connector for signal wiring. Sensor damage will cause tension value deviation,unstable web running and web break accident. Widely used for paper‑making,film,textile equipment maintenance and spare‑part replacement.

Note:This is legacy EOL spare component,widely used for process industry spare‑part replacement.
