ABB 3BSE005461R1 DSPC174 Memory Processor Board

Technical Specifications

Model:3BSE005461R1(DSPC174)

Brand:ABB

Product Type:Rack‑mount memory processor board

System Compatibility:ABB Master System DCS control rack

Power Supply:24VDC(19.2‑30VDC)

Power Consumption:≤12W

Interface:Backplane bus connector,RS232 serial port,front‑panel status LED indicator

Function:Application program storage,process data buffering,backplane bus data interaction,logic auxiliary processing

Feature:Multi‑block memory chip structure,plug‑in rack installation,on‑board fault diagnosis

Remark:Legacy EOL spare component;must match rack hardware version

Module Form:Rack plug‑in board

Weight:1.10 kg

Dimension:242 mm×112 mm×25 mm

Protection Grade:IP20

Certification:CE

Working Temperature:‑10℃ ~ +60℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Petrochemical,power plant,paper‑making industry,used for ABB Master System DCS rack program storage and data processing,system overhaul and spare‑part replacement.

Product Details

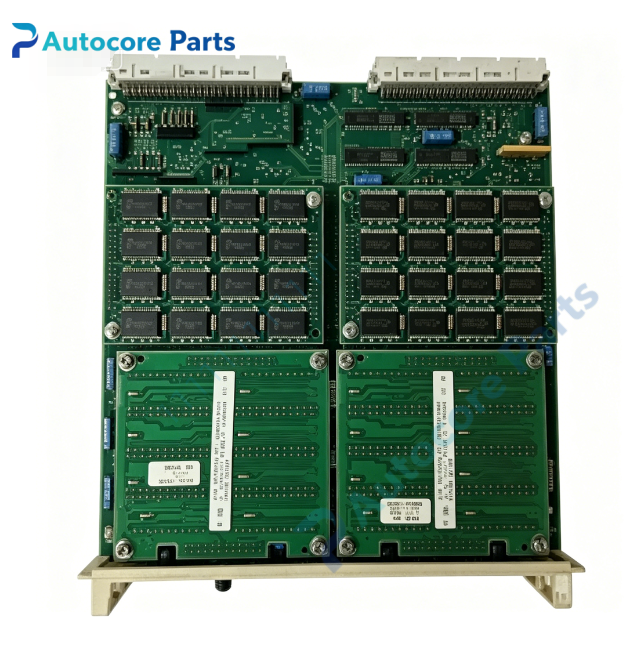

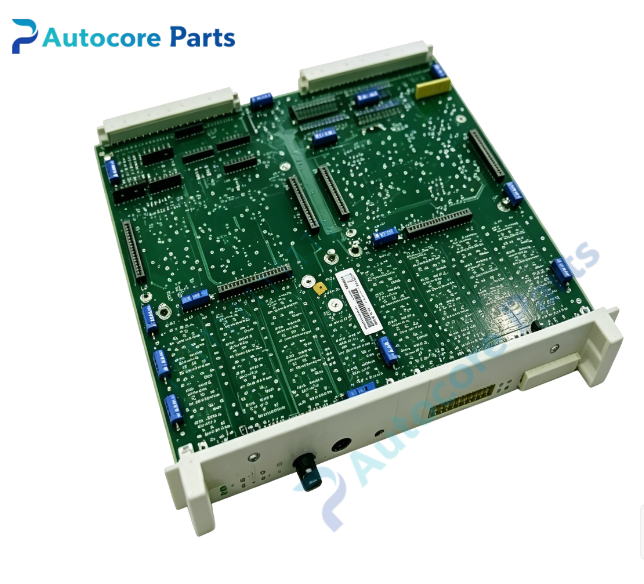

3BSE005461R1,type DSPC174,is memory processor board for ABB Master System DCS control rack. It stores user application programs and caches real‑time process data,completes high‑speed data interaction through rack backplane bus,assists main controller for logic calculation.

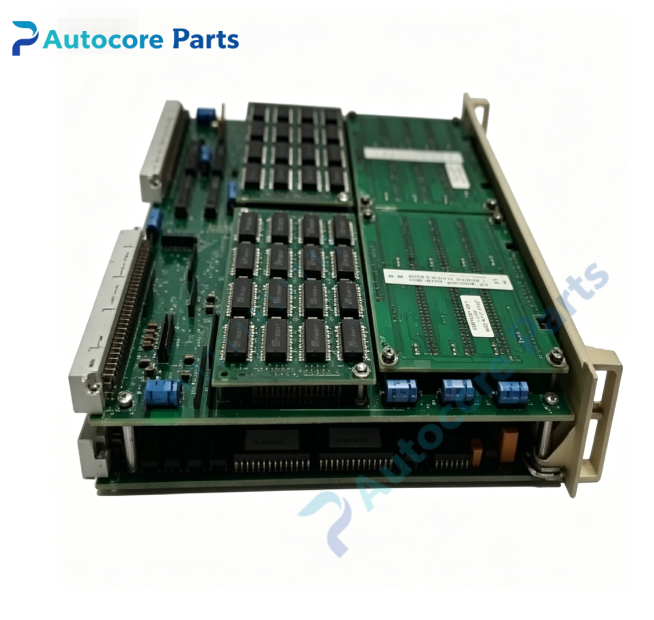

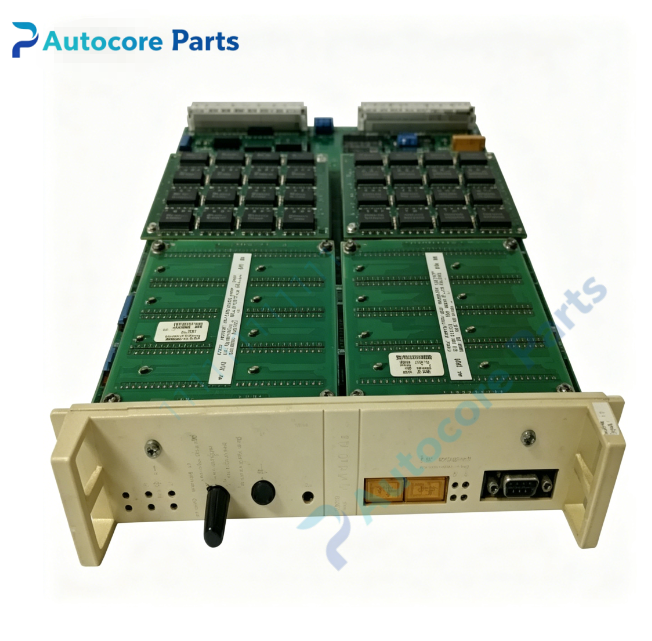

Adopts multi‑group on‑board memory chip layout,front‑panel LED reflects power‑on,running and fault state. Rack plug‑in structure for convenient disassembly and maintenance. Board failure will cause program loss,system startup failure or bus communication abnormality. Widely used for old‑generation Master System DCS on‑site overhaul and spare‑part replacement.

Note:This is legacy EOL spare component,widely used for DCS system spare‑part replacement.
