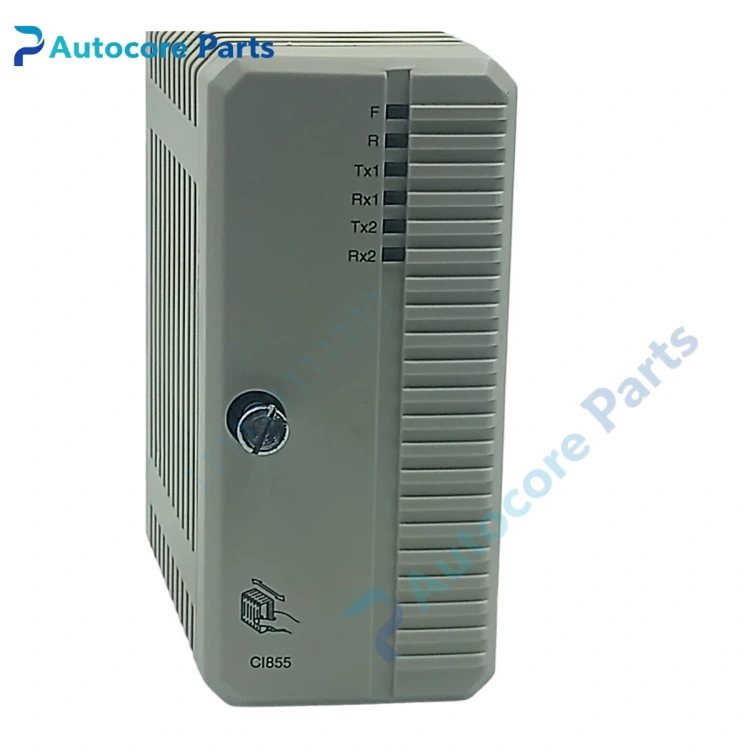

ABB 3BSE018133R1 CI855 Communication Module

Feature & Principle

It is ABB CI855 communication interface module, which supports MasterBus 300 protocol. It realizes data interconnection between AC800M controller and legacy Advant OCS system, supports dual-channel bus redundancy. It adopts hot-swap design, can be replaced without powering off the rack, stably completes peer-to-peer data exchange in DCS process control system.

Specifications

Model: 3BSE018133R1 (CI855) Brand: ABB Protocol: MasterBus 300 (MB300) Applicable controller: AC 800M Communication rate: 10 Mbit/s Hot swap: Yes Baseplate: TP853 Application: Petrochemical, power plant 800xA DCS cabinet Certification: CE

Components & Diagnostics

Communication processing chip, dual bus interface circuit, backplane CEX bus interface, status LED, terminal circuit. Common faults: communication offline, bus signal loss, module cannot be identified, interface circuit damage.

Product Brief

3BSE018133R1 communication module, ABB AC800M MB300 bus spare widely used for DCS control cabinet overhaul and replacement.
