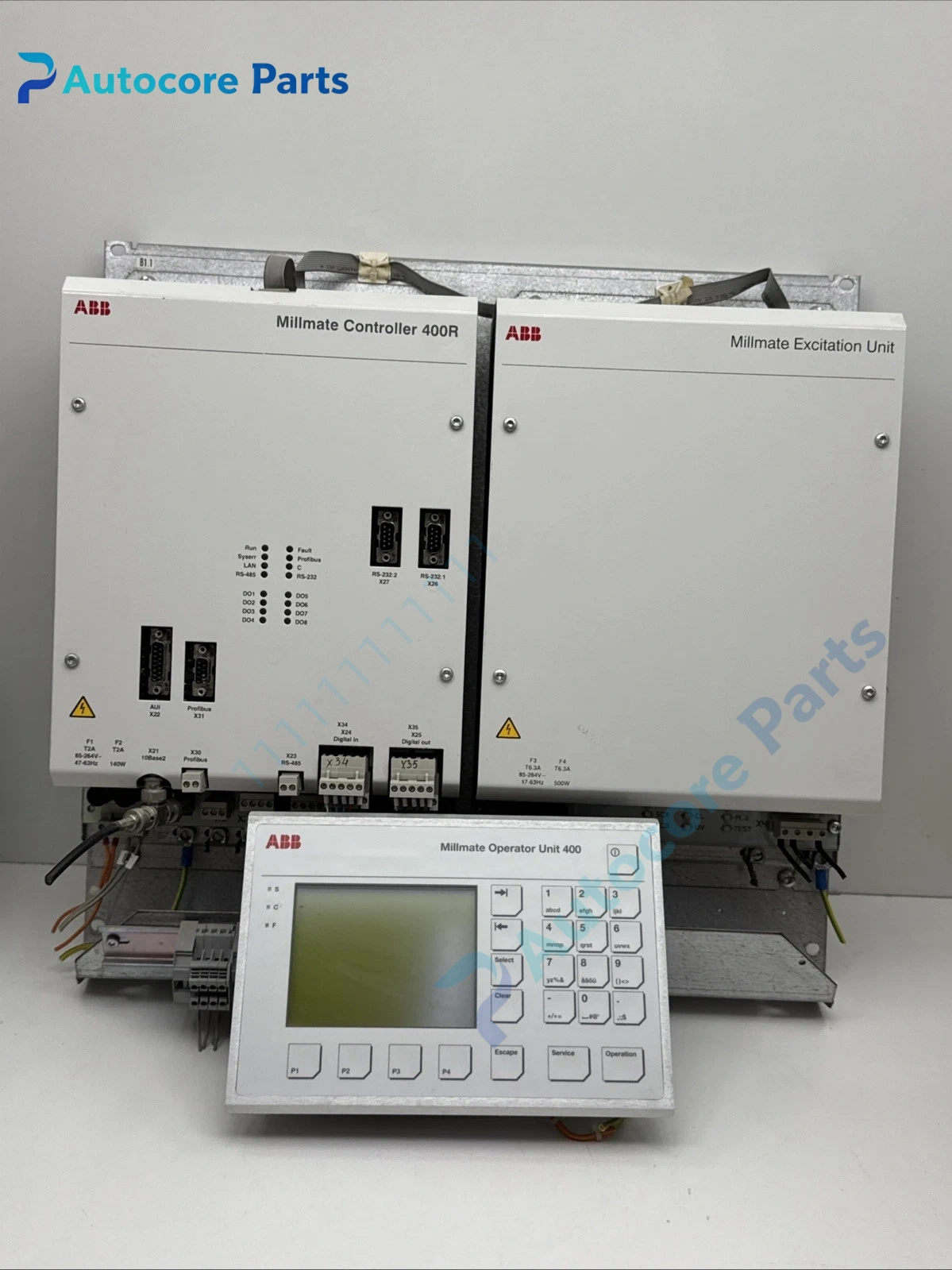

ABB 3BSE024388R3 Millmate 400R Force Excitation Controller Unit

Module Feature

3BSE024388R3 is ABB Millmate 400R series rolling force excitation unit, part number alias PFXA401F, specially developed for metallurgical rolling mill stands. It provides stable, high-precision excitation voltage to strain gauge type rolling force load cells, collects and conditions load cell feedback signals, calculates real-time roll force value and transmits data to rolling control system. It has strong anti-vibration and anti-electromagnetic interference performance, adapts to the harsh environment of hot rolling and cold rolling workshops. It is the core measuring component for strip thickness closed-loop control, roll force overload protection and rolling process data recording.

Working principle

The module outputs constant excitation power to the strain gauge load cell installed on the rolling mill housing. When rolling force changes, the load cell generates tiny millivolt differential signal. The internal high-precision amplifier and AD circuit convert the signal into digital quantity. After calibration and temperature compensation, the rolling force value is uploaded to the mill main control system, which adjusts roll gap or roll speed to maintain strip target thickness.

Onboard components

Excitation power source circuit, high precision signal amplifier, A/D sampling chip, industrial communication circuit, terminal block, status indicator circuit, metal enclosed housing.

LED indicators

Front panel LED indicators for power, running, communication and fault status.

Hardware self‑diagnosis

Power-on self-check covers excitation voltage abnormality, load cell cable open/short circuit, signal out-of-range, communication interruption and module over-temperature. Fault codes and force records are saved inside the module.

Programming software

Use ABB Millmate configuration software for load cell calibration, force range setting, filter parameter adjustment and fault diagnosis.

Electrical & Process Parameters

Model:3BSE024388R3 Brand:ABB Device type:Rolling Force Excitation Controller Series:Millmate 400R Alias:PFXA401F Function:Excitation supply and signal processing for rolling mill load cell, roll force measurement

Mechanical & Structure

Mounting:Cabinet rail mounting Protection class:IP20 Housing:Metal enclosed cabinet

Environmental

Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:CE compliant Status:ABB original rolling mill measurement spare module

Installation

Install the module in the rolling mill control cabinet. Connect excitation and signal cables to the corresponding load cell according to wiring drawing. Connect communication cable to the rolling PLC system. Complete load cell zero calibration and span calibration before rolling test run.

Interface

Load cell excitation / signal terminal, communication interface, 24V auxiliary power terminal.

Diagnostic

Force reading zero:Excitation circuit failure, load cell cable broken. Force value drift:Sensor aging, excitation voltage unstable or temperature compensation parameter offset. Communication offline:Communication cable fault or station address mismatch.

Product Brief

ABB 3BSE024388R3 Millmate 400R rolling force excitation unit PFXA401F, supplies excitation for rolling mill load cells, collects and processes force signals, used for steel mill roll force monitoring and strip thickness closed-loop control.
