Technical Specifications

Model:57310001‑LM(DSCS131)

Brand:ABB

Product Type:MasterFieldbus main fieldbus communication module

Bus Protocol:ABB proprietary MasterBus300

Data Rate:2Mbps

Power Supply:Power supplied via rack backplane(+5V,+15V,‑15V)

Communication Interface:MasterBus300 bus interface,rack backplane bus connector

Redundancy:Support communication redundancy function

Indicator:Power,communication,running,fault LED status indicators

Installation:Rack plug‑in,usually installed in the left‑most slot of S100 I/O rack

System Compatibility:ABB Advant Master,Advant OCS,S100 I/O DCS control system

Remark:Legacy EOL spare component;confirm rack slot position and bus redundancy configuration before replacement

Module Form:Rack‑mount plug‑in PCB board

Weight:0.46 kg

Dimension:321 mm×229 mm×20 mm

Protection Grade:IP20

Certification:CE

Working Temperature:‑10℃ ~ +60℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Power plant,petrochemical,papermaking industry,serves as S100 I/O rack main bus interface,realizes high‑speed data interaction between I/O rack and Advant Master controller,supports redundant bus transmission,system overhaul and spare‑part replacement.

Product Details

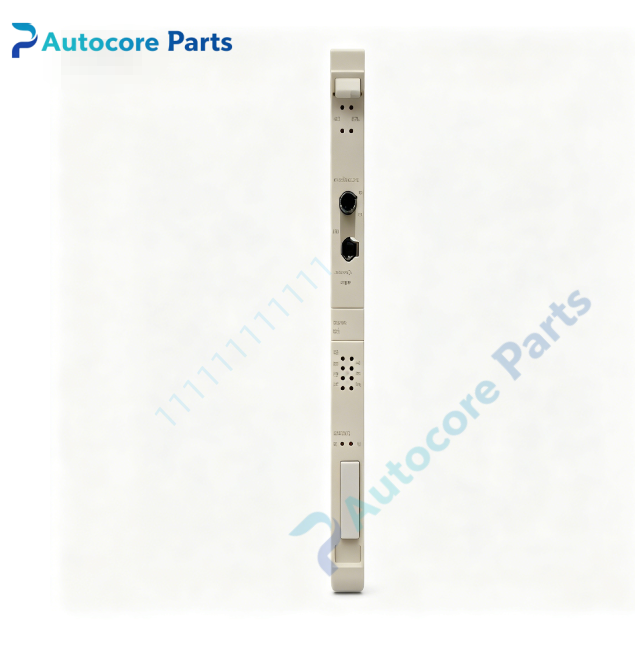

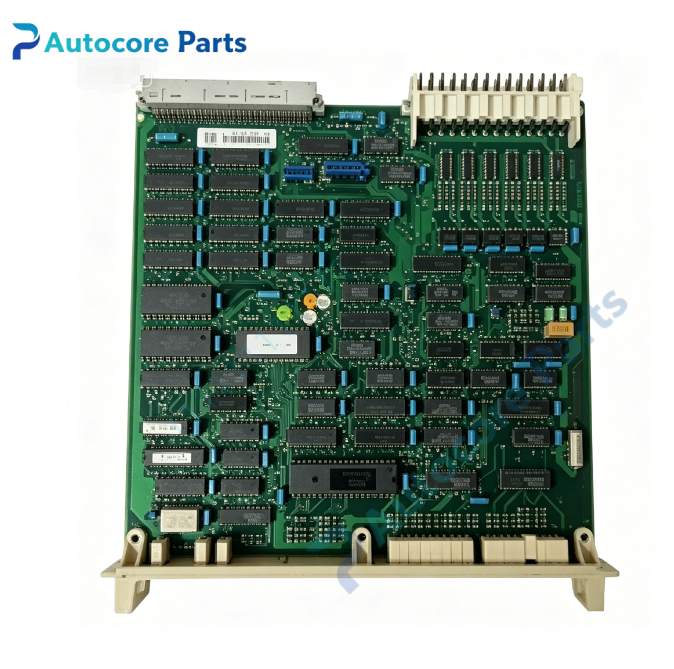

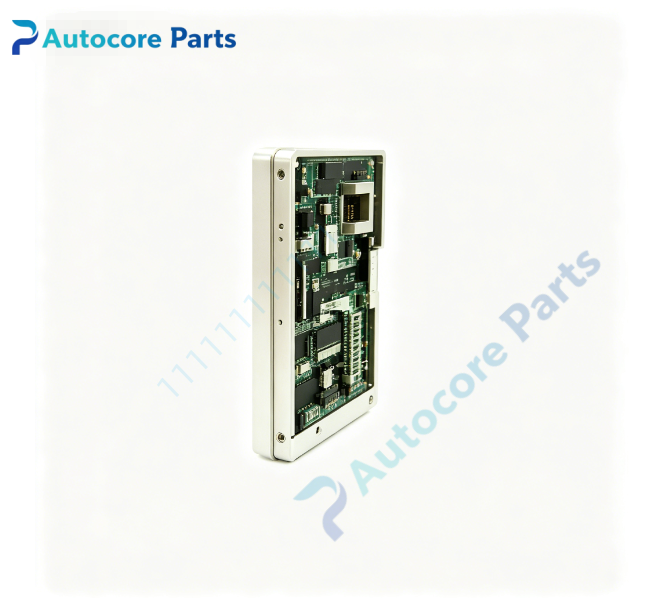

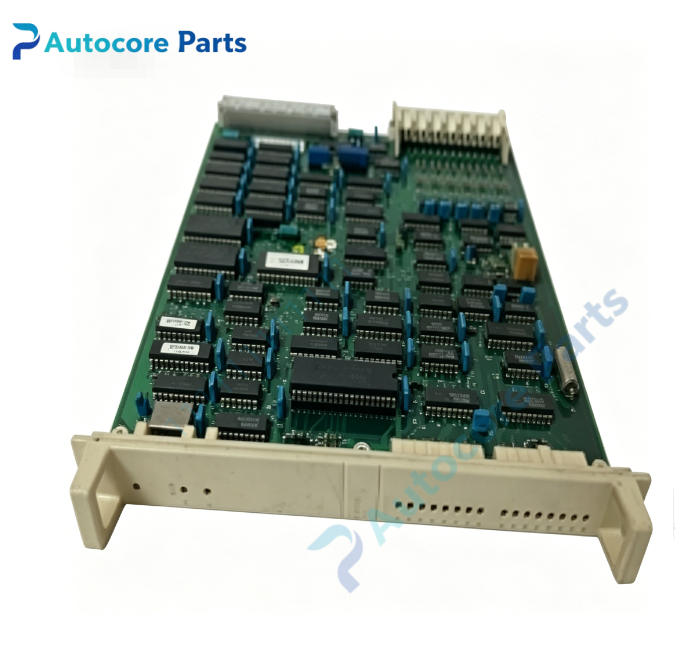

57310001‑LM,type DSCS131,is ABB Advant Master DCS system MasterFieldbus main communication module.

It adopts ABB proprietary MasterBus300 protocol,acts as the communication gateway of S100 I/O rack,completes data exchange between I/O modules and upper‑level controller;supports communication redundancy to improve system reliability. Generally installed in the left‑most slot of S100 I/O rack. Module failure will cause S100 I/O rack offline,all I/O signal loss of the whole rack. Widely used for old‑generation Advant Master DCS site maintenance and spare‑part replacement.

Note:This is legacy EOL spare component,widely used for process industry spare‑part replacement.
